Hikrobot MV-DB500S-V RGB-D Smart 3D Camera (Volume Measurement)
Model MV-DB500S-VHikrobot
- InterfaceGigabit Ethernet (1000 Mbit/s)
- Speed12 fps @ high precision mode
- TypeLogistics / volume
- Near field of view580 mm × 470 mm
$8,509.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 2-3 weeks
1.5 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-DB500S-V RGB-D Smart 3D Camera. High performance sensor and high efficient laser module to output millimeter-scale depth images. Built-in deep learning algorithm related with volume measurement and supports direct output of volume data.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-DB500S-V |
|---|---|
| Brand | Hikrobot |
| Clearance distance (CD) | 500 mm |
| Measurement range (MR) | 1500 mm |
| Depth image detection accuracy | X, Y: 5 mm @ 1 m; 10 mm @ 2 m; Z: 5 mm @ 1 m; 10 mm @ 2 m |
| Data type | Original image (mono and color images), depth image, volume information |
| Laser safety class | Class 1 |
Optics
| Near field of view | 580 mm × 470 mm |
|---|---|
| Far field of view | 2400 mm × 1800 mm |
Sensor and imaging
| Scan frame rate | 12 fps @ high precision mode |
|---|
Interfaces and I/O
| Data interface | Gigabit Ethernet (1000 Mbit/s) |
|---|---|
| Digital I/O | 12-pin M12 connector provides power supply and I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7) |
| Client software | HiViewer |
Light
| Color image detection accuracy | X, Y: 2.6 mm @ 1 m; 5.5 mm @ 2 m |
|---|
Environment and compliance
| Ingress protection | IP65 |
|---|---|
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Certification | CE, RoHS, KC |
Computing
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 |
|---|
Electrical
| Power supply | 12 VDC to 24 VDC |
|---|---|
| Power consumption | Typ. 9 W @ 24 VDC |
Mechanical

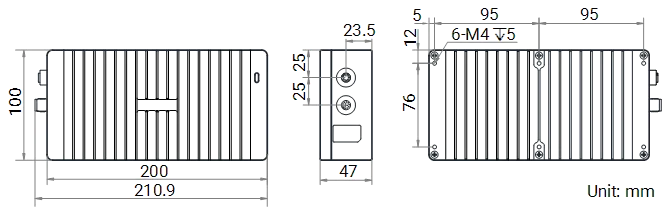

| Dimension | 200 mm × 47 mm × 100 mm (7.9" × 1.9" × 3.9") |
|---|---|
| Weight | Approx. 1 kg (2.2 lb.) |
| Shipping weight (estimated) | 1.50 kg |
