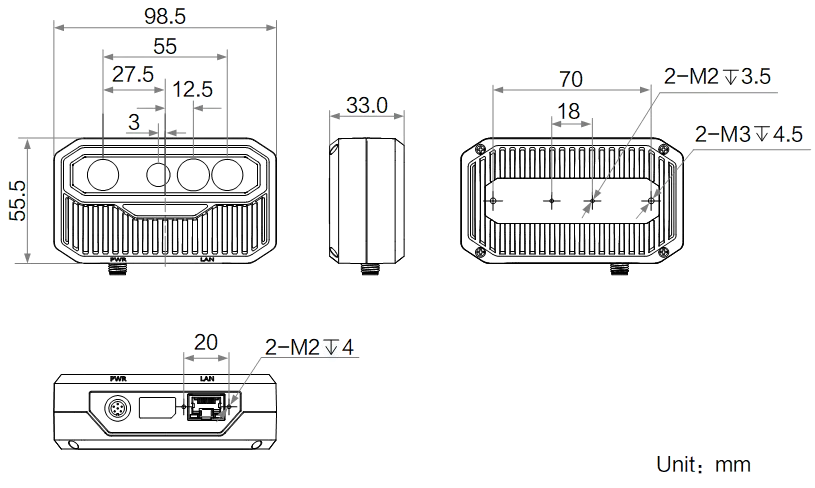

  • MV-DB300S-V dimensions (mm)

3D sensors

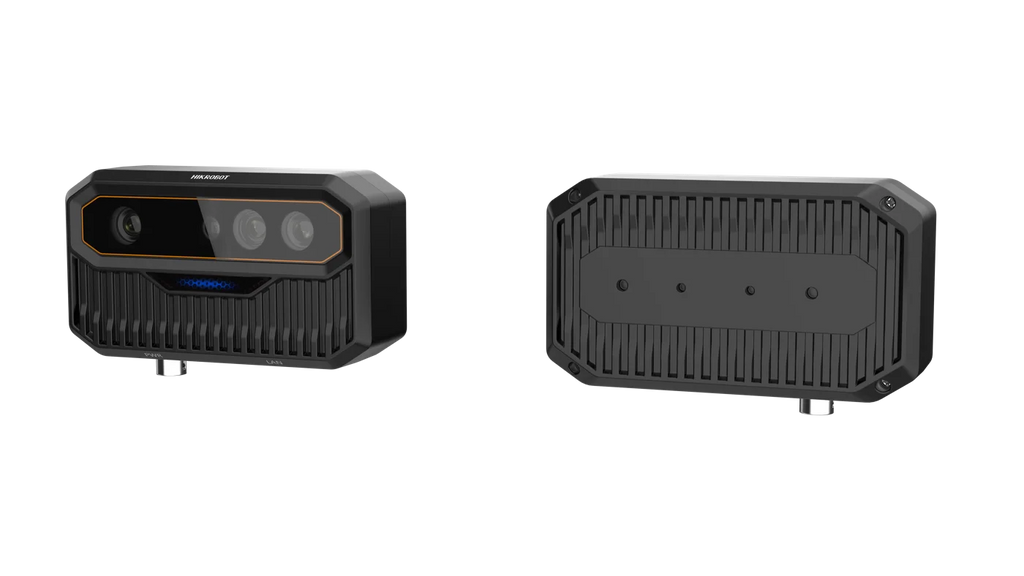

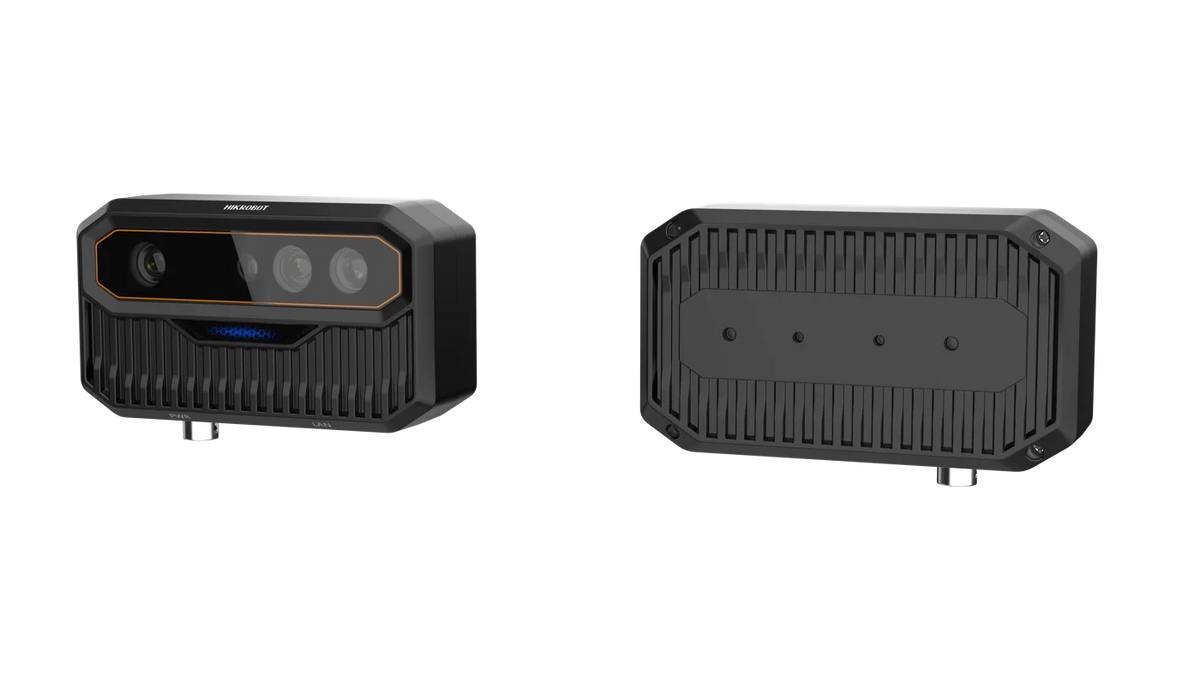

Hikrobot MV-DB300S-V Single-DOE speckle structured-light stereo camera (small-item volume measurement)

Model MV-DB300S-VHikrobot

  • InterfaceGigabit Ethernet(1000Mbit/s)
  • TypeLogistics / volume
  • Near field of view325 mm × 320 mm
  • Far field of view1850 mm × 1600 mm
$1,009.00
Quote

Quoted price: add to quote for lead time and volume pricing.

End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.

Ships in 2-3 weeks

0.38 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-DB300S-V Single-DOE speckle structured-light stereo camera. High-performance sensor with an energy-efficient laser module delivers stable, efficient depth maps with millimeter accuracy AI hardware core supports custom deep-learning models

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelMV-DB300S-V
BrandHikrobot
Clearance distance (CD)300 mm
Measurement range (MR)1200 mm
Depth image detection accuracyX, Y:5 mm@1 m; 10 mm@2 m; Z:10 mm@1 m; 20 mm@2 m
Data typeRaw image (mono + color), Rectified images (left/right), Depth map
Laser safety classClass 1

Optics

Near field of view325 mm × 320 mm
Far field of view1850 mm × 1600 mm

Sensor and imaging

Scan frame rateDepth map: max 17 fps @ 1280 × 1024; RGB image: max 17 fps @ 1536 × 1280; Depth + RGBD synchronized output: max 14 fps @ 1280 × 1024

Interfaces and I/O

Data interfaceGigabit Ethernet(1000Mbit/s)
Digital I/O6-pin M8 circular connector provides power and I/O, 1 opto-isolated input (Line 0), 1 opto-isolated output (Line 1), 1 configurable I/O (Line 2)
Client softwareHiViewer

Light

Color image detection accuracyX, Y:2.6 mm@1 m; 5.5 mm@ 2 m

Environment and compliance

Ingress protectionIP40
TemperatureWorking temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% to 85% RH (non-condensing)

Computing

Operating systemWindows 7/10/11 32/64bits

Electrical

Power supply12 ~ 24 VDC
Power consumption5.5 W@12 VDC

Mechanical

Dimension98.5 mm × 55.5 mm × 33 mm
WeightApprox. 200 g
Shipping weight (estimated)0.38 kg
