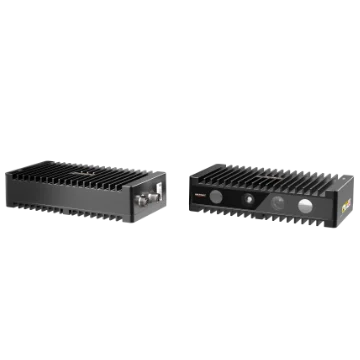

Hikrobot MV-DB500S-S RGB-D Smart 3D Camera (Singulator)

Model MV-DB500S-SHikrobot

  • InterfaceGigabit Ethernet
  • Speed25 fps@ singulation mode
  • TypeLogistics / volume
  • Near field of view580 mm × 470 mm
$3,249.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 2-3 weeks

1.5 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-DB500S-S RGB-D Smart 3D Camera. Adopts built-in deep learning algorithm to provide accurate instance segmentation and positioning results. High-efficient laser module and accurate exposure synchronization provide stable performance and wider dynamic range.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelMV-DB500S-S
BrandHikrobot
Clearance distance (CD)500 mm
Measurement range (MR)1500 mm
Object detection range50 mm × 50 mm × 10 mm to 1000 mm × 1000 mm × 1000 mm
Depth image detection accuracyX, Y: 5 mm@ 1 m; 10 mm@ 2 m; Z: 5 mm@ 1 m; 10 mm@ 2 m
Data typeOriginal image (mono and color images), depth image, object posture information
Laser safety classClass 1

Optics

Near field of view580 mm × 470 mm
Far field of view2500 mm × 1800 mm

Sensor and imaging

Scan frame rate25 fps@ singulation mode

Interfaces and I/O

Data interfaceGigabit Ethernet
Digital I/O12-pin M12 interface provides I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7)
Client softwarerobotic parcel-feeding system, HiViewer

Light

Color image detection accuracyX, Y: 2.6 mm@ 1 m; 5.5 mm@ 2 m

Environment and compliance

Ingress protectionIP65
TemperatureWorking temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 85% RH, non-condensing
CertificationKC

Computing

Operating system32/64-bit Windows 7/10

Electrical

Power supply12 VDC to 24 VDC
Power consumptionAvg. 5.5 W@24 VDC

Mechanical

Dimension200 mm × 47 mm × 100 mm (7.9" × 1.9" × 3.9")
WeightApprox. 1 kg (2.2 lb.)
Shipping weight (estimated)1.50 kg
