3D sensors

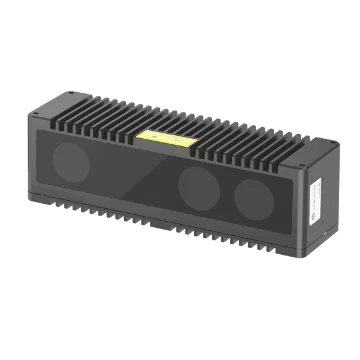

Hikrobot MV-DB700S-C RGB-D smart stereo camera (low-clearance EDP)
Model MV-DB700S-CHikrobot
- InterfaceGigabit Ethernet(1000Mbit/s)
- Speed23 fps@EDP mode
- TypeLogistics / volume
- Near field of view590 mm × 470 mm
$3,229.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 2-3 weeks
1.08 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-DB700S-C RGB-D smart stereo camera. Built-in deep-learning and 3D image processing algorithms for more accurate results Extra-wide field of view for applications with limited working distance, such as cross-belt sorter lower decks
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-DB700S-C |
|---|---|
| Brand | Hikrobot |
| Clearance distance (CD) | 300 mm |
| Measurement range (MR) | 700 mm |
| Object detection range | At 500 mm mounting height: 50 mm × 50 mm × 10 mm to 450 mm × 450 mm × 200 mm |
| Depth image detection accuracy | Z:2.5 mm@0.5 m; 5 mm@1 m |
| Data type | Raw image (mono + color), Depth map, EDP detection results |
| Laser safety class | Class 1 |
Optics
| Near field of view | 590 mm × 470 mm |
|---|---|
| Far field of view | 2200 mm × 1500 mm |
Sensor and imaging
| Scan frame rate | 23 fps@EDP mode |
|---|---|
| Resolution | Depth:1408 × 1024 @ 30 fps; RGB:1536 × 1280 @ 30 fps |
Interfaces and I/O
| Data interface | Gigabit Ethernet(1000Mbit/s) |
|---|---|
| Digital I/O | 12-pin M12 interface provides I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7) |
| Client software | HiViewer |
Environment and compliance
| Ingress protection | IP65 |
|---|---|
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Certification | KC, CE |
Computing
| Operating system | Windows 7/10/11 32/64bits, Windows 11 64bits |
|---|
Electrical
| Power supply | 12~24 VDC |
|---|---|
| Power consumption | 9W@24 VDC |
Mechanical

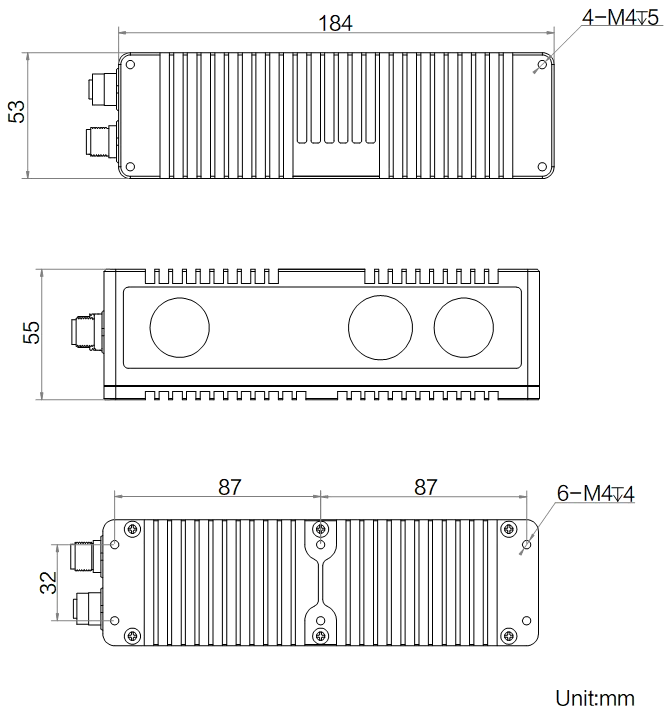

| Dimension | 184 mm × 55 mm × 53 mm |
|---|---|
| Weight | Approx. 700 g |
| Shipping weight (estimated) | 1.08 kg |
