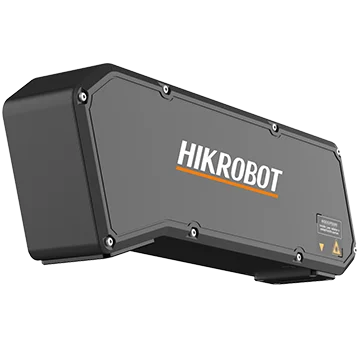

Hikrobot MV-DL2125-04H-R Line Laser 3D Camera

Model MV-DL2125-04H-RHikrobot

InterfaceGigabit Ethernet (1000 Mbit/s)
Speed600 fps @ 1 m3 measurement range
TypeLaser profiler
Near field of view1000 mm

$9,609.00

List price

Ships in 2-3 weeks

2.34 kg shipping weight

Not available in the United States. Available for delivery to other countries.

MV-DL2125-04H-R: measurement range (MR) 1000 mm, clearance distance (CD) 700 mm, near field of view 1000 mm, scan frame rate 600 fps @ 1 m3 measurement range.

Hikrobot MV-DL2125-04H-R Line Laser 3D Camera. Adopts wide dynamic range algorithm to accurately measure materials of high-absorbance or high-reflection. Detection speed up to 3 m/s and accuracy of ± 5 mm.

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CE

Specifications

General

Model	MV-DL2125-04H-R
Brand	Hikrobot
Clearance distance (CD)	700 mm
Measurement range (MR)	1000 mm
Detection accuracy	± 5 mm (regular object)
Detection speed	3 m/s @ ±5 mm detection accuracy
Data type	Point cloud data, length/width/height, integral volume, peak coordinates, depth image
Laser safety class	Class 3B

Optics

Near field of view	1000 mm
Far field of view	2600 mm

Sensor and imaging

Scan frame rate	600 fps @ 1 m3 measurement range

Interfaces and I/O

Data interface	Gigabit Ethernet (1000 Mbit/s)
Digital I/O	12-pin M12 interface provides I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7), RS-232 × 1.
Client software	3DMVS, CodePlatform

Environment and compliance

Temperature	Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20%RH to 85% RH, no condensation
Certification	CE

Computing

Operating system	32/64-bit Windows 7/10

Electrical

Trigger mode	External trigger, encoder trigger (max. 15 kHz trigger signal supported)
Power supply	12 VDC to 24 VDC
Power consumption	Typ. 10 W @ 12 VDC

Mechanical

Dimension	354.1 mm × 65 mm × 123.4 mm (13.9" × 2.6" × 4.9")
Weight	1.6 kg (3.5 lb.)
Shipping weight (estimated)	2.34 kg

Downloads

Features

Adopts wide dynamic range algorithm to accurately measure materials of high-absorbance or high-reflection.
Detection speed up to 3 m/s and accuracy of ± 5 mm.
Adopts high-power laser module with wide dynamic range.
Adopts narrow band pass filter to suppress the interference.
Stable performance with simultaneous exposure and laser.
Supports outputting data type of length/width/height, integral volume, point cloud data, and location coordinates.
