Board-level cameras

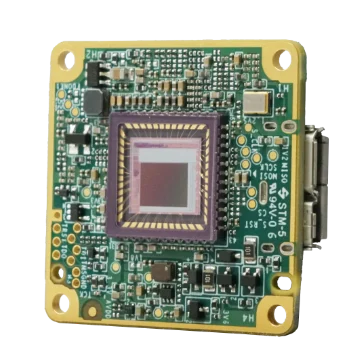

CB Series USB3.0 Board Cameras
- 38 models
- from $199.00
- Series HIK-CB-USB
The CB Series USB3.0 Board Cameras is a range of 38 board-level cameras from Hikrobot, from $199.00. It comes in 13 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 1.3 MP, 1/2", USB3, Color, 1.3 MP, 1/2", USB3, Mono, 1.6 MP, 1/2.9", USB3, Color, 1.6 MP, 1/2.9", USB3, Mono, 2 MP, 1/1.7", USB3, Mono, 2 MP, 1/2.53", USB3, Color, 2 MP, 1/2.53", USB3, Mono, 5 MP, 2/3", USB3, Color, 5 MP, 2/3", USB3, Mono, 6.3 MP, 1/1.8", USB3, Color, 6.3 MP, 1/1.8", USB3, Mono, 12.2 MP, 1/1.7", USB3, Color, 12.2 MP, 1/1.7", USB3, Mono
- Interface
- USB3
- Resolution
- Up to 3 MP, 5 MP, 6-10 MP, 12 MP
- Shutter
- Global, Rolling
- Colour
- Color, Mono
- Lens mount
- M12, C-mount, None (bare board)
- Sensor format
- 1/2.5" and smaller, 1/2", 1/1.8" - 1/1.56", 2/3"
Features
- Compact design for flexible installation.
- Supports auto or manual adjustment of gain, exposure time, white balance, Gamma correction, LUT, etc.
- Adopts image interpolation algorithm for color cameras to have better color correction.
- Adopts USB3.0 interface to provide power supply and transmit data.
- Compatible with USB3 Vision Protocol, GenlCam standard, and third-party software based on these protocol and standard.
- Sensor and mainboard can be separated to fit complex spaces
- Two sensor boards for a wide field of view and richer scene information
- Power and data over the USB3.0 interface
All 38 models in the CB Series USB3.0 Board Cameras
| Link | ||||||
|---|---|---|---|---|---|---|
| MV-CB013-A0UM-S | 1.3 MP, 1/2", USB3, Mono | 1280 × 1024 | USB3.0 | 1/2" | $199.00 | View |
| MV-CB013-A0UC-S | 1.3 MP, 1/2", USB3, Color | 1280 × 1024 | USB3.0 | 1/2" | $199.00 | View |
| MV-CB013-A0UMM-C | 1.3 MP, 1/2", USB3, Mono | 1280 × 1024 × 2 | USB3.0 | 1/2" | $199.00 | View |
| MV-CB016-10UM-B | 1.6 MP, 1/2.9", USB3, Mono | 1440 × 1080 | USB 3.0 | 1/2.9" | $209.00 | View |
| MV-CB016-10UM-C | 1.6 MP, 1/2.9", USB3, Mono | 1440 × 1080 | USB 3.0 | 1/2.9" | $209.00 | View |
| MV-CB016-10UM-S | 1.6 MP, 1/2.9", USB3, Mono | 1440 × 1080 | USB 3.0 | 1/2.9" | $209.00 | View |
| MV-CB016-10UC-B | 1.6 MP, 1/2.9", USB3, Color | 1440 × 1080 | USB 3.0 | 1/2.9" | $209.00 | View |
| MV-CB016-10UC-C | 1.6 MP, 1/2.9", USB3, Color | 1440 × 1080 | USB 3.0 | 1/2.9" | $209.00 | View |
| MV-CB016-10UC-S | 1.6 MP, 1/2.9", USB3, Color | 1440 × 1080 | USB 3.0 | 1/2.9" | $209.00 | View |
| MV-CB020-61UM-B-F | 2 MP, 1/1.7", USB3, Mono | 1624 × 1240 | USB 3.0, compatible with USB 2.0 | 1/1.7" | $229.00 | View |
| MV-CB020-61UM-C-F | 2 MP, 1/1.7", USB3, Mono | 1624 × 1240 | USB 3.0, compatible with USB 2.0 | 1/1.7" | $229.00 | View |
| MV-CB020-61UM-S-F | 2 MP, 1/1.7", USB3, Mono | 1624 × 1240 | USB 3.0, compatible with USB 2.0 | 1/1.7" | $229.00 | View |
| MV-CB020-60UM-B | 2 MP, 1/2.53", USB3, Mono | 1624 × 1240 | USB 3.0, compatible with USB 2.0 | 1/2.53" | $229.00 | View |
| MV-CB020-60UC-S | 2 MP, 1/2.53", USB3, Color | 1624 × 1240 | USB 3.0, compatible with USB 2.0 | 1/2.53" | $229.00 | View |
| MV-CB020-60UM-S | 2 MP, 1/2.53", USB3, Mono | 1624 × 1240 | USB 3.0, compatible with USB 2.0 | 1/2.53" | $229.00 | View |
| MV-CB020-60UC-B | 2 MP, 1/2.53", USB3, Color | 1624 × 1240 | USB 3.0, compatible with USB 2.0 | 1/2.53" | $229.00 | View |
| MV-CB020-60UM-C | 2 MP, 1/2.53", USB3, Mono | 1624 × 1240 | USB 3.0, compatible with USB 2.0 | 1/2.53" | $229.00 | View |
| MV-CB020-60UC-C | 2 MP, 1/2.53", USB3, Color | 1624 × 1240 | USB 3.0, compatible with USB 2.0 | 1/2.53" | $229.00 | View |
| MV-CB013-A0UM-B | 1.3 MP, 1/2", USB3, Mono | 1280 × 1024 | USB3.0 | 1/2" | $239.00 | View |
| MV-CB060-10UM-B | 6.3 MP, 1/1.8", USB3, Mono | 3072 × 2048 | USB 3.0 | 1/1.8" | $239.00 | View |
| MV-CB060-10UC-B | 6.3 MP, 1/1.8", USB3, Color | 3072 × 2048 | USB 3.0 | 1/1.8" | $239.00 | View |
| MV-CB013-A0UM-C | 1.3 MP, 1/2", USB3, Mono | 1280 × 1024 | USB3.0 | 1/2" | $259.00 | View |
| MV-CB013-A0UC-C | 1.3 MP, 1/2", USB3, Color | 1280 × 1024 | USB3.0 | 1/2" | $259.00 | View |
| MV-CB050-11UC-C | 5 MP, 2/3", USB3, Color | 2448 × 2048 | USB3.0, compatible with USB2.0 | 2/3" | $359.00 | View |
| MV-CB050-60UM-C-F | 5 MP, 2/3", USB3, Mono | 2448 × 2048 | USB 3.0, compatible with USB 2.0 | 2/3" | $359.00 | View |
| MV-CB050-60UC-C-F | 5 MP, 2/3", USB3, Color | 2448 × 2048 | USB 3.0, compatible with USB 2.0 | 2/3" | $359.00 | View |
| MV-CB050-60UC-B-F | 5 MP, 2/3", USB3, Color | 2448 × 2048 | USB 3.0, compatible with USB 2.0 | 2/3" | $359.00 | View |
| MV-CB050-60UM-B-F | 5 MP, 2/3", USB3, Mono | 2448 × 2048 | USB 3.0, compatible with USB 2.0 | 2/3" | $359.00 | View |
| MV-CB060-10UM-C | 6.3 MP, 1/1.8", USB3, Mono | 3072 × 2048 | USB 3.0 | 1/1.8" | $409.00 | View |
| MV-CB060-10UM-S | 6.3 MP, 1/1.8", USB3, Mono | 3072 × 2048 | USB 3.0 | 1/1.8" | $409.00 | View |
| MV-CB060-10UC-C | 6.3 MP, 1/1.8", USB3, Color | 3072 × 2048 | USB 3.0 | 1/1.8" | $409.00 | View |
| MV-CB060-10UC-S | 6.3 MP, 1/1.8", USB3, Color | 3072 × 2048 | USB 3.0 | 1/1.8" | $409.00 | View |
| MV-CB120-10UM-C V4 | 12.2 MP, 1/1.7", USB3, Mono | 4032 × 3036 | USB 3.0 | 1/1.7" | $409.00 | View |
| MV-CB120-10UC-C V4 | 12.2 MP, 1/1.7", USB3, Color | 4032 × 3036 | USB 3.0 | 1/1.7" | $409.00 | View |
| MV-CB120-10UM-B V4 | 12.2 MP, 1/1.7", USB3, Mono | 4032 × 3036 | USB 3.0 | 1/1.7" | $569.00 | View |
| MV-CB120-10UM-S V4 | 12.2 MP, 1/1.7", USB3, Mono | 4032 × 3036 | USB 3.0 | 1/1.7" | $569.00 | View |
| MV-CB120-10UC-B V4 | 12.2 MP, 1/1.7", USB3, Color | 4032 × 3036 | USB 3.0 | 1/1.7" | $569.00 | View |
| MV-CB120-10UC-S V4 | 12.2 MP, 1/1.7", USB3, Color | 4032 × 3036 | USB 3.0 | 1/1.7" | $569.00 | View |
