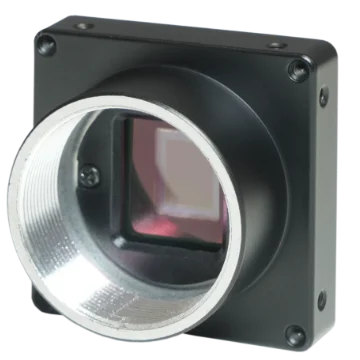

Hikrobot MV-CB120-10UC-C V4 12MP Board Level Camera, USB3, IMX226, Color, C-mount
  • Hikrobot MV-CB120-10UC-C V4 12MP Board Level Camera, USB3, IMX226, Color, C-mount
  • MV-CB120-10UC-C V4 dimensions (mm)

Board-level cameras

Hikrobot MV-CB120-10UC-C V4 12MP Board Level Camera, USB3, IMX226, Color, C-mount

Model MV-CB120-10UC-C V4Hikrobot

  • Resolution4032 × 3036
  • SensorCMOS, rolling shutter
  • InterfaceUSB 3.0
  • Speed30 fps @ 4032 × 3036 Bayer RG 8
  • Lens mountC-mount
  • Mono / colourColor
$409.00

Ships in 2-3 weeks

0.14 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Available in the US - comparable cameras:

Ask an engineerBrowse Board-level cameras

MV-CB120-10UC-C V4: resolution 4032 x 3036; sensor type CMOS, rolling shutter; sensor size 1/1.7"; data interface USB 3.0; mono/color Color.

Hikrobot MV-CB120-10UC-C V4 12MP Board Level Camera, USB3, IMX226, V4, Color, C-mount. Supports auto and manual adjustment for gain, exposure control, white balance, Gamma, LUT, etc. Adopts image interpolation algorithm for color camera to have better color correction.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CB120-10UC-C V4
BrandHikrobot
CompatibilityUSB3 Vision, GenICam

Sensor and imaging

Sensor typeCMOS, rolling shutter
Sensor modelSony® IMX226
Pixel size1.85 μm × 1.85 μm
Sensor size1/1.7"
Resolution4032 × 3036
Max. frame rate30 fps @ 4032 × 3036 Bayer RG 8
Dynamic range64.6 dB
SNR39.9 dB
Gain0 dB to 20 dB
Exposure time33 μs to 2 sec
Exposure modeSupports Off/ Once/ Continuous exposure mode, and Global Reset.
Mono/colorColor
Pixel formatMono8/10/12; Bayer RG 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB8, BGR8
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interfaceUSB 3.0
Digital I/OBi-directional non-isolated I/O × 2 (Line 2, Line 5)
Client softwareMVS or third-party software with USB3 Vision Protocol

Environment and compliance

TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 80% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux

Electrical

Power supplyUSB 3.0 power supply
Power consumptionTyp. 2 W @ 5 VDC (USB power supply)

Mechanical

Lens mountC-mount
Dimension35 mm × 35 mm × 8.6 mm (1.4" × 1.4" × 0.3")
WeightApprox. 30 g (0.07 lb.)
Shipping weight (estimated)0.14 kg

Engineering data

Field of view and resolution with the MV-CB120-10UC-C V4

Worked out from this camera's own sensor: the field of view and the size one pixel covers on the part, for common lenses and working distances.

Sensor area7.46 × 5.62 mm1/1.7" optical format
Lens image circle needed≥ Ø 9.3 mmC-mount
Pixel pitch1.85 µm4032 x 3036 px
With a 16 mm lens at 500 mm233 × 176 mm0.058 mm per pixel
Dynamic range64.6 dB
SNR39.9 dB
Power consumption2 Wtyp. at 5 V DC; USB power supply
ShutterRolling
Exposure range33 µs to 2 s
Weight30 gapprox.
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
8 mm280 × 211 mm0.069 mm per pixel466 × 351 mm0.116 mm per pixel932 × 702 mm0.231 mm per pixel
12 mm186 × 140 mm0.046 mm per pixel311 × 234 mm0.077 mm per pixel622 × 468 mm0.154 mm per pixel
16 mm140 × 105 mm0.035 mm per pixel233 × 176 mm0.058 mm per pixel466 × 351 mm0.116 mm per pixel
25 mm89.5 × 67.4 mm0.022 mm per pixel149 × 112 mm0.037 mm per pixel298 × 225 mm0.074 mm per pixel
35 mm63.9 × 48.2 mm0.016 mm per pixel107 × 80.3 mm0.026 mm per pixel213 × 161 mm0.053 mm per pixel
50 mm44.8 × 33.7 mm0.011 mm per pixel74.6 × 56.2 mm0.019 mm per pixel149 × 112 mm0.037 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

Lenses for this C-mount camera

Covers up to 9.5 mm diagonal; this camera's sensor is 9.3 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 9.3 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 9.3 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 9.3 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 9.3 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 9.3 mm

Cables and frame grabbers
