Rendered illustration: the actual product may differ in appearance.
Board-level cameras
12.2 MP board-level camera, IMX226, rolling shutter, 21 fps (LS-BCM-0030)
Model LS-BCM-0030
- Resolution4032 × 3036
- Sensor1/1.7"
- InterfaceUSB3.0
- Speed21
- Pixel size1.85 μm
$290.00
Ships in 3-4 weeks
2.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
12.2 MP board-level camera for building vision into compact machines and devices. IMX226 sensor; 4032 x 3036 pixels of 1.85 μm; up to 21 frames per second; rolling shutter; mono or colour version.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BCM-0030 |
|---|
Sensor and imaging
| Resolution | 4032 × 3036 |
|---|---|
| Shutter | Rolling shutter |
| Sensor model | IMX226 |
| Max. frame rate | 21 |
| Pixel size | 1.85 μm |
| Sensor make | Sony |
| Sensor size | 1/1.7" |
| Sensor type | CMOS |
| Dynamic range | >70.0 dB |
| Exposure time | 23 μs ~ 2 s |
| Pixel bit depth | 8 / 10 / 12 bits |
Interfaces and I/O
| Data interface | USB3.0 |
|---|---|
| Digital I/O | 2 bidirectional configurable I/O(without opto-isolated) |
Environment and compliance
| Operating temperature | 0- 50°C(Operating), -30- 70°C(Storage) |
|---|
Electrical
| Trigger mode | ● Soft Trigger ● Hardware Trigger ● Free Run |
|---|---|
| Power supply | 5 VDC |
Mechanical

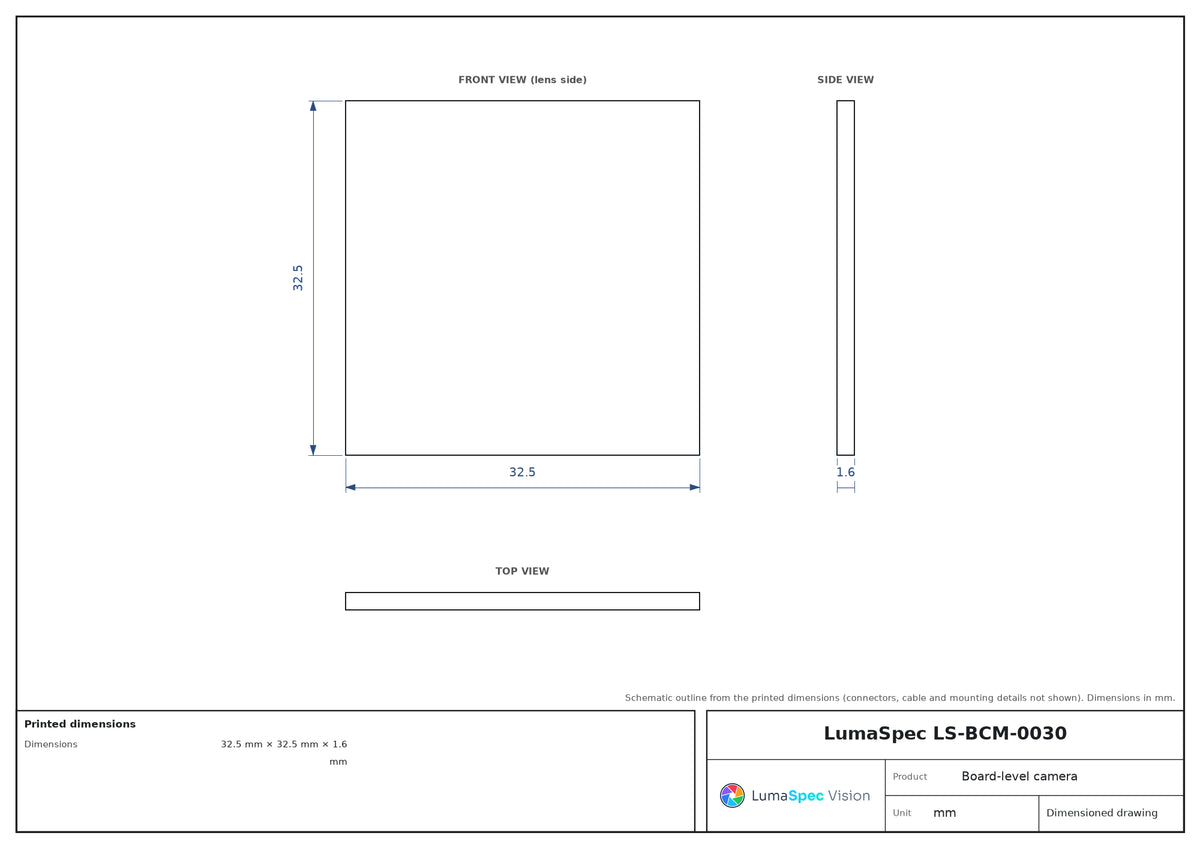

| Dimensions | 32.5 mm × 32.5 mm × 1.6 mm |
|---|---|
| Weight | 10g |
