Board-level cameras

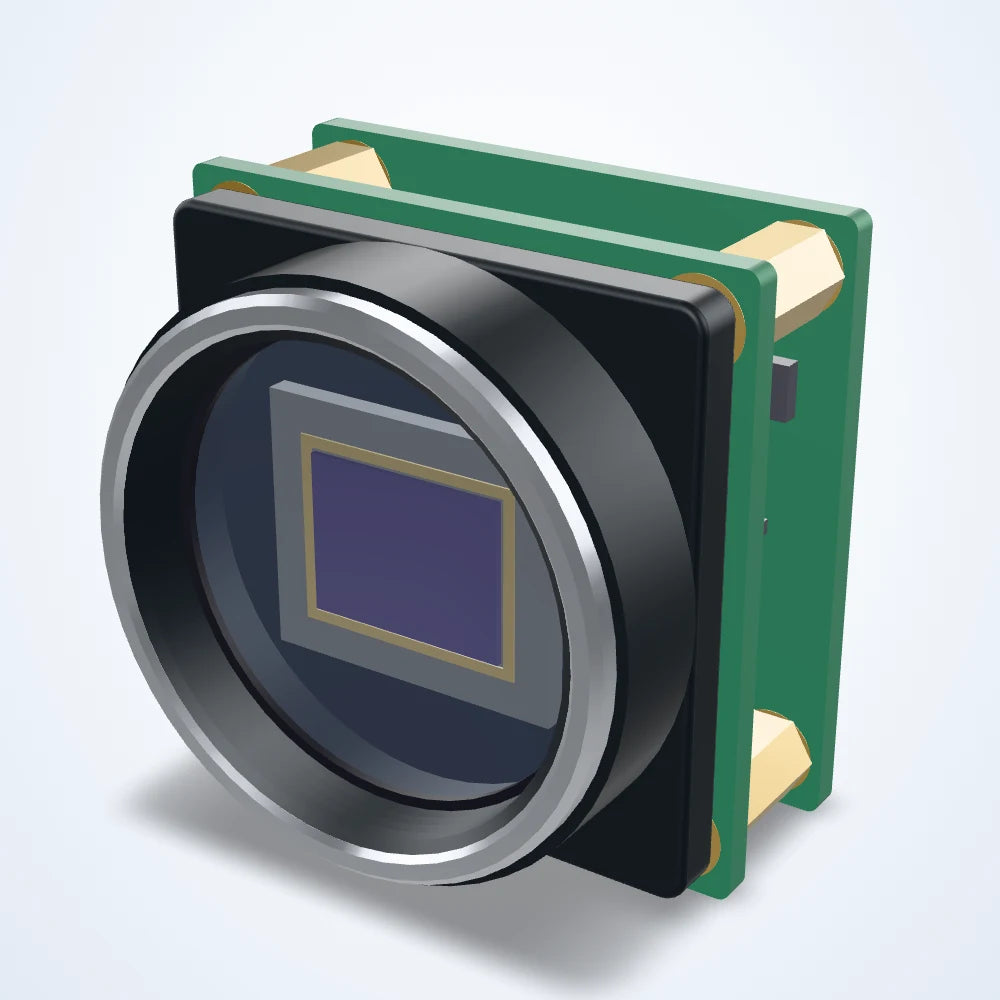

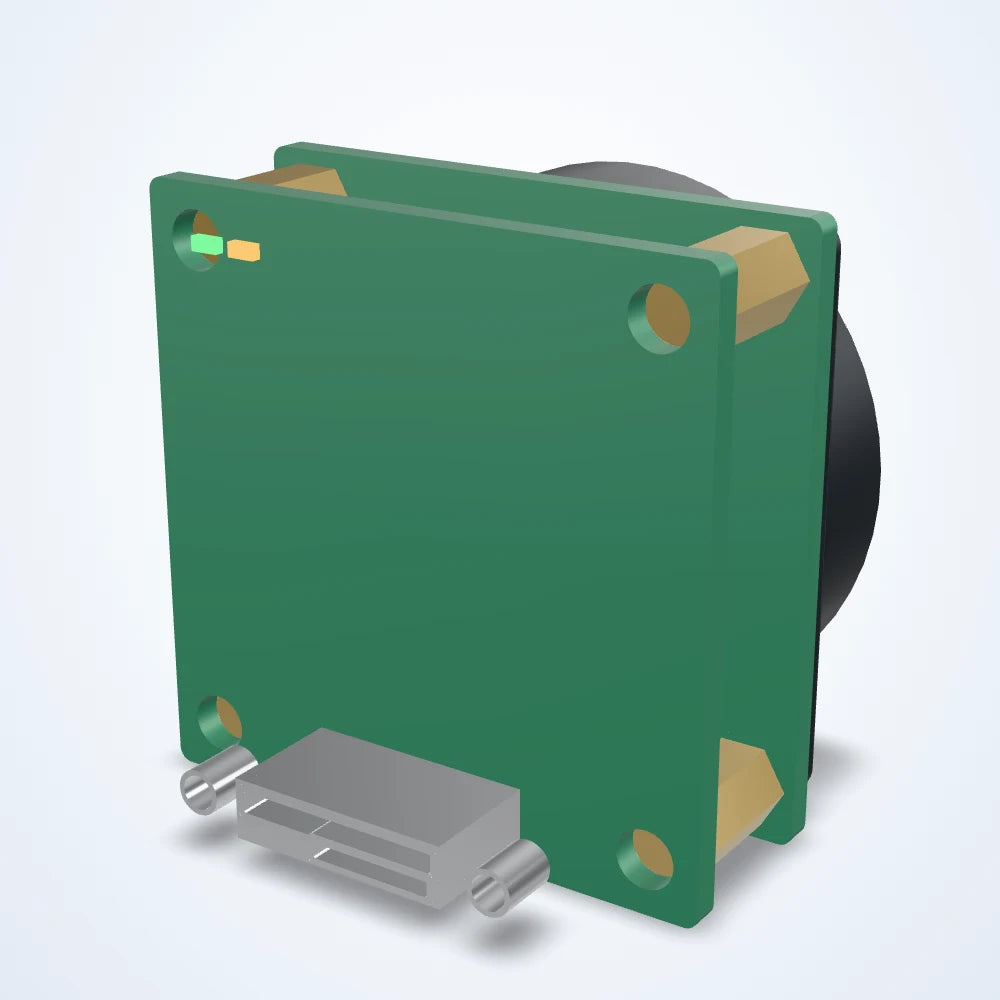

12 MP board-level camera, IMX226, 1/1.7" rolling shutter, 30 fps (LS-BCM-0036)
Model LS-BCM-0036
- Resolution4000x3000
- Sensor1/1.7''
- Speed30 fps
- Pixel size1.85 μm
$290.00
Ships in 3-4 weeks
2.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
12 MP board-level camera for building vision into compact machines and devices. IMX226 sensor (1/1.7"); 4000 x 3000 pixels of 1.85 μm; up to 30 frames per second; rolling shutter; mono or colour version.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BCM-0036 |
|---|
Sensor and imaging
| Shutter | Rolling shutter |
|---|---|
| Sensor model | IMX226 |
| Resolution | 4000x3000 |
| Max. frame rate | 30 fps |
| Pixel size | 1.85 μm |
| Sensor size | 1/1.7'' |
| Pixel bit depth | 10 |
| Sensor type | Rolling |
Mechanical
| Shipping weight | 2.00 kg |
|---|
