Board-level cameras
6.3 MP board-level camera, rolling shutter, 30.7 fps, M12, WTB Front Cover (LS-BCM-0025)
Model LS-BCM-0025
- Resolution3072 × 2048
- Sensor1/1.8"
- InterfaceGigE
- Speed30.7 fps
- Lens mountM12
- Pixel size2.4 μm x 2.4 μm
$290.00
Ships in 3-4 weeks
2.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
6.3 MP board-level camera for building vision into compact machines and devices. 3072 x 2048 pixels; up to 30.7 frames per second; rolling shutter; M12 lens mount; mono or colour version.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BCM-0025 |
|---|
Sensor and imaging
| Resolution | 3072 × 2048 |
|---|---|
| Max. frame rate | 30.7 fps |
| Shutter | Rolling shutter |
| Sensor make | Sony |
| Sensor model | IMX 178 |
| Sensor size | 1/1.8" |
| Sensor type | CMOS |
| Pixel size | 2.4 μm x 2.4 μm |
| Dynamic range | 71.3 dB |
| Exposure time | 25 μs ~ 2.5 sec |
| Pixel bit depth | 8 / 10 /12 bits |
Interfaces and I/O
| Data interface | GigE |
|---|---|
| Digital I/O | 1 bidirectional configurable I/O(without opto-isolated) |
Environment and compliance
| Operating temperature | 0- 50°C(Operating), -30- 70°C(Storage) |
|---|
Electrical
| Trigger mode | ● Soft Trigger ● Hardware Trigger ● Free Run |
|---|---|
| Power supply | 9-24 VDC |
| Power consumption | Monochrome: 12 V @2.3 W |
Mechanical
| Lens mount | M12 |
|---|---|

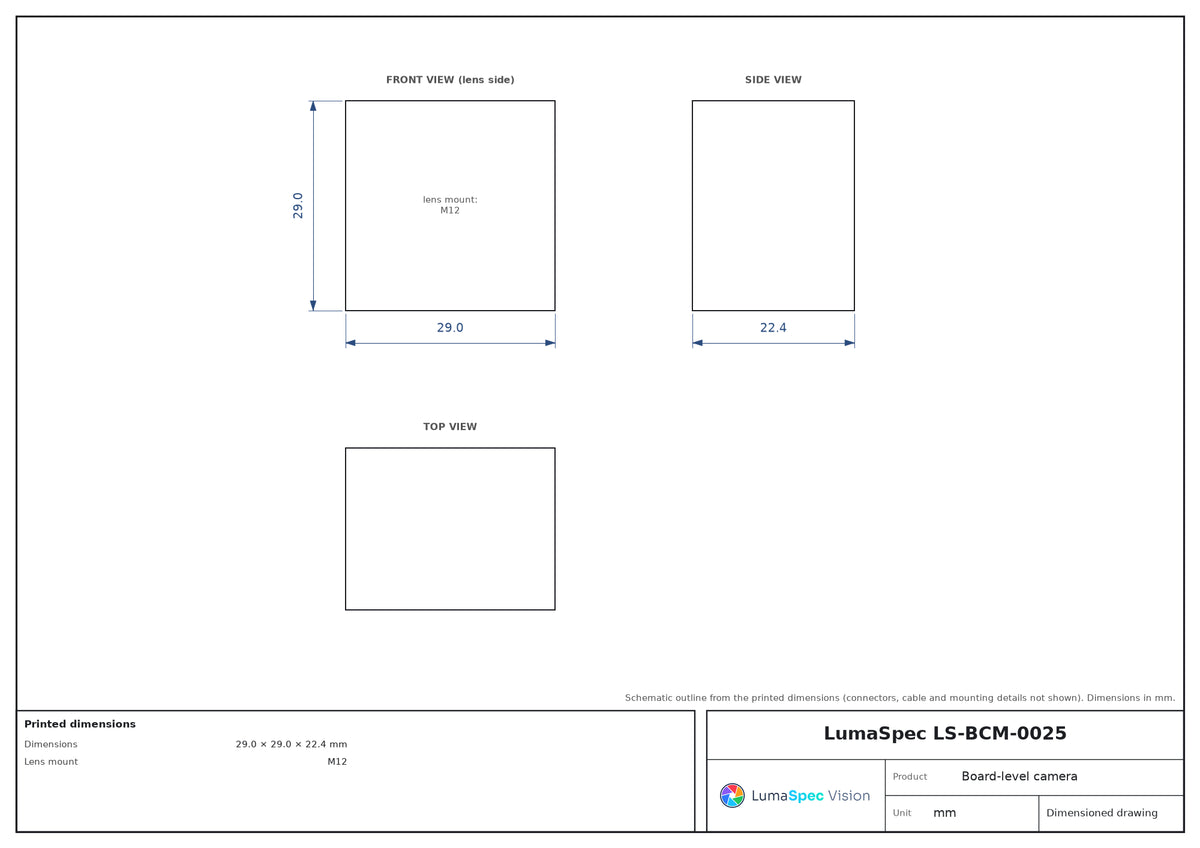

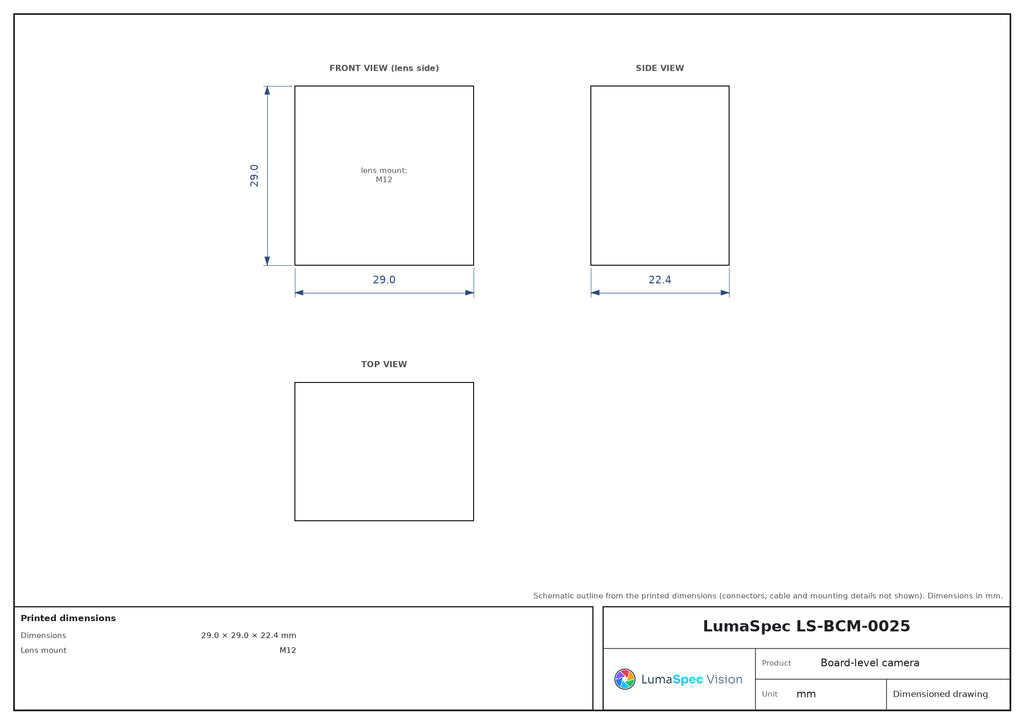

| Dimensions | 29.0 × 29.0 × 22.4 mm |
| Weight | 35g |
| Mounting holes | 4-M2X3.2; 8-M2X3.5 |
