Board-level cameras
1.3 MP board-level camera, global shutter, 201 fps (LS-BCM-0011)
Model LS-BCM-0011
- Resolution1280 × 1024
- SensorSS
- InterfaceUSB3.0
- Speed201 fps
- Lens mountC-mount
- Pixel size4 μm
$290.00
Ships in 3-4 weeks
2.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
1.3 MP board-level camera for building vision into compact machines and devices. 1280 x 1024 pixels of 4 μm; up to 201 frames per second; global shutter; mono or colour version.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BCM-0011 |
|---|
Sensor and imaging
| Resolution | 1280 × 1024 |
|---|---|
| Shutter | Global shutter |
| Sensor model | 1/2.7'' SS |
| Max. frame rate | 201 fps |
| Pixel size | 4 μm |
| Sensor type | SS |
| Sensor size | 1/2.7" |
| Dynamic range | 60.0 dB |
| Exposure time | 1 μs ~ 1 s |
| Pixel bit depth | 8 / 10 bits |
Interfaces and I/O
| Data interface | USB3.0 |
|---|---|
| Digital I/O | 1 opto-isolated input lines, 1 opto-isolated output lines, 1 non-opto-isolated Configurable input and output lines |
Environment and compliance
| Operating temperature | -30 - 50°C(Operating), -30 - 80°C(Storage) |
|---|
Electrical
| Trigger mode | ● Soft Trigger ● Hardware Trigger ● Free Run |
|---|---|
| Power supply | 5 V/900 mA via USB3.0 port |
Mechanical

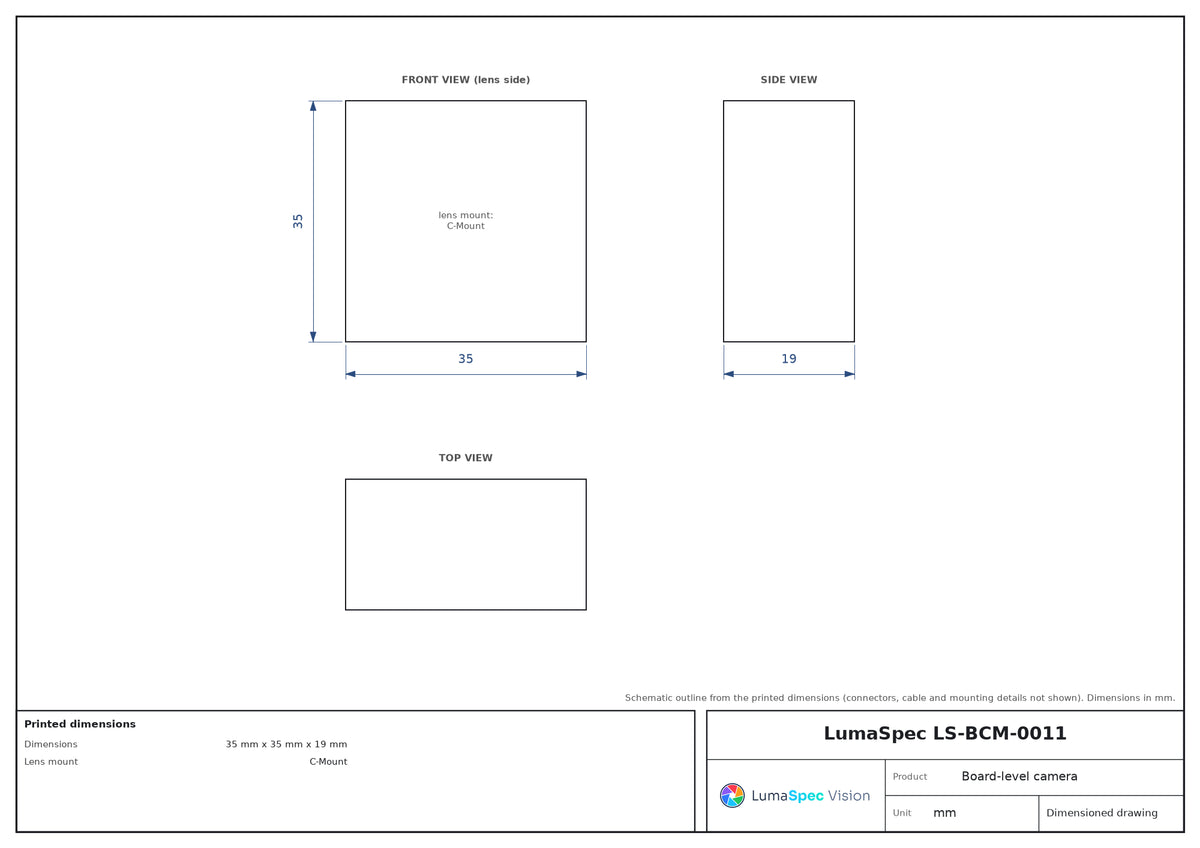

| Dimensions | 35 mm x 35 mm x 19 mm |
|---|---|
| Lens mount | C-Mount |
| Weight | 46g |
