Board-level cameras
6.3 MP board-level camera, IMX178, rolling shutter, 17 fps, M12 (LS-BCM-0019)
Model LS-BCM-0019
- Resolution3072 × 2048
- Sensor1/1.8"
- InterfaceUSB3.0
- Speed17 fps
- Lens mountM12
- Pixel size2.4
$290.00
Ships in 3-4 weeks
2.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
6.3 MP board-level camera for building vision into compact machines and devices. IMX178 sensor; 3072 x 2048 pixels of 2.4 μm; up to 17 frames per second; rolling shutter; M12 lens mount; mono or colour version.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BCM-0019 |
|---|
Sensor and imaging
| Resolution | 3072 × 2048 |
|---|---|
| Shutter | Rolling shutter |
| Sensor model | IMX178 |
| Max. frame rate | 17 fps |
| Pixel size | 2.4 |
| Sensor make | Sony |
| Sensor size | 1/1.8" |
| Sensor type | CMOS |
| Dynamic range | >71.0 dB |
| Exposure time | 27 μs ~ 2 s |
| Pixel bit depth | 8 / 10 / 12 bits |
Interfaces and I/O
| Data interface | USB3.0 |
|---|---|
| Digital I/O | 2 bidirectional configurable I/O(without opto-isolated) |
Environment and compliance
| Operating temperature | 0- 50°C(Operating), -30- 70°C(Storage) |
|---|
Electrical
| Trigger mode | ● Soft Trigger ● Hardware Trigger ● Free Run |
|---|---|
| Power supply | 5 VDC |
Mechanical
| Lens mount | M12 |
|---|---|

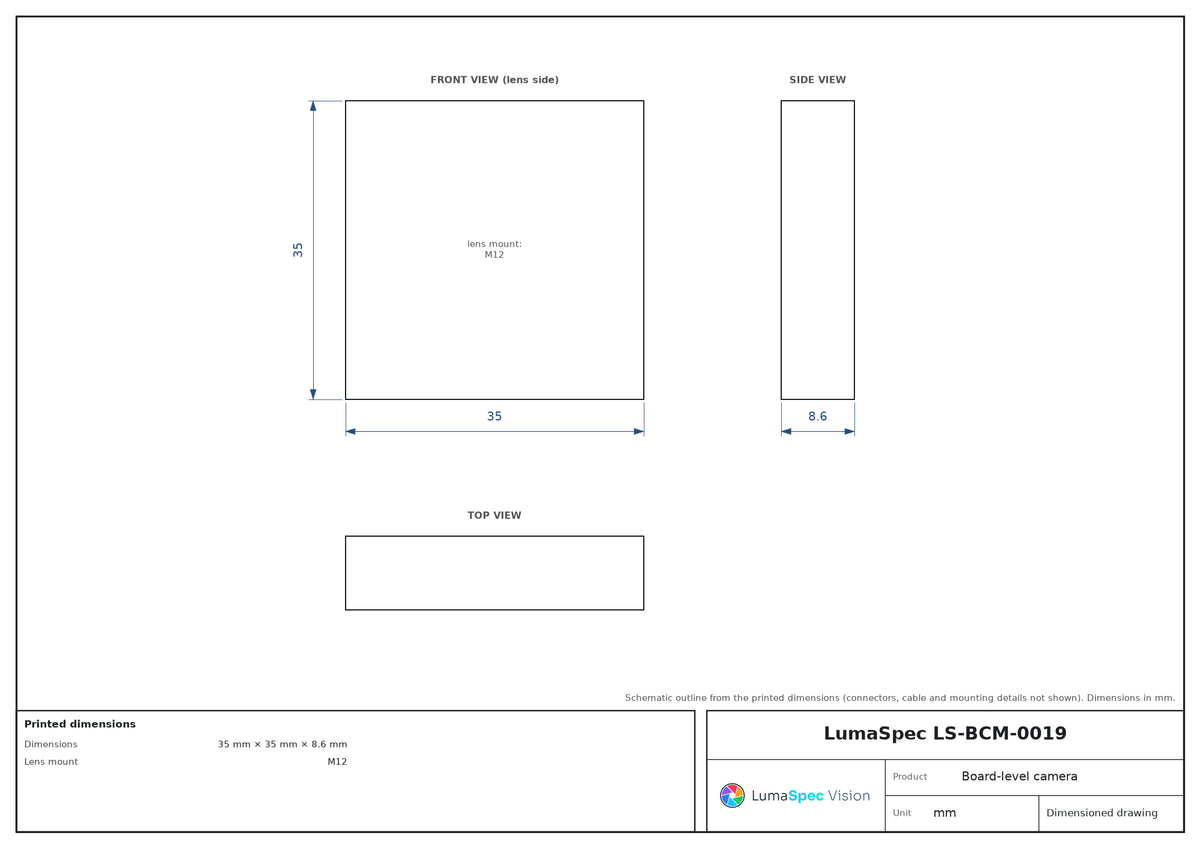

| Dimensions | 35 mm × 35 mm × 8.6 mm |
| Weight | 30g |
