6.3 MP board-level camera, IMX178, 1/1.8" rolling shutter, 18 fps
  • 6.3 MP board-level camera, IMX178, 1/1.8" rolling shutter, 18 fps
  • 6.3 MP board-level camera, IMX178, 1/1.8" rolling shutter, 18 fps
  • 6.3 MP board-level camera, IMX178, 1/1.8" rolling shutter, 18 fps

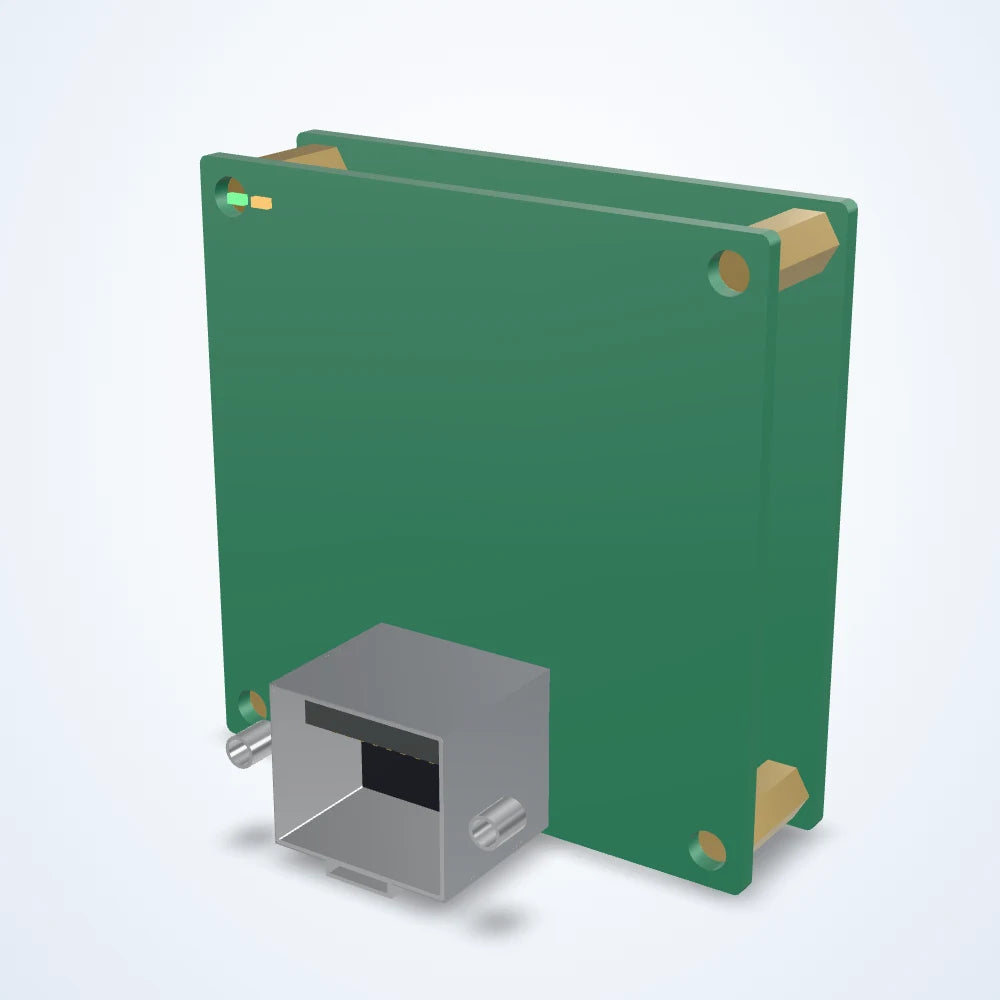

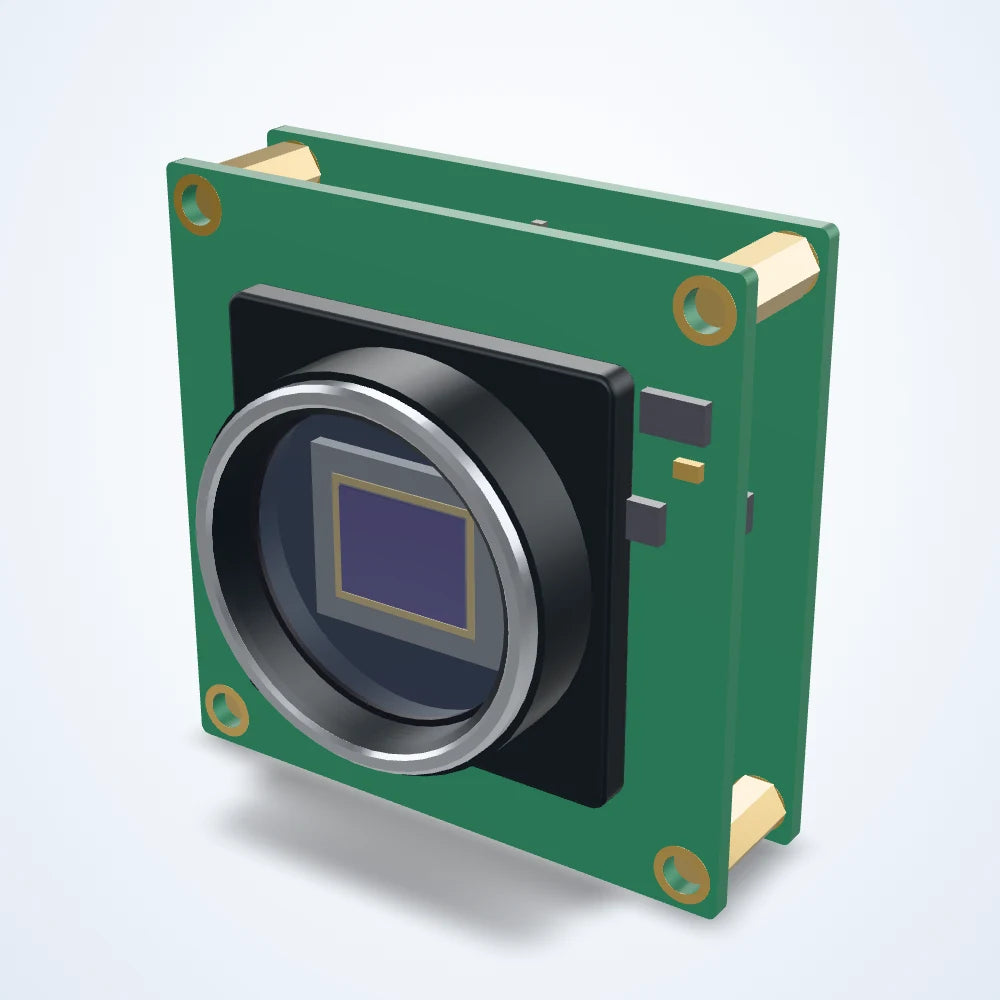

Rendered illustration: the actual product may differ in appearance.

Board-level cameras

6.3 MP board-level camera, IMX178, 1/1.8" rolling shutter, 18 fps (LS-BCM-0020)

Model LS-BCM-0020

  • Resolution3072 x 2048
  • Sensor1/1.8''
  • InterfaceGigE
  • Speed18 fps
  • Lens mountCS-mount
  • Pixel size2.4
$290.00

Ships in 3-4 weeks

2.0 kg shipping weight

Option

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

6.3 MP board-level camera, IMX178, 1/1.8" rolling shutter, 18 fps (LS-BCM-0020)LS-BCM-0020

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

6.3 MP board-level camera for building vision into compact machines and devices. IMX178 sensor (1/1.8"); 3072 x 2048 pixels of 2.4 μm; up to 18 frames per second; rolling shutter; mono or colour version.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BCM-0020
TechnologyRolling

Sensor and imaging

ShutterRolling shutter
Sensor modelIMX178
Resolution3072 x 2048
Max. frame rate18 fps
Pixel size2.4
Sensor size1/1.8''
Pixel bit depth12
Color SensorMono/Color
Sensor makeSony
Sensor typeCMOS
Dynamic range60.0 dB
Exposure time25 μs ~ 1 s

Interfaces and I/O

Data interfaceGigE
Digital I/O1 differential input; 1 I2C interface; 1 GPIO output

Environment and compliance

Operating temperature-30 - 50°C(Operating), -30 - 80°C(Storage)

Electrical

Trigger mode● Soft Trigger ● Hardware Trigger ● Free Run
Power supplyPoE, DC6V~26 V

Mechanical

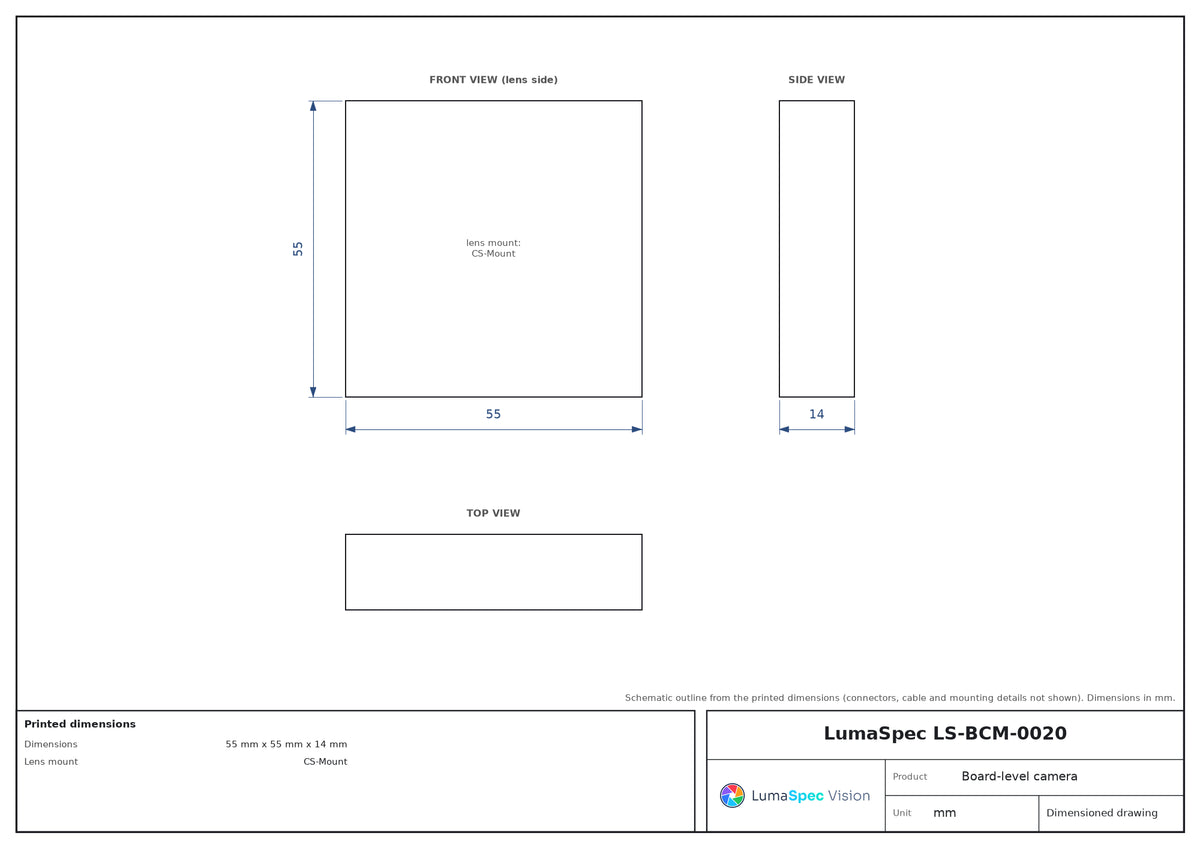

Dimensions55 mm x 55 mm x 14 mm
Lens mountCS-Mount
Weight60g
