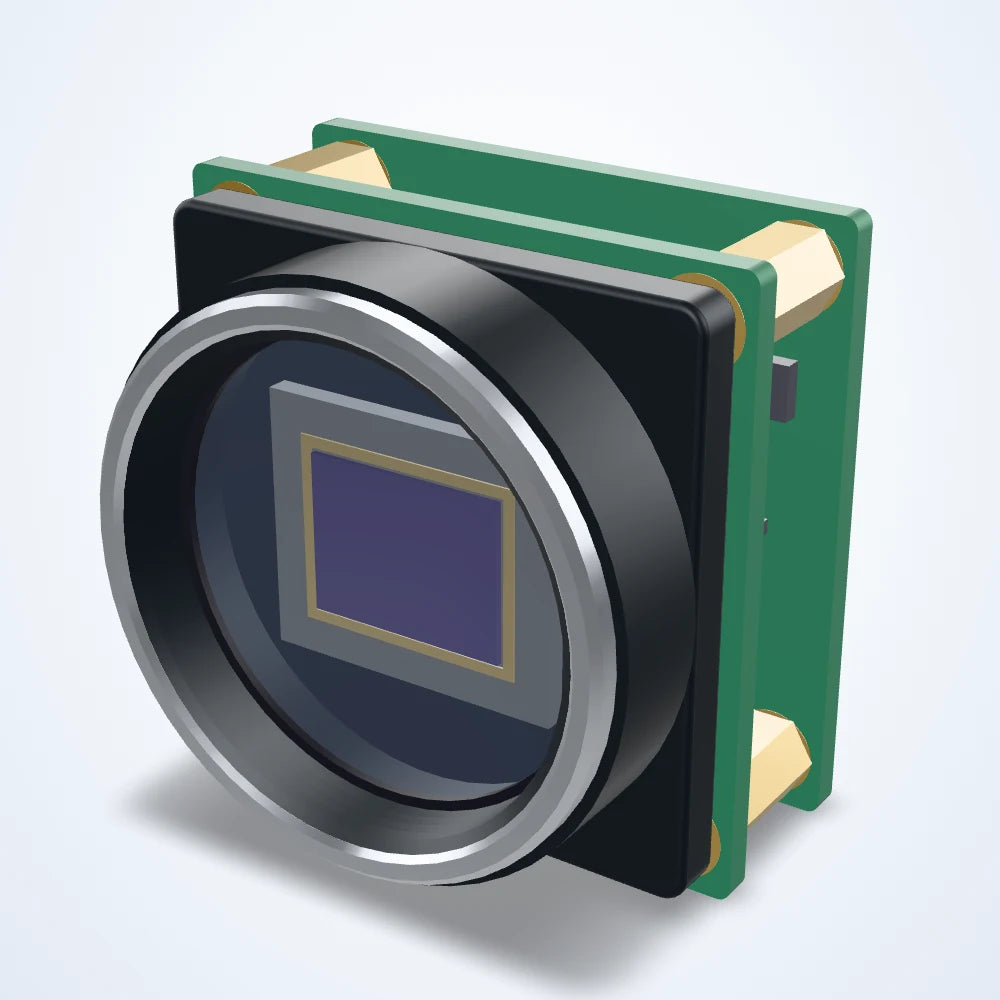

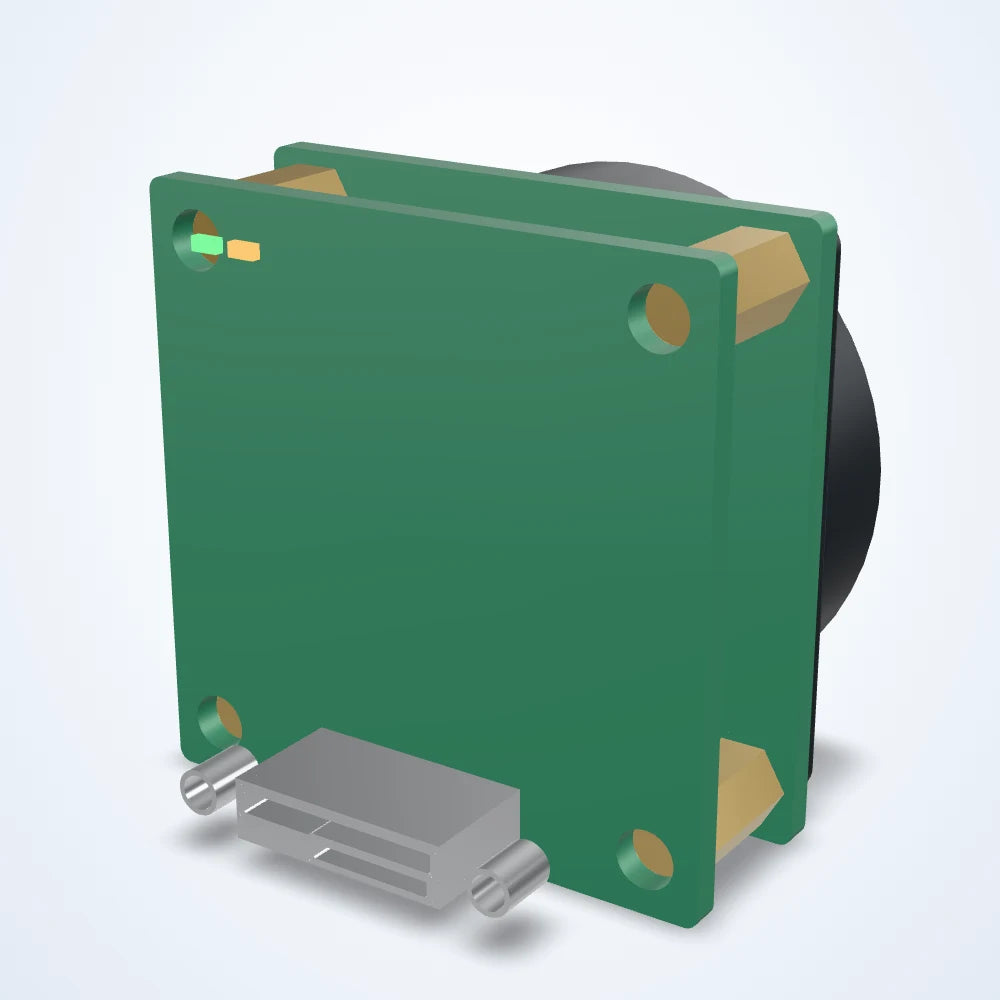

Rendered illustration: the actual product may differ in appearance.

Board-level cameras

10.6 MP board-level camera, IMX178, rolling shutter, 60 fps, M12 (LS-BCM-0029)

Model LS-BCM-0029

  • Resolution3840 × 2748
  • Sensor1/1.8"
  • InterfaceUSB3.0
  • Speed60 fps
  • Lens mountM12
  • Pixel size2.4 μm
$290.00

Ships in 3-4 weeks

2.0 kg shipping weight

Option

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

10.6 MP board-level camera, IMX178, rolling shutter, 60 fps, M12 (LS-BCM-0029)LS-BCM-0029

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

10.6 MP board-level camera for building vision into compact machines and devices. IMX178 sensor; 3840 x 2748 pixels of 2.4 μm; up to 60 frames per second; rolling shutter; M12 lens mount; mono or colour version.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BCM-0029

Sensor and imaging

Resolution3840 × 2748
ShutterRolling shutter
Sensor model1/1.8'' IMX178
Max. frame rate60 fps
Pixel size2.4 μm
Sensor makeSony
Sensor size1/1.8"
Sensor typeCMOS
Dynamic range66.0 dB
Exposure time11 μs ~ 1 s
Pixel bit depth10 bits

Interfaces and I/O

Data interfaceUSB3.0
Digital I/O1 opto-isolated input lines, 1 opto-isolated output lines, 1 non-opto-isolated Configurable input and output lines

Environment and compliance

Operating temperature-30 - 50°C(Operating), -30 - 80°C(Storage)

Electrical

Trigger mode● Soft Trigger ● Hardware Trigger ● Free Run
Power supply5 V via USB3.0 port

Mechanical

Lens mountM12

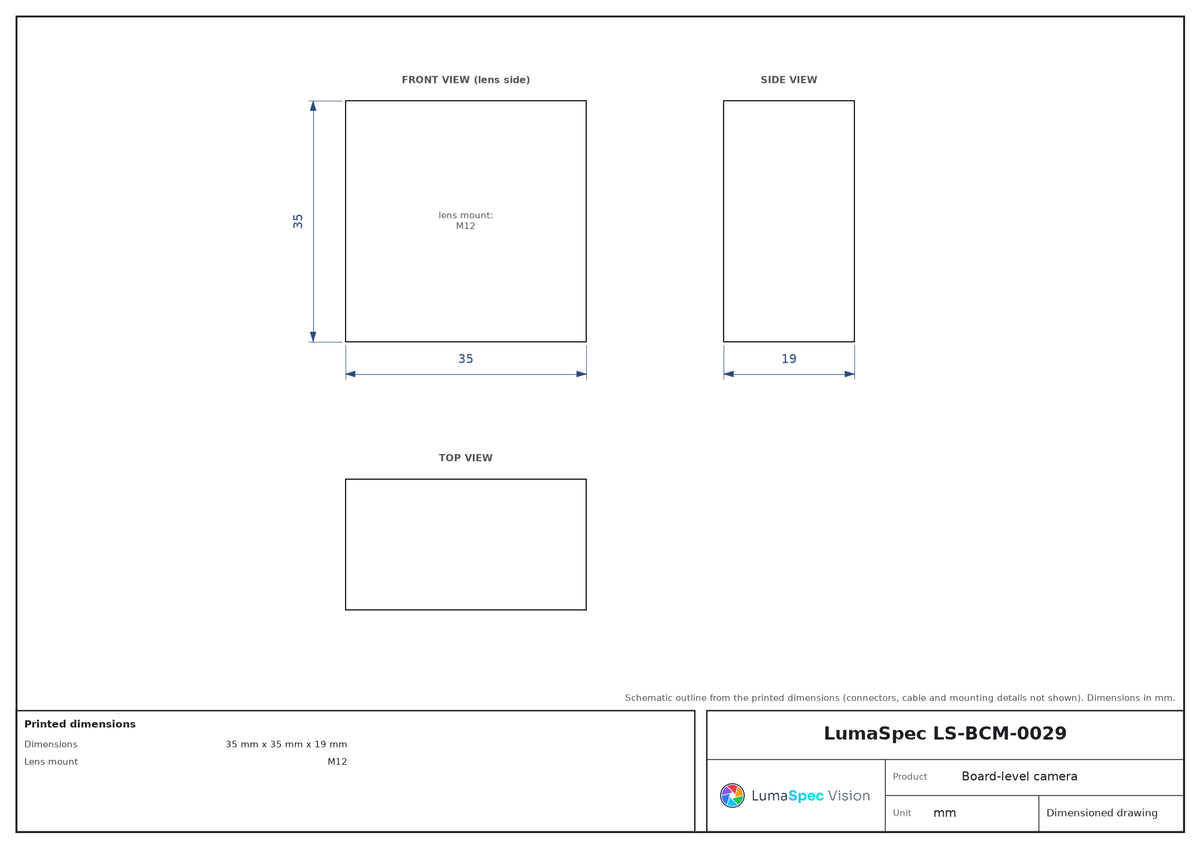

Dimensions35 mm x 35 mm x 19 mm
Weight68g
