Hikrobot MV-CB020-60UC-S 2 MP Board Level Camera, USB3, Color, M12-mount

Model MV-CB020-60UC-SHikrobot

Resolution1624 × 1240
SensorCMOS, global shutter
InterfaceUSB 3.0, compatible with USB 2.0
Speed179.9 fps @ 1624 × 1240 Bayer GB 8
Lens mountM12
Mono / colourColor

$229.00

Ships in 2-3 weeks

0.14 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineer Browse Board-level cameras

lumaspecvision.com/products/lumaspec-mv-cb020-60uc-s

In the lower half of the 6 resolutions of this board-level camera series, MV-CB020-60UC-S, the colour, M12-mount version, has a 1624 x 1240 (2 MP) sensor: fewer pixels than the 2448 x 2048 (5 MP) version, for less data per frame.

MV-CB020-60UC-S: resolution 1624 x 1240; sensor type CMOS, global shutter; sensor size 1/2.53"; data interface USB 3.0, compatible with USB 2.0; mono/color Color.

Hikrobot MV-CB020-60UC-S 2MP Board Level Camera, USB3, Color, M12-mount.

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy

Certifications (as printed)CERoHSKC

Specifications

General

Model	MV-CB020-60UC-S
Brand	Hikrobot
Compatibility	USB3 Vision, GenICam

Sensor and imaging

Sensor type	CMOS, global shutter
Sensor technology	Stacked back-side illuminated (BSI)
Pixel format	Mono 8; Bayer GB 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8
Pixel size	3.45 μm × 3.45 μm
Sensor size	1/2.53"
Resolution	1624 × 1240
Max. frame rate	179.9 fps @ 1624 × 1240 Bayer GB 8
Dynamic range	68.6 dB
SNR	44.1 dB
Gain	0 dB to 24 dB
Exposure time	23 μs to 10 sec
Exposure mode	Off/ Once/ Continuous exposure mode
Mono/color	Color
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	USB 3.0, compatible with USB 2.0
Digital I/O	Bi-directional non-isolated I/O × 2 (Line 2, Line 5)
Client software	MVS or third-party software with USB3 Vision Protocol

Environment and compliance

Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 80% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux

Electrical

Power supply	USB 3.0 power supply
Power consumption	Typ. 1.6 W @ 5 VDC

Mechanical

Lens mount	M12-mount
Dimension (without lens)	35 mm × 35 mm × 8.6 mm (1.4" × 1.4" × 0.3")
Weight	Approx. 30 g (0.07 lb.)
Shipping weight (estimated)	0.14 kg

Downloads

Features

A 1624 x 1240 (2 MP) sensor (colour, M12-mount), in the lower half of the 6 resolutions: fewer pixels than the 2448 x 2048 (5 MP) version
68.6 dB dynamic range: about 2,700:1 between the brightest and darkest detail in one image
Exposures from 23 µs: a part moving 1 m/s travels only about 0.02 mm during the shot
Supports auto and manual adjustment for gain, exposure control, white balance, LUT, etc.
Adopts image interpolation algorithm for color camera to have better color correction.
Power supply and data transmission via USB3.0 interface.
Compatible with USB3 Vision Protocol, GenICam standard, and the third-party software based on these protocol and standard.
M12-mount lens interface
Colour sensor

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Engineering data

Field of view and resolution with the MV-CB020-60UC-S

Sensor area5.6 × 4.28 mm1/2.53" optical format

Lens image circle needed≥ Ø 7 mmM12

Pixel pitch3.45 µm1624 x 1240 px

With a 6 mm lens at 500 mm467 × 357 mm0.287 mm per pixel

Dynamic range68.6 dB

SNR44.1 dB

Power consumption1.6 Wtyp. at 5 V DC

ShutterGlobal

Exposure range23 µs to 10 s

Weight30 gapprox.

Field of view (width × height) and object pixel size by lens focal length and working distance
Lens	At 300 mm	At 500 mm	At 1000 mm
2.8 mm	600 × 459 mm0.369 mm per pixel	1000 × 764 mm0.616 mm per pixel	2000 × 1529 mm1.232 mm per pixel
4 mm	420 × 321 mm0.259 mm per pixel	700 × 535 mm0.431 mm per pixel	1400 × 1070 mm0.862 mm per pixel
6 mm	280 × 214 mm0.172 mm per pixel	467 × 357 mm0.287 mm per pixel	933 × 713 mm0.575 mm per pixel
8 mm	210 × 160 mm0.129 mm per pixel	350 × 268 mm0.216 mm per pixel	700 × 535 mm0.431 mm per pixel
12 mm	140 × 107 mm0.086 mm per pixel	233 × 178 mm0.144 mm per pixel	467 × 357 mm0.287 mm per pixel
16 mm	105 × 80.2 mm0.065 mm per pixel	175 × 134 mm0.108 mm per pixel	350 × 268 mm0.216 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.

Build the full system with this part

Complete the setup

This part with the first fit-tested pick from each group below. Swap any of them for another card further down.

This partHikrobot MV-CB020-60UC-S 2 MP Board Level Camera, USB3, Color, M12-mount $229.00
Lenses for this camera 2.94 mm, 1/2.7", 2 MP, M12 board lens (LS-MBL-0091) $59.00

Set total $288.00

Lenses for this M12 camera

2.94 mm, 1/2.7", 2 MP, M12 board lens

LS-MBL-0091

Mount M12
Sensor 1/2.7"

$59.00

Ships in 2-3 weeks

This camera's 7 mm sensor diagonal uses 100 % of the lens's 7 mm image circle

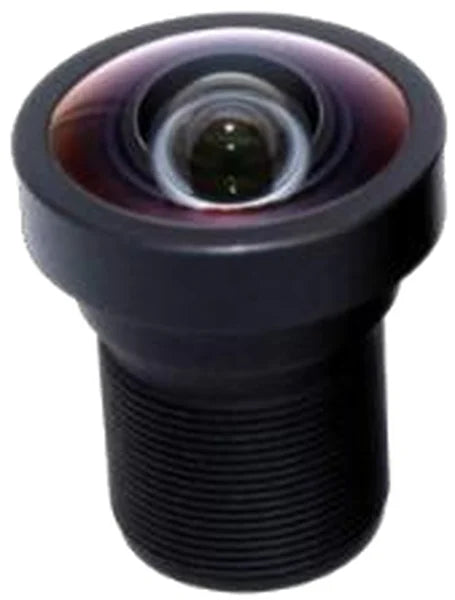

1.8 mm, 1/2.7", 8 MP, M12-mount Low-Distortion M12 lens

LS-MBL-0152

Focal length 1.8 mm
Mount M12

$109.00

Ships in 2-3 weeks

This camera's 7 mm sensor diagonal uses 100 % of the lens's 7 mm image circle

4.05 mm, 1/3", 2 MP, M12 board lens

LS-MBL-0089

Mount M12
Sensor 1/3"

$59.00

Ships in 2-3 weeks

This camera's 7 mm sensor diagonal uses 100 % of the lens's 7 mm image circle

6 mm, 1/2.5", 4 MP, M12 board lens

LS-MBL-0083

Focal length 6.0 mm±5%
Mount M12

$59.00

Ships in 2-3 weeks

This camera's 7 mm sensor diagonal uses 97 % of the lens's 7.2 mm image circle

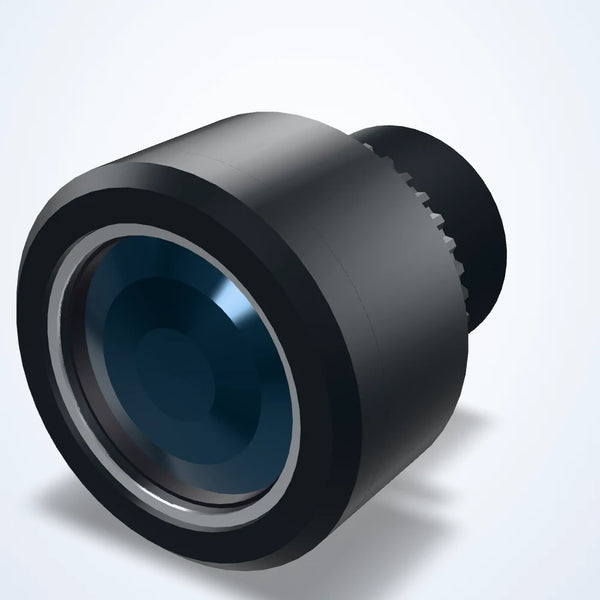

12 mm M12 board lens, 1/2.5", 5 MP

LS-MBL-0044

Focal length 12 mm
Mount M12

$48.00

Ships in 3-4 weeks

This camera's 7 mm sensor diagonal uses 97 % of the lens's 7.2 mm image circle

8 mm, 1/2.5", 2 MP, M12-mount pinhole lens

LS-MBL-0180

Focal length 8 mm
Mount M12

$59.00

Ships in 2-3 weeks

This camera's 7 mm sensor diagonal uses 97 % of the lens's 7.2 mm image circle

Before you buy

Questions about the MV-CB020-60UC-S

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which lenses fit the MV-CB020-60UC-S?

M12-mount lenses whose image circle covers its sensor diagonal (about 7 mm): LS-MBL-0091 (2.9 mm), LS-MBL-0152 (1.8 mm), LS-MBL-0089 (4 mm) and LS-MBL-0083 (6 mm).

How does the MV-CB020-60UC-S connect?

The data interface is USB 3.0, compatible with USB 2.0.

What I/O does the MV-CB020-60UC-S have?

The digital I/O is Bi-directional non-isolated I/O × 2 (Line 2, Line 5).

What power supply does the MV-CB020-60UC-S need?

The power supply is USB 3.0 power supply. The power consumption is Typ. 1.6 W @ 5 VDC.

What temperature range is the MV-CB020-60UC-S rated for?

Its temperature ratings are working temperature 0 °C to 50 °C (32 °F to 122 °F); storage temperature –30 °C to 80 °C (–22 °F to 176 °F).

Learn

Guides for this part

Engineering guides picked for the MV-CB020-60UC-S: how to choose it, set it up and get a better image.

All guides

Board level camera selection for embedded vision machinesA board level camera is a camera without its housing: sensor, electronics and interface on one small board. MIPI CSI camera no images: troubleshoot acquisitionFor a MIPI CSI camera with no images, verify completed image buffers before treating discovery or activity indicators as successful acquisition. Machine vision camera resolution calculatorPixels needed on each axis = field of view / smallest feature × pixels per feature.

Other models in the CB Series USB3.0 Board Camera series

See all 38 models in the series

How this model compares

Same specifications as MV-CB020-60UC-C except the lens mount row.
Same 1624 × 1240 resolution and pixel size as MV-CB020-60UC-C (C-mount) and MV-CB020-60UM-B (Mono) and 2 more; this one: M12-mount, Color.
Compared with MV-CB020-60UC-B: weight Approx. 30 g (0.07 lb.) here, Approx. 10 g (0.02 lb.) there.

Model	Resolution	Sensor	Interface	Speed	Lens mount	Price	Availability	Link
MV-CB016-10UC-C	1440 x 1080	CMOS, global shutter	USB 3.0		C-mount	$209.00	Ships in 2-3 weeks	CompareView
MV-CB016-10UC-S	1440 x 1080	CMOS, global shutter	USB 3.0		M12	$209.00	Ships in 2-3 weeks	CompareView
MV-CB020-60UC-SThis model	1624 x 1240	CMOS, global shutter	USB 3.0, compatible with USB 2.0	179.9 fps @ 1624 x 1240 Bayer GB 8	M12	$229.00	Ships in 2-3 weeks	Compare
MV-CB020-60UC-B	1624 x 1240	CMOS, global shutter	USB 3.0, compatible with USB 2.0	179.9 fps @ 1624 x 1240 Bayer GB 8	None (bare board)	$229.00	Ships in 2-3 weeks	CompareView
