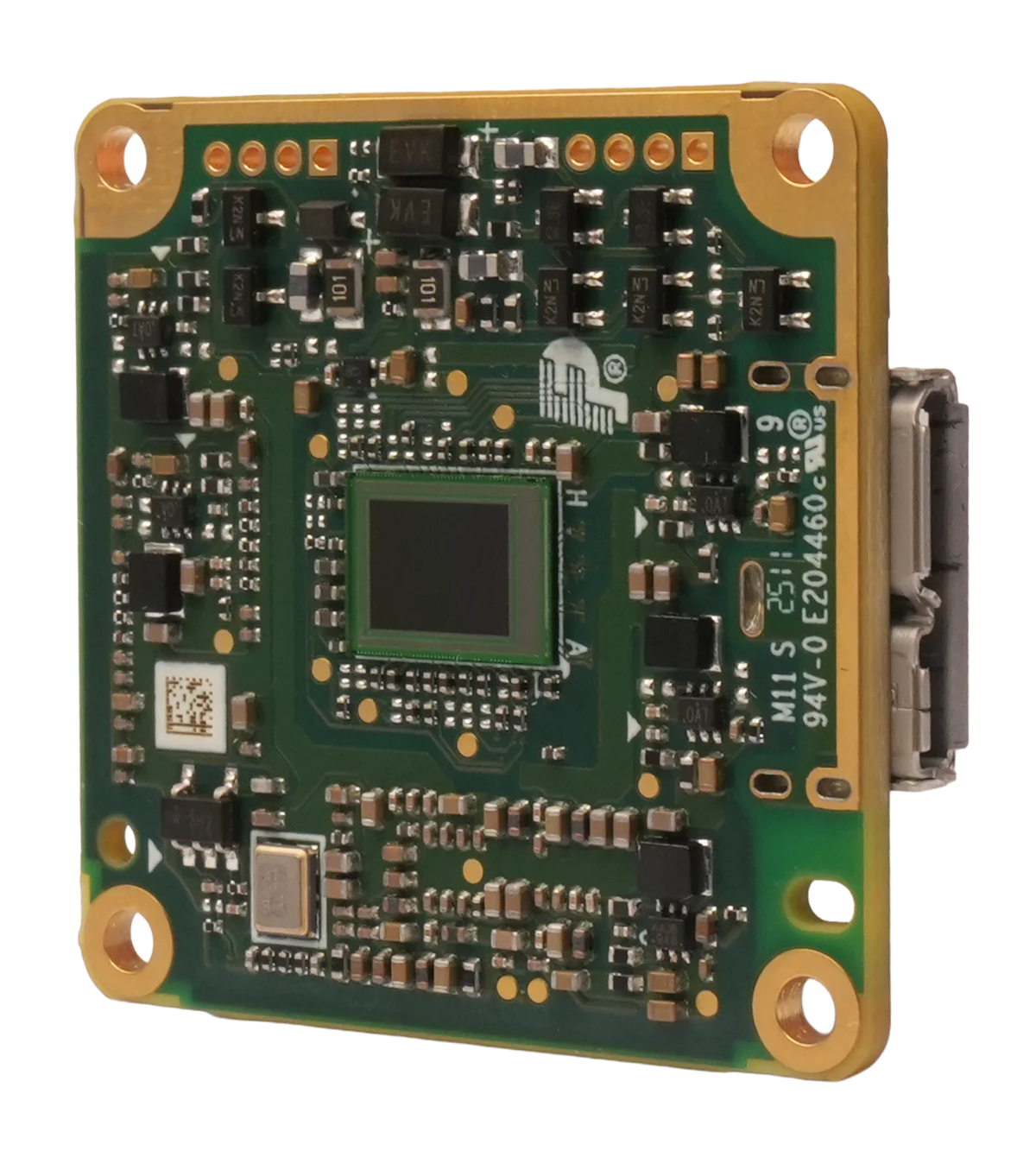

Hikrobot MV-CB020-60UC-S 2MP Board Level Camera, USB3, Color, M12-mount

Board-level cameras

Hikrobot MV-CB020-60UM-B 2MP Board Level Camera, USB3, Mono, Bare Board

Model MV-CB020-60UM-BHikrobot

Resolution1624 × 1240
SensorCMOS, global shutter
InterfaceUSB 3.0, compatible with USB 2.0
Speed179.9 fps @ 1624 × 1240 Mono 8
Lens mountNone (bare board)
Mono / colourMono

$229.00

Ships in 2-3 weeks

0.11 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CB020-60UM-B 2MP Board Level Camera, USB3, Mono, Bare Board. Supports auto and manual adjustment for gain, exposure control, white balance, LUT, etc. Adopts image interpolation algorithm for color camera to have better color correction.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CB020-60UM-B
Brand	Hikrobot
Compatibility	USB3 Vision, GenICam

Sensor and imaging

Sensor type	CMOS, global shutter
Sensor model	Stacked BSI
Pixel format	Mono 8/10/10Packed/12/12Packed
Pixel size	3.45 μm × 3.45 μm
Sensor size	1/2.53"
Resolution	1624 × 1240
Max. frame rate	179.9 fps @ 1624 × 1240 Mono 8
Dynamic range	68.6 dB
SNR	44.1 dB
Gain	0 dB to 24 dB
Exposure time	23 μs to 10 sec
Exposure mode	Off/ Once/ Continuous exposure mode
Mono/color	Mono
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	USB 3.0, compatible with USB 2.0
Digital I/O	Bi-directional non-isolated I/O × 2 (Line 2, Line 5)
Client software	MVS or third-party software with USB3 Vision Protocol

Environment and compliance

Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 80% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux

Electrical

Power supply	USB 3.0 power supply
Power consumption	Typ. 1.5 W @ 5 VDC

Mechanical

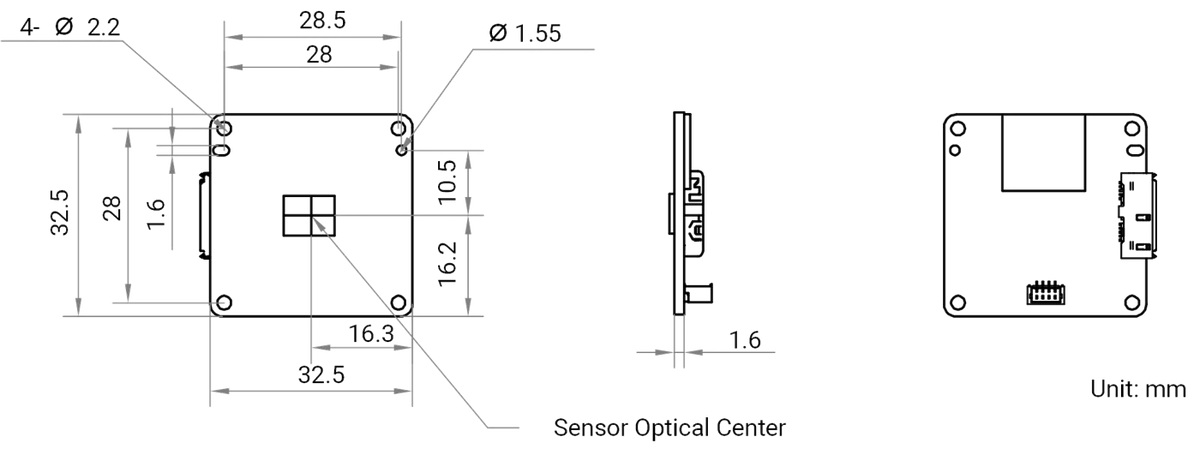

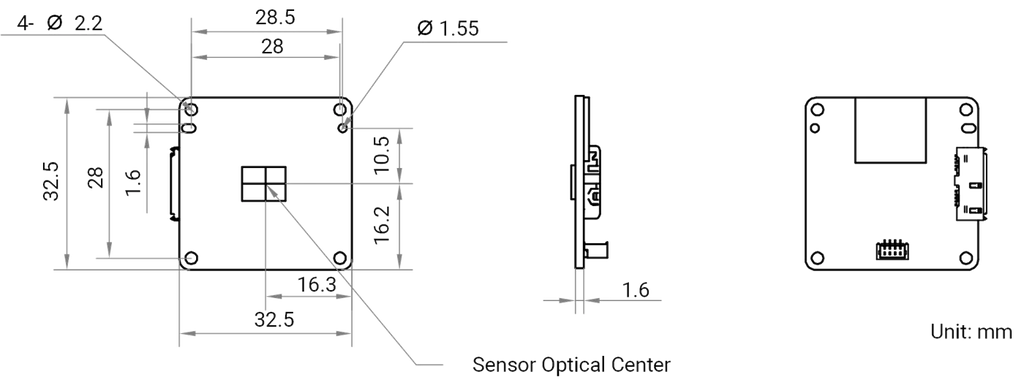

Dimension (without lens)	32.5 mm × 32.5 mm × 1.6 mm (1.3" × 1.3" × 0.1")
Weight	Approx. 10 g (0.02 lb.)
Shipping weight (estimated)	0.11 kg

Downloads

Features

Supports auto and manual adjustment for gain, exposure control, white balance, LUT, etc.
Adopts image interpolation algorithm for color camera to have better color correction.
Power supply and data transmission via USB3.0 interface.
Compatible with USB3 Vision Protocol, GenlCam standard, and the third-party software based on these protocol and standard.
