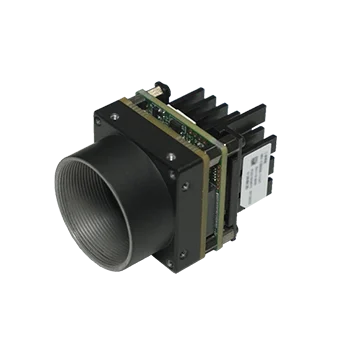

Hikrobot MV-CB050-11UC-C 5MP Board Level Camera, USB3.0, FPC interface, Color, C-mount

Model MV-CB050-11UC-CHikrobot

Resolution2448 × 2048
SensorCMOS, global shutter
InterfaceUSB3.0, compatible with USB2.0
Speed60 fps @ 2448 × 2048
Lens mountC-mount
Mono / colourColor

$359.00

Ships in 2-3 weeks

0.15 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CB050-11UC-C 5MP Board Level Camera, USB3.0, FPC interface, Color, C-mount. USB3.0 supports FPC connection to meet limited spatial requirements. Supports senor and mainboard separation for complex spatial requirements.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CB050-11UC-C
Brand	Hikrobot
Compatibility	USB3 Vision, GenlCam

Sensor and imaging

Sensor type	CMOS, global shutter
Sensor model	Sony® IMX264
Pixel size	3.45 μm × 3.45 μm
Sensor size	2/3"
Resolution	2448 × 2048
Max. frame rate	60 fps @ 2448 × 2048
Dynamic range	72 dB
SNR	40.2 dB
Gain	0 dB to 24 dB
Exposure time	UltraShort exposure mode: 1 μs to 14 μs; Standard exposure mode: 15 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Pixel format	Mono 8/10/12; Bayer RG 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2
Reverse image	Supports horizontal and vertical reverse image output
Mono/color	Color

Interfaces and I/O

Data interface	USB3.0, compatible with USB2.0
Digital I/O	Bi-directional non-isolated I/O × 2 (Line 2, Line 5)
Client software	MVS or third-party software meeting with USB3 Vision Protocol

Environment and compliance

Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 80% RH (no condensation)
Certification	CE, RoHS, KC
Certifications	CE, RoHS, KC

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux

Electrical

Power supply	5 VDC (USB3.0 provides power supply)
Power consumption	Typ. 2.8 W @ 5 VDC (USB3.0 provides power supply)

Mechanical

Lens mount	C-mount
Dimension	29 mm × 29 mm × 31.3 mm (1.1" × 1.1" × 1.2")
Weight	Approx. 37 g (0.08 lb.)
Shipping weight (estimated)	0.15 kg

Downloads

Features

USB3.0 supports FPC connection to meet limited spatial requirements.
Supports senor and mainboard separation for complex spatial requirements.
Supports auto or manual adjustment for gain, exposure time, white balance, LUT, Gamma correction, etc.
Adopts image interpolation algorithm for color reproduction.
Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on protocol and standard.
