Hikrobot MV-CB020-60UM-S 2MP Board Level Camera, USB3, Mono, M12-mount
  • Hikrobot MV-CB020-60UM-S 2MP Board Level Camera, USB3, Mono, M12-mount
  • MV-CB020-60UM-S dimensions (mm)

Board-level cameras

Hikrobot MV-CB020-60UM-S 2MP Board Level Camera, USB3, Mono, M12-mount

Model MV-CB020-60UM-SHikrobot

  • Resolution1624 × 1240
  • SensorCMOS, global shutter
  • InterfaceUSB 3.0, compatible with USB 2.0
  • Speed179.9 fps @ 1624 × 1240 Mono 8
  • Lens mountM12
  • Mono / colourMono
$229.00

Ships in 2-3 weeks

0.14 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineerBrowse Board-level cameras

MV-CB020-60UM-S: resolution 1624 x 1240; sensor type CMOS, global shutter; sensor size 1/2.53"; max. frame rate 179.9 fps @ 1624 x 1240 Mono 8; lens mount M12-mount.

Hikrobot MV-CB020-60UM-S 2MP Board Level Camera, USB3, Mono, M12-mount. Supports auto and manual adjustment for gain, exposure control, white balance, LUT, etc. Adopts image interpolation algorithm for color camera to have better color correction.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CB020-60UM-S
BrandHikrobot
CompatibilityUSB3 Vision, GenICam

Sensor and imaging

Sensor typeCMOS, global shutter
Sensor modelStacked BSI
Pixel formatMono 8/10/10Packed/12/12Packed
Pixel size3.45 μm × 3.45 μm
Sensor size1/2.53"
Resolution1624 × 1240
Max. frame rate179.9 fps @ 1624 × 1240 Mono 8
Dynamic range68.6 dB
SNR44.1 dB
Gain0 dB to 24 dB
Exposure time23 μs to 10 sec
Exposure modeOff/ Once/ Continuous exposure mode
Mono/colorMono
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interfaceUSB 3.0, compatible with USB 2.0
Digital I/OBi-directional non-isolated I/O × 2 (Line 2, Line 5)
Client softwareMVS or third-party software with USB3 Vision Protocol

Environment and compliance

TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 80% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux

Electrical

Power supplyUSB 3.0 power supply
Power consumptionTyp. 1.5 W @ 5 VDC

Mechanical

Lens mountM12-mount
Dimension (without lens)35 mm × 35 mm × 8.6 mm (1.4" × 1.4" × 0.3")
WeightApprox. 30 g (0.07 lb.)
Shipping weight (estimated)0.14 kg

Engineering data

Field of view and resolution with the MV-CB020-60UM-S

Worked out from this camera's own sensor: the field of view and the size one pixel covers on the part, for common lenses and working distances.

Sensor area5.6 × 4.28 mm1/2.53" optical format
Lens image circle needed≥ Ø 7 mmM12
Pixel pitch3.45 µm1624 x 1240 px
With a 6 mm lens at 500 mm467 × 357 mm0.287 mm per pixel
Dynamic range68.6 dB
SNR44.1 dB
Power consumption1.5 Wtyp. at 5 V DC
ShutterGlobal
Exposure range23 µs to 10 s
Weight30 gapprox.
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
2.8 mm600 × 459 mm0.369 mm per pixel1000 × 764 mm0.616 mm per pixel2000 × 1529 mm1.232 mm per pixel
4 mm420 × 321 mm0.259 mm per pixel700 × 535 mm0.431 mm per pixel1400 × 1070 mm0.862 mm per pixel
6 mm280 × 214 mm0.172 mm per pixel467 × 357 mm0.287 mm per pixel933 × 713 mm0.575 mm per pixel
8 mm210 × 160 mm0.129 mm per pixel350 × 268 mm0.216 mm per pixel700 × 535 mm0.431 mm per pixel
12 mm140 × 107 mm0.086 mm per pixel233 × 178 mm0.144 mm per pixel467 × 357 mm0.287 mm per pixel
16 mm105 × 80.2 mm0.065 mm per pixel175 × 134 mm0.108 mm per pixel350 × 268 mm0.216 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band; supply voltage and power per channel; the camera's printed connector for cables.

Build the full system with this part

Lenses for this M12 camera

Covers up to 9.4 mm diagonal; this camera's sensor is 7 mm

Covers up to 9 mm diagonal; this camera's sensor is 7 mm

Covers up to 9 mm diagonal; this camera's sensor is 7 mm

Covers up to 9 mm diagonal; this camera's sensor is 7 mm

Covers up to 8 mm diagonal; this camera's sensor is 7 mm

Covers up to 9 mm diagonal; this camera's sensor is 7 mm

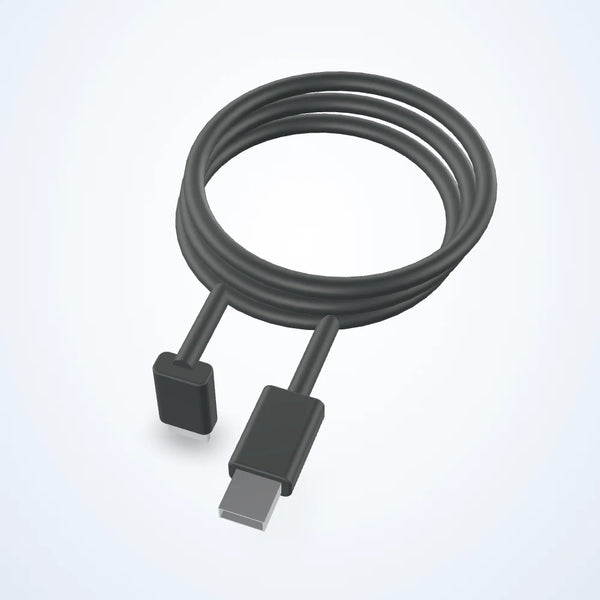

Cables and frame grabbers
