M12 board lenses

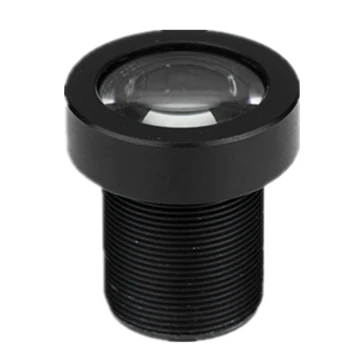

3.37mm, F2.8, 1/2", 5MP Lens, M12-Mount (LS-MBL-0110)
Model LS-MBL-0110
- Focal length3.37 mm
- MountM12
- Sensor1/2"
- Working distance100 ~ 850 mm
- ApertureF2.8
$39.00
Ships in 2-3 weeks
0.13 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
3.37mm, F2.8, 1/2", 5MP Lens, M12-Mount. Optimization design for machine vision High resolution, high consistency of picture definition
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MBL-0110 |
|---|
Optics
| Focal length | 3.37 mm |
|---|---|
| F-number | F2.8 |
| Image size | Φ8 mm(1/2'') |
| TV distortion | <1% |
| Working distance range | 100 ~ 850 mm |
| Field of view | D(8.0 mm):100°; H(6.4 mm):86°; V(4.8 mm):70° |
| TTL | 23.7 ~ 24.3 mm |
Environment and compliance
| Temperature | -10 ~ 50°C |
|---|---|
| Certification | RoHS2.0 |

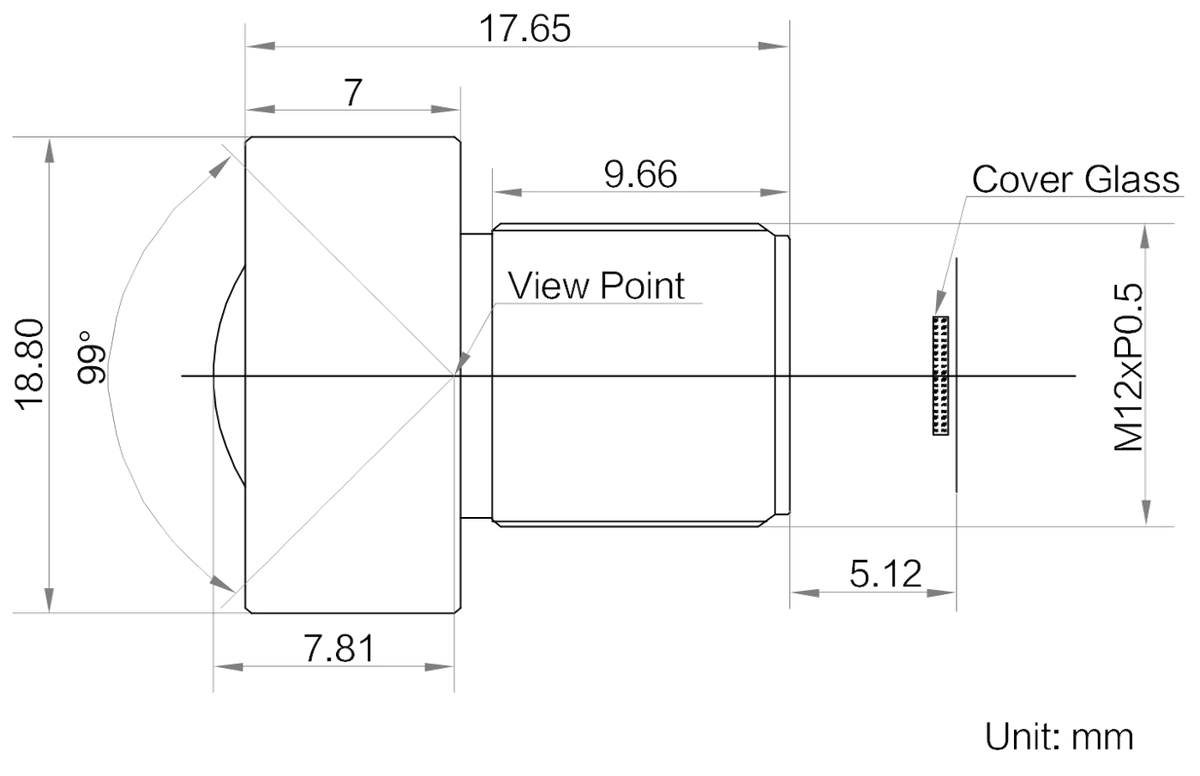

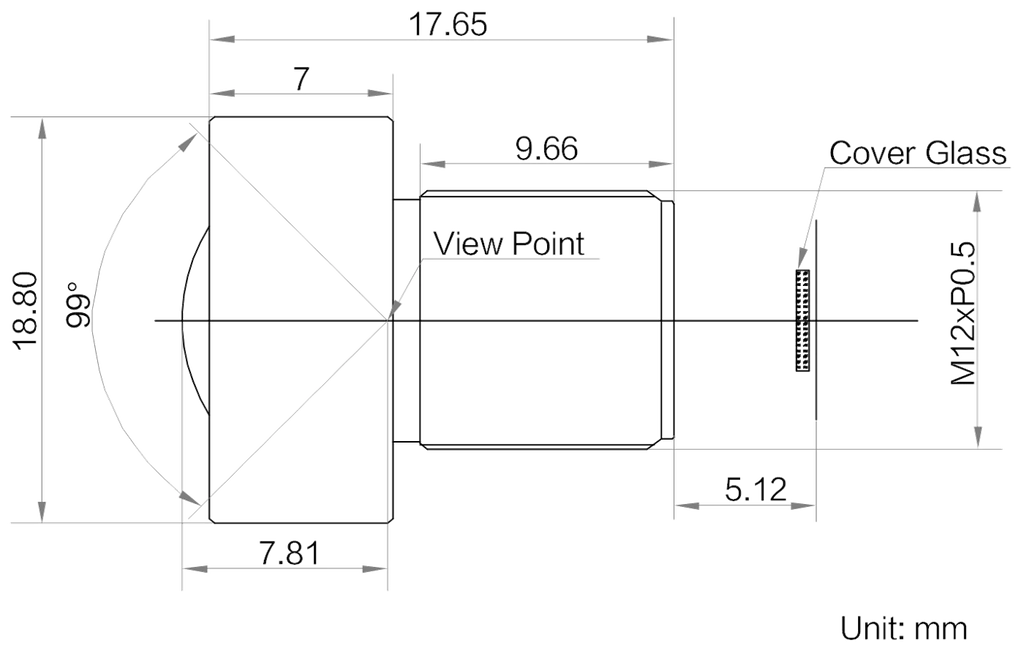

Mechanical
| Mount | S-Mount |
|---|---|
| Dimension | Φ18.8 mm × 17.65 mm |
| Shipping weight (estimated) | 0.13 kg |
Other models in the LS-MBL-S14 series lenses series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-MBL-0111 | 6 mm · M12 | $39.00 | Ships in 2-3 weeks | View |
| LS-MBL-0112 | 8 mm · M12 | $39.00 | Ships in 2-3 weeks | View |
| LS-MBL-0113 | 12 mm · M12 | $39.00 | Ships in 2-3 weeks | View |
| LS-MBL-0114 | 16 mm · M12 | $39.00 | Ships in 2-3 weeks | View |
| LS-MBL-0115 | 25 mm · M12 | $39.00 | Ships in 2-3 weeks | View |
