M12 board lenses

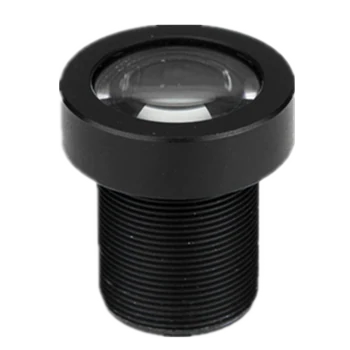

12mm, F2.8, 1/1.8", 5MP Lens, M12-Mount (LS-MBL-0113)
Model LS-MBL-0113
- Focal length12 mm
- MountM12
- Sensor1/1.8"
- Working distance100 ~ 850 mm
- ApertureF2.8
$39.00
Ships in 2-3 weeks
0.13 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
12mm, F2.8, 1/1.8", 5MP Lens, M12-Mount. Optimization design for machine vision High resolution, high consistency of picture definition
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MBL-0113 |
|---|
Optics
| Focal length | 12 mm |
|---|---|
| F-number | F2.8 |
| Image size | Φ9 mm(1/1.8'') |
| TV distortion | <0.2% |
| Working distance range | 100 ~ 850 mm |
| Field of view | D(8.86 mm):41°; H(7.37 mm):34°; V(4.91 mm):23° |
| TTL | 25.4 ~ 26.9 mm |
Environment and compliance
| Temperature | -10 ~ 50°C |
|---|---|
| Certification | RoHS2.0 |
Mechanical
| Mount | S-Mount |
|---|---|

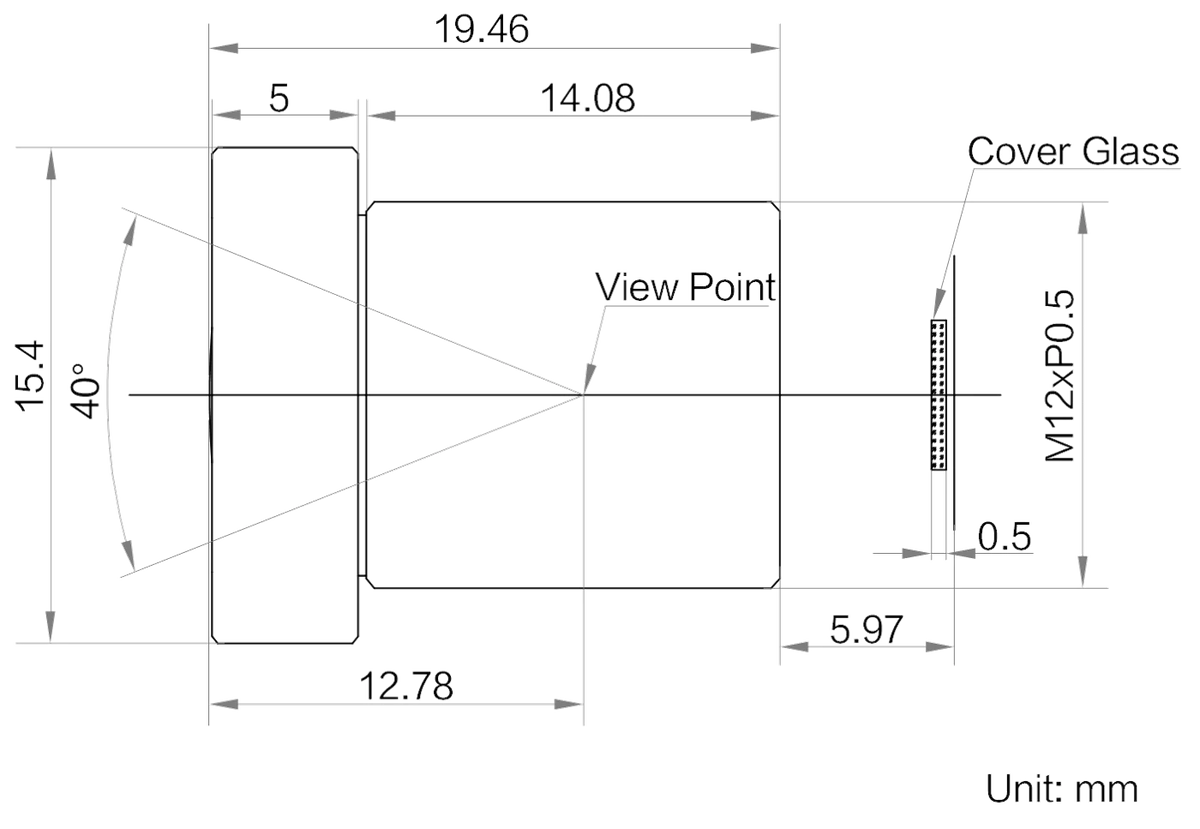

| Dimension | Φ15.4 mm × 19.46 mm |
| Shipping weight (estimated) | 0.13 kg |
Other models in the LS-MBL-S14 series lenses series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-MBL-0110 | 3.37 mm · M12 | $39.00 | Ships in 2-3 weeks | View |
| LS-MBL-0111 | 6 mm · M12 | $39.00 | Ships in 2-3 weeks | View |
| LS-MBL-0112 | 8 mm · M12 | $39.00 | Ships in 2-3 weeks | View |
| LS-MBL-0114 | 16 mm · M12 | $39.00 | Ships in 2-3 weeks | View |
| LS-MBL-0115 | 25 mm · M12 | $39.00 | Ships in 2-3 weeks | View |
