M12 board lenses

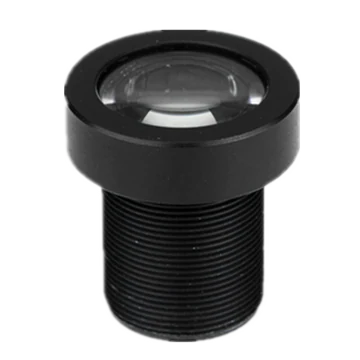

LS-MBL-S14 series lenses
- 6 models
- from $39.00
- Series LS-MBL-S14
The LS-MBL-S14 series lenses is a range of 6 m12 board lenses from LumaSpec Vision, from $39.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Mount
- M12
- Image circle
- Up to 8 mm, 8-11 mm
- Focal length
- Under 6 mm, 6-12 mm, 12-25 mm, 25-50 mm
- Resolution
- 5 MP
- Sensor format
- 1/2", 1/1.8" - 1/1.56"
Features
- Optimization design for machine vision
- High resolution, high consistency of picture definition
- Low Distortion, high relative illumination
- S-Mount (M12 * 0.5), easy system integration
- High resolution, High consistency of picture definition
- Low Distortion, High relative illumination
- S-Mount (M12 * 0.5), Easy system integration
- Low Distortion, high relative illuminationh
All 6 models in the LS-MBL-S14 series lenses
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-MBL-0110 | 3.37 mm | 100 ~ 850 mm | Φ18.8 mm × 17.65 mm | Φ8 mm(1/2'') | $39.00 | View |
| LS-MBL-0111 | 6 mm | 100 ~ 850 mm | Φ20 mm×22.48 mm | Φ9 mm(1/1.8'') | $39.00 | View |
| LS-MBL-0112 | 8 mm | 120 ~ 900 mm | Φ17 mm×19 mm | Φ9 mm(1/1.8'') | $39.00 | View |
| LS-MBL-0113 | 12 mm | 100 ~ 850 mm | Φ15.4 mm × 19.46 mm | Φ9 mm(1/1.8'') | $39.00 | View |
| LS-MBL-0114 | 16 mm | 100 ~ 850 mm | Φ14 mm × 13.78 mm | Φ9 mm(1/1.8'') | $39.00 | View |
| LS-MBL-0115 | 25 mm | 200 ~ 950 mm | Φ14 mm×20.22 mm | Φ9 mm(1/1.8'') | $39.00 | View |
