M12 board lenses

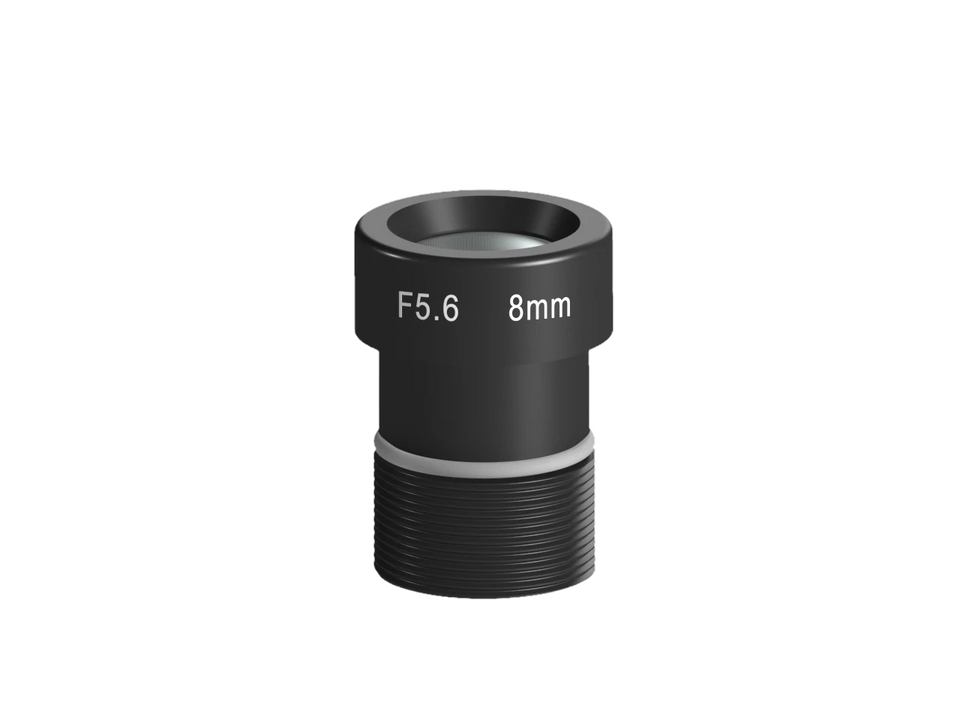

LS-MBL-S15 series lenses 1/1.7" 12MP
- 5 models
- from $39.00
- Series LS-MBL-S15
The LS-MBL-S15 series lenses 1/1.7" 12MP is a range of 5 m12 board lenses from LumaSpec Vision, from $39.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Image circle
- 8-11 mm
- Focal length
- 6-12 mm, 12-25 mm, 25-50 mm
- Resolution
- 12 MP
- Mount
- M12
- Sensor format
- 1/1.8" - 1/1.56"
Features
- Optimized for industrial machine-vision working distances
- 12 MP high resolution with highly consistent sharpness across the image
- Low distortion with high edge brightness
- S-mount (M12*0.5) for easy system integration
- S-mount (M12×0.5) for easy system integration
All 5 models in the LS-MBL-S15 series lenses 1/1.7" 12MP
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-MBL-0116 | 8 mm | Φ14 ×19.4 mm | 24.05 ~ 24.65 mm | ≤ 1.51% | $39.00 | View |
| LS-MBL-0117 | 10 mm | Φ14 × 17.29 mm | 21.64 ~ 22.53 mm | ≤ 0.12% | $39.00 | View |
| LS-MBL-0118 | 12 mm | Φ14 × 17.8 mm | 22.53 ~ 23.99 mm | ≤ 0.12% | $39.00 | View |
| LS-MBL-0119 | 16 mm | Φ14 × 18.93 mm | 23.28 ~ 26.08 mm | ≤ 0.15% | $39.00 | View |
| LS-MBL-0120 | 25 mm | Φ14 × 19.36 mm | 23.05 ~ 31.6 mm | ≤ 0.12% | $39.00 | View |
