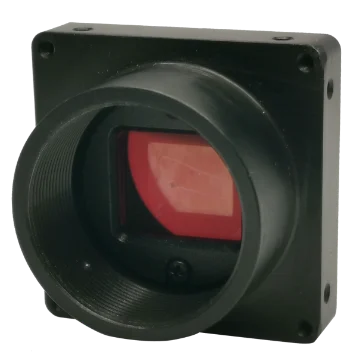

Hikrobot MV-CB016-10UC-C 1.6MP Board Level Camera, USB3, IMX273, Color, C-mount

Model MV-CB016-10UC-CHikrobot

Resolution1440 × 1080
SensorCMOS, global shutter
InterfaceUSB 3.0
Lens mountC-mount
Mono / colourColor
Pixel size3.45 μm × 3.45 μm

$209.00

Ships in 2-3 weeks

0.14 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CB016-10UC-C 1.6MP Board Level Camera, USB3, IMX273, Color, C-mount. Supports auto and manual adjustment for gain, exposure control, white balance, LUT, etc. Adopts image interpolation algorithm for color camera to have better color correction.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CB016-10UC-C
Brand	Hikrobot
Compatibility	USB3 Vision, GenICam

Sensor and imaging

Sensor type	CMOS, global shutter
Sensor model	Sony® IMX273
Pixel size	3.45 μm × 3.45 μm
Sensor size	1/2.9"
Resolution	1440 × 1080
Max. frame rate	165.4 fps @ 1440 × 1080 Bayer RG 8 (ADC 12); 249.1 fps @ 1440 × 1080 Bayer RG 8 (ADC 8)
Dynamic range	71.5 dB
SNR	39.9 dB
Gain	0 dB to 17 dB
Exposure time	UltraShort exposure mode: 1 μs to 14 μs; Standard exposure mode: 15 μs to 10 sec
Exposure mode	Off/ Once/ Continuous exposure mode
Mono/color	Color
Pixel format	Mono 8/10/12; Bayer RG 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8
Binning	Supports 1 × 1, 2 × 2
Decimation	Supports 1 × 1, 2 × 2
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	USB 3.0
Digital I/O	Bi-directional non-isolated I/O × 2 (Line 2, Line 5)
Client software	MVS or third-party software with USB3 Vision Protocol

Environment and compliance

Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 80% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux

Electrical

Power supply	USB 3.0 power supply
Power consumption	Typ. 1.9 W @ 5 VDC

Mechanical

Lens mount	C-mount
Weight	Approx. 30 g (0.07 lb.)

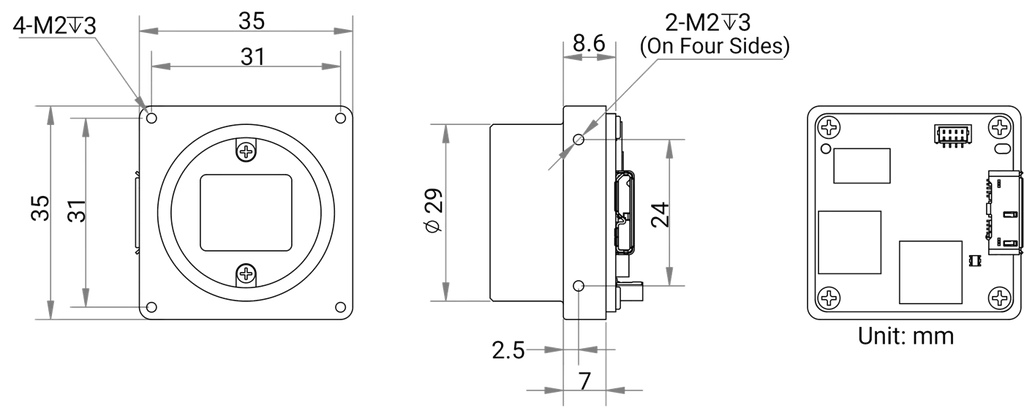

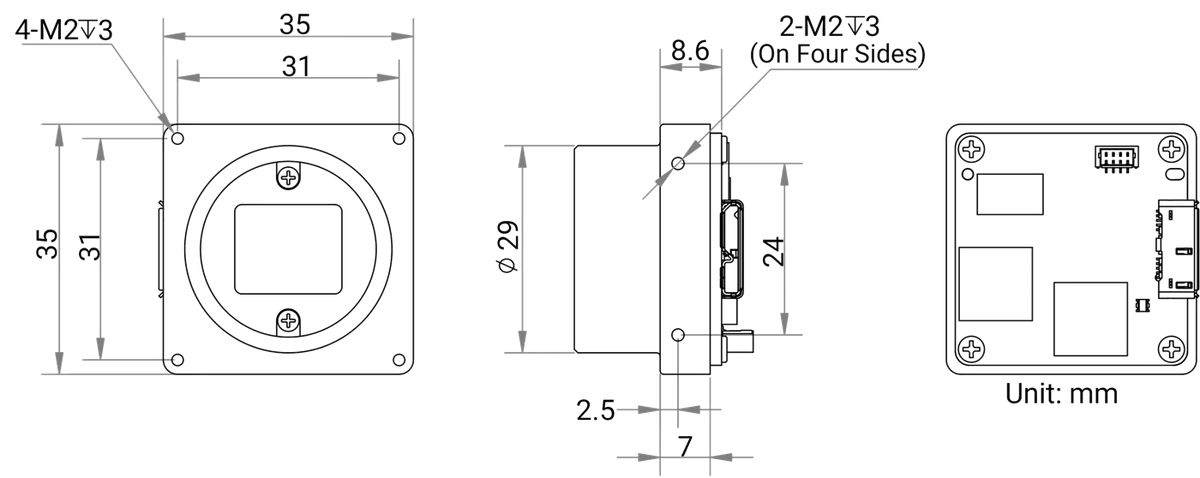

Dimension (without lens)	35 mm × 35 mm × 8.6 mm (1.4" × 1.4" × 0.3")
Shipping weight (estimated)	0.14 kg

Downloads

Features

Supports auto and manual adjustment for gain, exposure control, white balance, LUT, etc.
Adopts image interpolation algorithm for color camera to have better color correction.
Power supply and data transmission via USB3.0 interface.
Compatible with USB3 Vision Protocol, GenlCam standard, and the third-party software based on these protocol and standard.
