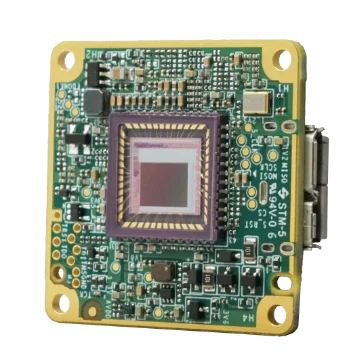

Hikrobot MV-CB013-A0UC-S 1.3MP Board Level Camera, USB3, color, M12-mount

Model MV-CB013-A0UC-SHikrobot

Resolution1280 × 1024
SensorCMOS, global shutter
InterfaceUSB3.0
Speed201 fps @1280 × 1024
Lens mountM12
Mono / colourColor

$199.00

Ships in 2-3 weeks

0.14 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CB013-A0UC-S 1.3MP Board Level Camera, USB3, color, M12-mount. Compact design for flexible installation. Supports auto or manual adjustment of gain, exposure time, white balance, Gamma correction, LUT, etc.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CB013-A0UC-S
Brand	Hikrobot
Compatibility	USB3 Vision, GenICam

Sensor and imaging

Sensor type	CMOS, global shutter
Pixel size	4.8 μm × 4.8 μm
Sensor size	1/2"
Resolution	1280 × 1024
Max. frame rate	201 fps @1280 × 1024
Dynamic range	53 dB
SNR	40 dB
Gain	0 dB to 16 dB
Exposure time	9 μs to 10 sec
Exposure mode	Off/ Once/ Continuous exposure mode
Mono/color	Color
Pixel format	Mono 8/10/12, Bayer GB 8/10/10p/12/12p; YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	USB3.0
Digital I/O	Bi-directional non-isolated I/O × 2 (Line 2, Line 5)
Client software	MVS or third-party software compatible with USB3 Vision Protocol

Environment and compliance

Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity	20% to 80% RH, non-condensing
Certification	CE, FCC, RoHS, KC

Computing

Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux, and 64-bit MacOS

Electrical

Power supply	USB3.0 power supply
Power consumption	Typ. 2.8 W@5 VDC (USB3.0 provides power supply)

Mechanical

Lens mount	M12-mount
Dimension	35 mm × 35 mm × 8.6 mm (1.4" × 1.4" × 0.3")
Weight	Approx. 30 g (0.07 lb.)
Shipping weight (estimated)	0.14 kg

Downloads

Features

Compact design for flexible installation.
Supports auto or manual adjustment of gain, exposure time, white balance, Gamma correction, LUT, etc.
Adopts image interpolation algorithm for color cameras to have better color correction.
Adopts USB3.0 interface to provide power supply and transmit data.
Compatible with USB3 Vision Protocol, GenlCam standard, and third-party software based on these protocol and standard.
