Board-level cameras

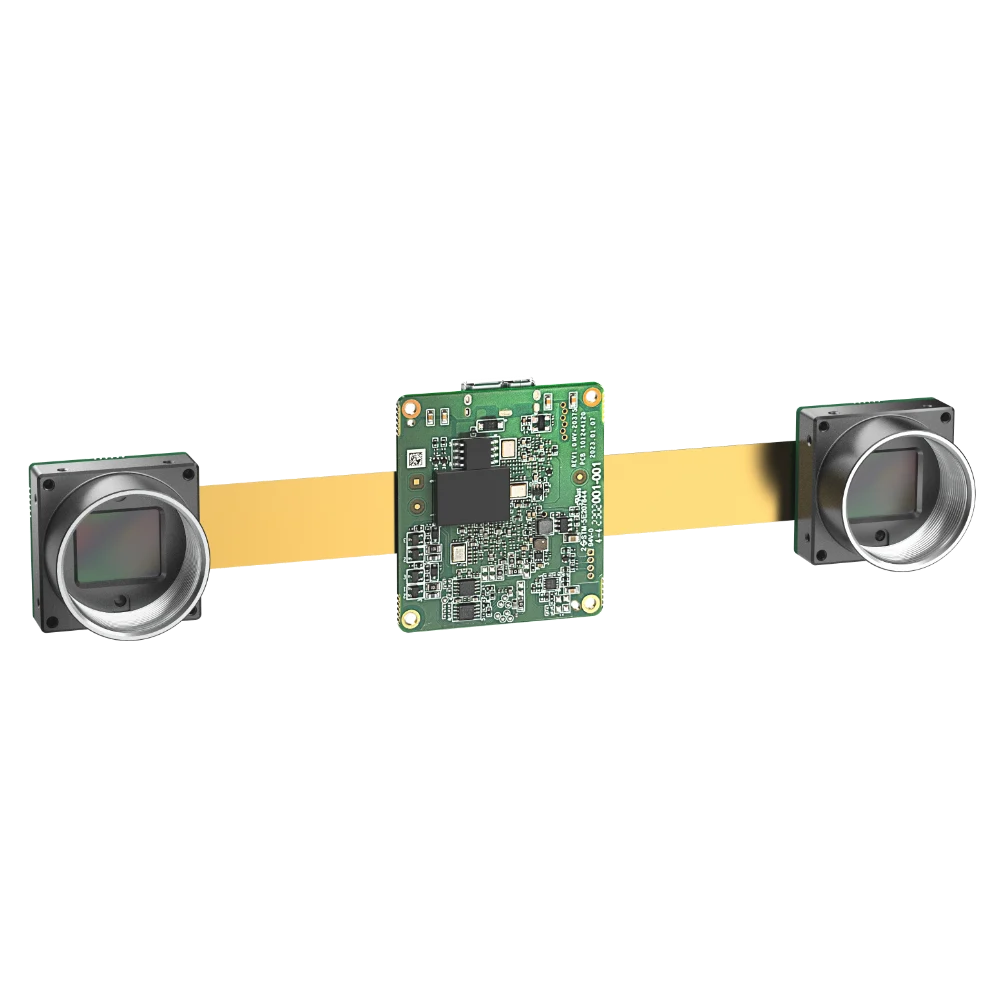

Hikrobot MV-CB013-A0UMM-C 1.3 MP USB 3.0 board-level camera, Binocular (stereo), Mono, Type-C port
Model MV-CB013-A0UMM-CHikrobot
- Resolution1280 × 1024 × 2
- SensorCMOS, global shutter
- InterfaceUSB3.0
- Speed100 fps @1280 × 1024 × 2 Mono 8
- Lens mountC-mount
- Mono / colourMono
$199.00
Ships in 2-3 weeks
0.16 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-CB013-A0UMM-C 1.3 MP USB 3.0 board-level camera, Binocular. Sensor and mainboard can be separated to fit complex spaces Two sensor boards for a wide field of view and richer scene information
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-CB013-A0UMM-C |
|---|---|
| Brand | Hikrobot |
| Compatibility | USB3 Vision, GenlCam |
Sensor and imaging
| Sensor type | CMOS, global shutter |
|---|---|
| Pixel size | 4.8 μm×4.8 μm |
| Sensor size | 1/2" |
| Resolution | 1280 × 1024 × 2 |
| Max. frame rate | 100 fps @1280 × 1024 × 2 Mono 8 |
| Dynamic range | 53 dB |
| SNR | 40 dB |
| Gain | 0 dB ~16 dB |
| Exposure time | 9 μs ~ 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse image | Supports horizontal and vertical reverse image output |
Interfaces and I/O
| Data interface | USB3.0 |
|---|---|
| Digital I/O | Bi-directional non-isolated I/O × 2 (Line 2, Line 5) |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol |
Environment and compliance
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
|---|---|
| Certification | RoHS, CE, KC |
Computing
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
|---|
Electrical
| Power supply | USB3.0 power supported |
|---|---|
| Power consumption | 2.3 W@5 VDC |
Mechanical
| Lens mount | C-Mount |
|---|---|

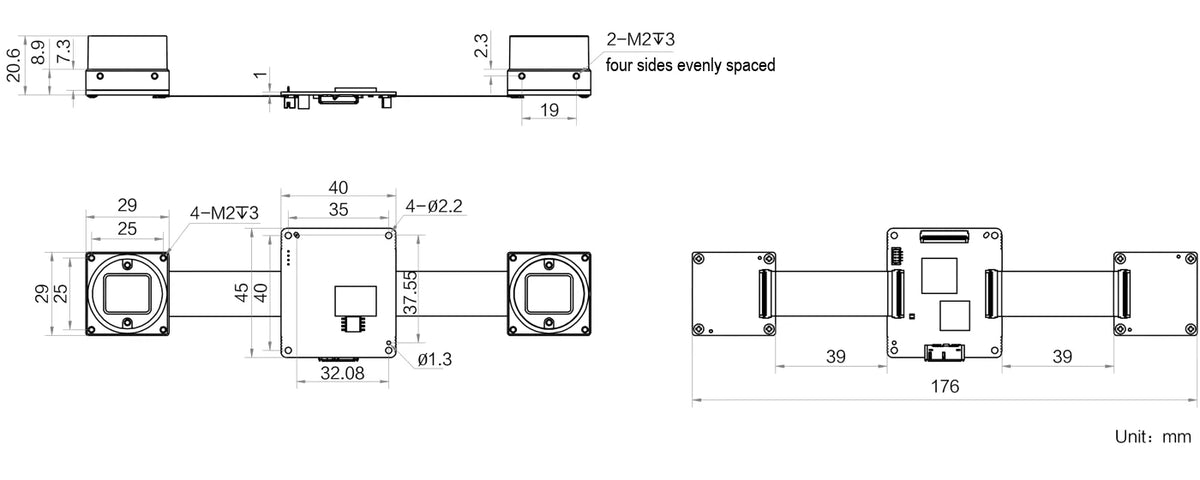

| Dimension | Sensor board (without front cover): 29 mm × 29 mm × 1.6 mm; Main board: 45 mm × 40 mm × 1 mm; FPC length: 39 mm |
| Weight | Approx. 42 g |
| Shipping weight (estimated) | 0.16 kg |
