Hikrobot MV-CB120-10UM-S V4 12MP Board Level Camera, USB3, IMX226, Mono, M12-mount
  • Hikrobot MV-CB120-10UM-S V4 12MP Board Level Camera, USB3, IMX226, Mono, M12-mount
  • MV-CB120-10UM-S V4 dimensions (mm)

Board-level cameras

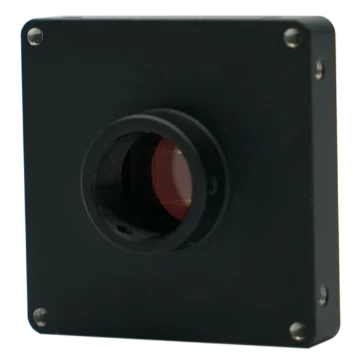

Hikrobot MV-CB120-10UM-S V4 12MP Board Level Camera, USB3, IMX226, Mono, M12-mount

Model MV-CB120-10UM-S V4Hikrobot

  • Resolution4032 × 3036
  • SensorCMOS, rolling shutter
  • InterfaceUSB 3.0
  • Speed30 fps @ 4032 × 3036 Mono 8
  • Lens mountM12
  • Mono / colourMono
$569.00

Ships in 2-3 weeks

0.14 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Available in the US - comparable cameras:

Ask an engineerBrowse Board-level cameras

MV-CB120-10UM-S V4: resolution 4032 x 3036; sensor type CMOS, rolling shutter; sensor size 1/1.7"; max. frame rate 30 fps @ 4032 x 3036 Mono 8; lens mount M12-mount.

Hikrobot MV-CB120-10UM-S V4 12MP Board Level Camera, USB3, IMX226, V4, Mono, M12-mount. Supports auto and manual adjustment for gain, exposure control, white balance, Gamma, LUT, etc. Adopts image interpolation algorithm for color camera to have better color correction.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CB120-10UM-S V4
BrandHikrobot
CompatibilityUSB3 Vision, GenICam

Sensor and imaging

Sensor typeCMOS, rolling shutter
Sensor modelSony® IMX226
Pixel size1.85 μm × 1.85 μm
Sensor size1/1.7"
Resolution4032 × 3036
Max. frame rate30 fps @ 4032 × 3036 Mono 8
Dynamic range64.6 dB
SNR39.9 dB
Gain0 dB to 20 dB
Exposure time33 μs to 2 sec
Exposure modeSupports Off/ Once/ Continuous exposure mode, and Global Reset.
Mono/colorMono
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interfaceUSB 3.0
Digital I/OBi-directional non-isolated I/O × 2 (Line 2, Line 5)
Client softwareMVS or third-party software with USB3 Vision Protocol

Environment and compliance

TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 80% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux

Electrical

Power supplyUSB 3.0 power supply
Power consumptionTyp. 1.5 W @ 5 VDC (USB power supply)

Mechanical

Lens mountM12-mount
Dimension35 mm × 35 mm × 8.6 mm (1.4" × 1.4" × 0.3")
WeightApprox. 30 g (0.07 lb.)
Shipping weight (estimated)0.14 kg

Engineering data

Field of view and resolution with the MV-CB120-10UM-S V4

Worked out from this camera's own sensor: the field of view and the size one pixel covers on the part, for common lenses and working distances.

Sensor area7.46 × 5.62 mm1/1.7" optical format
Lens image circle needed≥ Ø 9.3 mmM12
Pixel pitch1.85 µm4032 x 3036 px
With a 6 mm lens at 500 mm622 × 468 mm0.154 mm per pixel
Dynamic range64.6 dB
SNR39.9 dB
Power consumption1.5 Wtyp. at 5 V DC; USB power supply
ShutterRolling
Exposure range33 µs to 2 s
Weight30 gapprox.
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
2.8 mm799 × 602 mm0.198 mm per pixel1332 × 1004 mm0.33 mm per pixel2664 × 2007 mm0.661 mm per pixel
4 mm560 × 422 mm0.139 mm per pixel932 × 702 mm0.231 mm per pixel1865 × 1405 mm0.463 mm per pixel
6 mm373 × 281 mm0.093 mm per pixel622 × 468 mm0.154 mm per pixel1243 × 937 mm0.308 mm per pixel
8 mm280 × 211 mm0.069 mm per pixel466 × 351 mm0.116 mm per pixel932 × 702 mm0.231 mm per pixel
12 mm186 × 140 mm0.046 mm per pixel311 × 234 mm0.077 mm per pixel622 × 468 mm0.154 mm per pixel
16 mm140 × 105 mm0.035 mm per pixel233 × 176 mm0.058 mm per pixel466 × 351 mm0.116 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

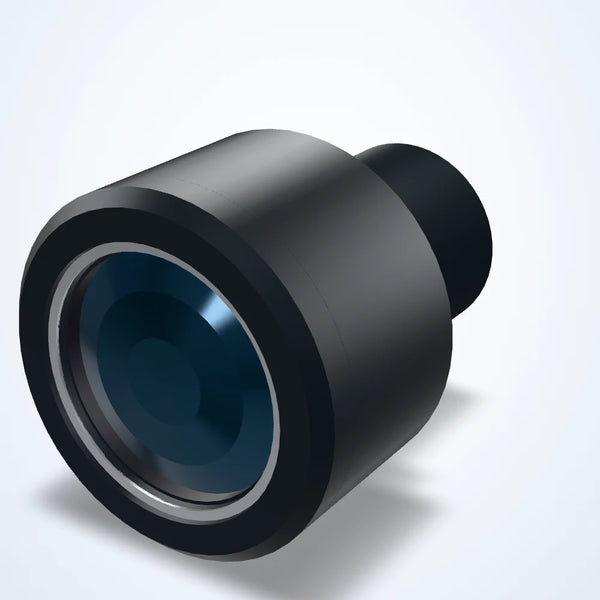

Lenses for this M12 camera

Covers up to 9.4 mm diagonal; this camera's sensor is 9.3 mm

Covers up to 9.4 mm diagonal; this camera's sensor is 9.3 mm

Covers up to 9.4 mm diagonal; this camera's sensor is 9.3 mm

Covers up to 9.4 mm diagonal; this camera's sensor is 9.3 mm

Covers up to 9.4 mm diagonal; this camera's sensor is 9.3 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 9.3 mm

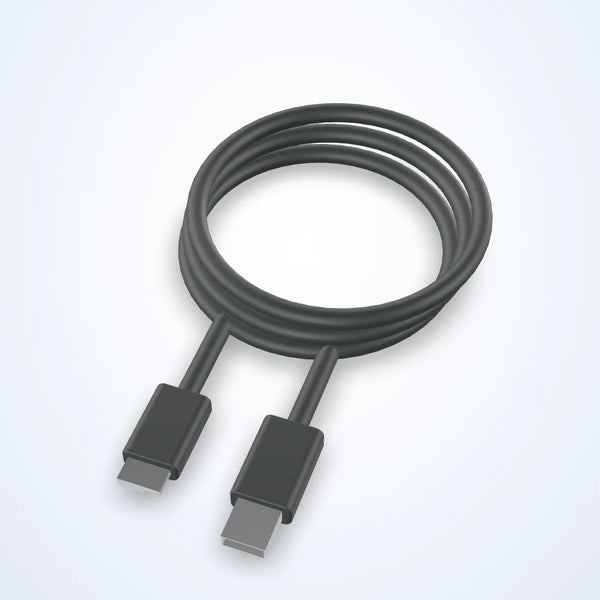

Cables and frame grabbers

Other models in the CB Series USB3.0 Board Cameras series

See all 38 models
ModelResolutionSensorInterfacePriceAvailabilityLink
MV-CB120-10UM-S V4This model4032 × 3036CMOS, rolling shutterUSB 3.0$569.00 Ships in 2-3 weeks
MV-CB020-60UC-S1624 × 1240CMOS, global shutterUSB 3.0, compatible with USB 2.0$229.00 Ships in 2-3 weeks View
MV-CB020-60UM-S1624 × 1240CMOS, global shutterUSB 3.0, compatible with USB 2.0$229.00 Ships in 2-3 weeks View
MV-CB020-60UC-B1624 × 1240CMOS, global shutterUSB 3.0, compatible with USB 2.0$229.00 Ships in 2-3 weeks View
MV-CB020-60UM-C1624 × 1240CMOS, global shutterUSB 3.0, compatible with USB 2.0$229.00 Ships in 2-3 weeks View
MV-CB020-60UC-C1624 × 1240CMOS, global shutterUSB 3.0, compatible with USB 2.0$229.00 Ships in 2-3 weeks View
MV-CB013-A0UM-B1280 × 1024CMOS, global shutterUSB3.0$239.00 Ships in 2-3 weeks View
MV-CB060-10UM-B3072 × 2048CMOS, rolling shutterUSB 3.0$239.00 Ships in 2-3 weeks View
MV-CB060-10UC-B3072 × 2048CMOS, rolling shutterUSB 3.0$239.00 Ships in 2-3 weeks View
MV-CB013-A0UM-C1280 × 1024CMOS, global shutterUSB3.0$259.00 Ships in 2-3 weeks View
MV-CB013-A0UC-C1280 × 1024CMOS, global shutterUSB3.0$259.00 Ships in 2-3 weeks View
MV-CB050-11UC-C2448 × 2048CMOS, global shutterUSB3.0, compatible with USB2.0$359.00 Ships in 2-3 weeks View
MV-CB050-60UM-C-F2448 × 2048CMOS, global shutterUSB 3.0, compatible with USB 2.0$359.00 Ships in 2-3 weeks View
MV-CB050-60UC-C-F2448 × 2048CMOS, global shutterUSB 3.0, compatible with USB 2.0$359.00 Ships in 2-3 weeks View
MV-CB050-60UC-B-F2448 × 2048CMOS, global shutterUSB 3.0, compatible with USB 2.0$359.00 Ships in 2-3 weeks View
MV-CB050-60UM-B-F2448 × 2048CMOS, global shutterUSB 3.0, compatible with USB 2.0$359.00 Ships in 2-3 weeks View
MV-CB060-10UM-C3072 × 2048CMOS, rolling shutterUSB 3.0$409.00 Ships in 2-3 weeks View
MV-CB060-10UM-S3072 × 2048CMOS, rolling shutterUSB 3.0$409.00 Ships in 2-3 weeks View
MV-CB060-10UC-C3072 × 2048CMOS, rolling shutterUSB 3.0$409.00 Ships in 2-3 weeks View
MV-CB060-10UC-S3072 × 2048CMOS, rolling shutterUSB 3.0$409.00 Ships in 2-3 weeks View
MV-CB120-10UM-C V44032 × 3036CMOS, rolling shutterUSB 3.0$409.00 Ships in 2-3 weeks View
MV-CB120-10UC-C V44032 × 3036CMOS, rolling shutterUSB 3.0$409.00 Ships in 2-3 weeks View
MV-CB120-10UM-B V44032 × 3036CMOS, rolling shutterUSB 3.0$569.00 Ships in 2-3 weeks View
MV-CB120-10UC-B V44032 × 3036CMOS, rolling shutterUSB 3.0$569.00 Ships in 2-3 weeks View
MV-CB120-10UC-S V44032 × 3036CMOS, rolling shutterUSB 3.0$569.00 Ships in 2-3 weeks View
