Hikrobot MV-CB120-10UC-B V4 12MP Board Level Camera, USB3, IMX226, Color, Bare Board

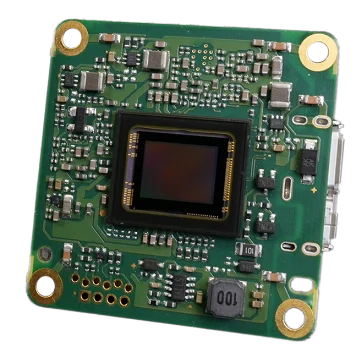

  • Hikrobot MV-CB120-10UC-B V4 12MP Board Level Camera, USB3, IMX226, Color, Bare Board

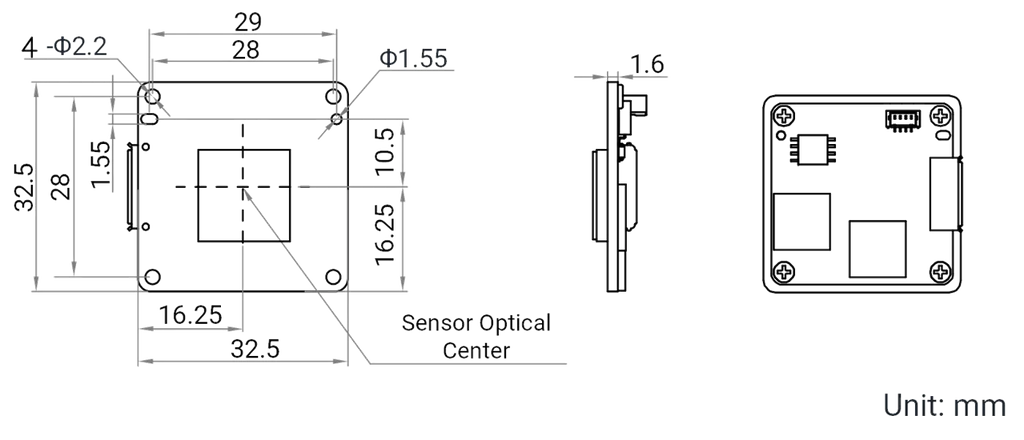

  • MV-CB120-10UC-B V4 dimensions (mm)

Board-level cameras

Hikrobot MV-CB120-10UC-B V4 12MP Board Level Camera, USB3, IMX226, Color, Bare Board

Model MV-CB120-10UC-B V4Hikrobot

  • Resolution4032 × 3036
  • SensorCMOS, rolling shutter
  • InterfaceUSB 3.0
  • Speed30 fps @ 4032 × 3036 Bayer RG 8
  • Lens mountNone (bare board)
  • Mono / colourColor
$569.00

Ships in 2-3 weeks

0.11 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Available in the US - comparable models:

Ask an engineerBrowse Board-level cameras

MV-CB120-10UC-B V4: resolution 4032 x 3036; sensor type CMOS, rolling shutter; sensor size 1/1.7"; data interface USB 3.0; mono/color Color.

Hikrobot MV-CB120-10UC-B V4 12MP Board Level Camera, USB3, IMX226, V4, Color, Bare Board. Supports auto and manual adjustment for gain, exposure control, white balance, Gamma, LUT, etc. Adopts image interpolation algorithm for color camera to have better color correction.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CB120-10UC-B V4
BrandHikrobot
CompatibilityUSB3 Vision, GenICam

Sensor and imaging

Sensor typeCMOS, rolling shutter
Sensor modelSony® IMX226
Pixel size1.85 μm × 1.85 μm
Sensor size1/1.7"
Resolution4032 × 3036
Max. frame rate30 fps @ 4032 × 3036 Bayer RG 8
Dynamic range64.6 dB
SNR39.9 dB
Gain0 dB to 20 dB
Exposure time33 μs to 2 sec
Exposure modeSupports Off/ Once/ Continuous exposure mode, and Global Reset.
Mono/colorColor
Pixel formatMono8/10/12; Bayer RG 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB8, BGR8
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interfaceUSB 3.0
Digital I/OBi-directional non-isolated I/O × 2 (Line 2, Line 5)
Client softwareMVS or third-party software with USB3 Vision Protocol

Environment and compliance

TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 80% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux

Electrical

Power supplyUSB 3.0 power supply
Power consumptionTyp. 2 W @ 5 VDC (USB power supply)

Mechanical

Dimension32.5 mm × 32.5 mm × 1.6 mm (1.3" × 1.3" × 0.1")
WeightApprox. 10 g (0.02 lb.)
Shipping weight (estimated)0.11 kg

Engineering data

Field of view and resolution with the MV-CB120-10UC-B V4

Worked out from this camera's own sensor: the field of view and the size one pixel covers on the part, for common lenses and working distances.

Sensor area7.46 × 5.62 mm1/1.7" optical format
Lens image circle needed≥ Ø 9.3 mmNone (bare board)
Pixel pitch1.85 µm4032 x 3036 px
With a 16 mm lens at 500 mm233 × 176 mm0.058 mm per pixel
Dynamic range64.6 dB
SNR39.9 dB
Power consumption2 Wtyp. at 5 V DC; USB power supply
ShutterRolling
Exposure range33 µs to 2 s
Weight10 gapprox.
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
8 mm280 × 211 mm0.069 mm per pixel466 × 351 mm0.116 mm per pixel932 × 702 mm0.231 mm per pixel
12 mm186 × 140 mm0.046 mm per pixel311 × 234 mm0.077 mm per pixel622 × 468 mm0.154 mm per pixel
16 mm140 × 105 mm0.035 mm per pixel233 × 176 mm0.058 mm per pixel466 × 351 mm0.116 mm per pixel
25 mm89.5 × 67.4 mm0.022 mm per pixel149 × 112 mm0.037 mm per pixel298 × 225 mm0.074 mm per pixel
35 mm63.9 × 48.2 mm0.016 mm per pixel107 × 80.3 mm0.026 mm per pixel213 × 161 mm0.053 mm per pixel
50 mm44.8 × 33.7 mm0.011 mm per pixel74.6 × 56.2 mm0.019 mm per pixel149 × 112 mm0.037 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band; supply voltage and power per channel; the camera's printed connector for cables.

Build the full system with this part

Cables and frame grabbers

Other models in the CB Series USB3.0 Board Camera series

See all 38 models
ModelResolutionSensorInterfacePriceAvailabilityLink
MV-CB120-10UC-B V4This model4032 × 3036CMOS, rolling shutterUSB 3.0$569.00 Ships in 2-3 weeks
MV-CB020-60UC-S1624 × 1240CMOS, global shutterUSB 3.0, compatible with USB 2.0$229.00 Ships in 2-3 weeks View
MV-CB020-60UM-S1624 × 1240CMOS, global shutterUSB 3.0, compatible with USB 2.0$229.00 Ships in 2-3 weeks View
MV-CB020-60UC-B1624 × 1240CMOS, global shutterUSB 3.0, compatible with USB 2.0$229.00 Ships in 2-3 weeks View
MV-CB020-60UM-C1624 × 1240CMOS, global shutterUSB 3.0, compatible with USB 2.0$229.00 Ships in 2-3 weeks View
MV-CB020-60UC-C1624 × 1240CMOS, global shutterUSB 3.0, compatible with USB 2.0$229.00 Ships in 2-3 weeks View
MV-CB013-A0UM-B1280 × 1024CMOS, global shutterUSB3.0$239.00 Ships in 2-3 weeks View
MV-CB060-10UM-B3072 × 2048CMOS, rolling shutterUSB 3.0$239.00 Ships in 2-3 weeks View
MV-CB060-10UC-B3072 × 2048CMOS, rolling shutterUSB 3.0$239.00 Ships in 2-3 weeks View
MV-CB013-A0UM-C1280 × 1024CMOS, global shutterUSB3.0$259.00 Ships in 2-3 weeks View
MV-CB013-A0UC-C1280 × 1024CMOS, global shutterUSB3.0$259.00 Ships in 2-3 weeks View
MV-CB050-11UC-C2448 × 2048CMOS, global shutterUSB3.0, compatible with USB2.0$359.00 Ships in 2-3 weeks View
MV-CB050-60UM-C-F2448 × 2048CMOS, global shutterUSB 3.0, compatible with USB 2.0$359.00 Ships in 2-3 weeks View
MV-CB050-60UC-C-F2448 × 2048CMOS, global shutterUSB 3.0, compatible with USB 2.0$359.00 Ships in 2-3 weeks View
MV-CB050-60UC-B-F2448 × 2048CMOS, global shutterUSB 3.0, compatible with USB 2.0$359.00 Ships in 2-3 weeks View
MV-CB050-60UM-B-F2448 × 2048CMOS, global shutterUSB 3.0, compatible with USB 2.0$359.00 Ships in 2-3 weeks View
MV-CB060-10UM-C3072 × 2048CMOS, rolling shutterUSB 3.0$409.00 Ships in 2-3 weeks View
MV-CB060-10UM-S3072 × 2048CMOS, rolling shutterUSB 3.0$409.00 Ships in 2-3 weeks View
MV-CB060-10UC-C3072 × 2048CMOS, rolling shutterUSB 3.0$409.00 Ships in 2-3 weeks View
MV-CB060-10UC-S3072 × 2048CMOS, rolling shutterUSB 3.0$409.00 Ships in 2-3 weeks View
MV-CB120-10UM-C V44032 × 3036CMOS, rolling shutterUSB 3.0$409.00 Ships in 2-3 weeks View
MV-CB120-10UC-C V44032 × 3036CMOS, rolling shutterUSB 3.0$409.00 Ships in 2-3 weeks View
MV-CB120-10UM-B V44032 × 3036CMOS, rolling shutterUSB 3.0$569.00 Ships in 2-3 weeks View
MV-CB120-10UM-S V44032 × 3036CMOS, rolling shutterUSB 3.0$569.00 Ships in 2-3 weeks View
MV-CB120-10UC-S V44032 × 3036CMOS, rolling shutterUSB 3.0$569.00 Ships in 2-3 weeks View
