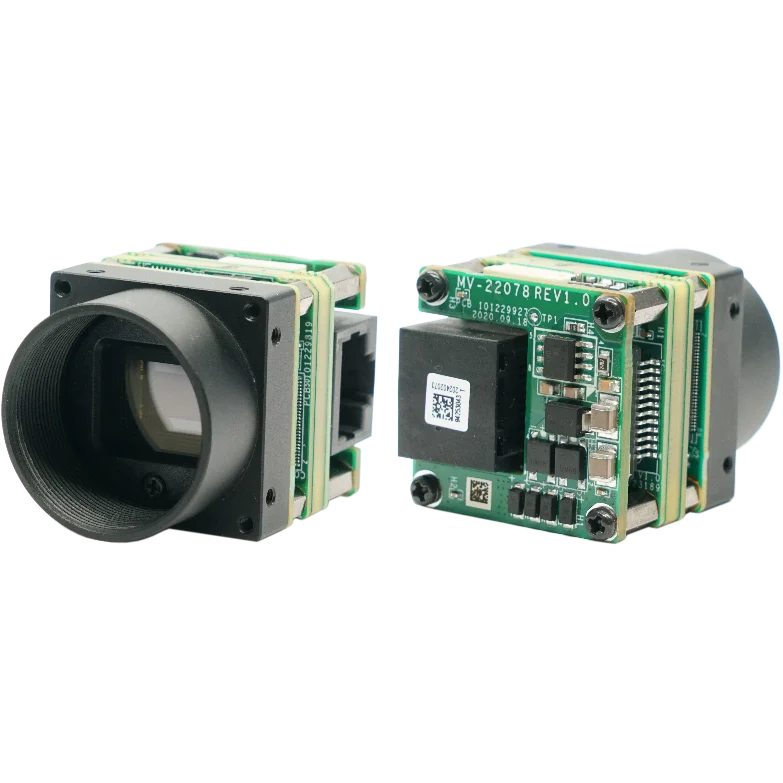

CB Series GigE Board Cameras

Board-level cameras

CB Series GigE Board Cameras

  • 23 models
  • from $279.00
  • Series HIK-CB-GIGE

The CB Series GigE Board Cameras is a range of 23 board-level cameras from Hikrobot, from $279.00. It comes in 13 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 23 models Series datasheet (PDF)

The series at a glance

Sizes / versions
0.4 MP, 1/2.9", GigE, Color, 0.4 MP, 1/2.9", GigE, Mono, 0.4 MP, GigE, Color, 0.4 MP, GigE, Mono, 1.6 MP, 1/2.9", GigE, Color, 1.6 MP, 1/2.9", GigE, Mono, 1.6 MP, GigE, Color, 1.6 MP, GigE, Mono, 6.3 MP, 1/1.8", GigE, Color, 6.3 MP, 1/1.8", GigE, Mono, 6.3 MP, GigE, Color, 6.3 MP, GigE, Mono, 12.2 MP, 1/1.7", GigE, Mono
Interface
GigE
Resolution
Up to 3 MP, 6-10 MP, 12 MP
Shutter
Global, Rolling
Colour
Color, Mono
Lens mount
M12, C-mount, None (bare board)
Sensor format
1/2.5" and smaller, 1/1.8" - 1/1.56"

Features

  • Supports auto or manual adjustment of gain, exposure time, white balance, manual adjustment of Gamma correction, LUT, Binning, etc.
  • Adopts noise reduction function to provide high-quality images.
  • Adopts GigE interface and max. transmission distance of 100 meters without relay.
  • Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
  • Automatic or manual gain, exposure time and white balance; manual gamma correction, LUT, binning and more
  • Built-in noise reduction for excellent image quality
  • Gigabit Ethernet interface: up to 100 m transmission without a repeater
  • Compatible with GigE Vision V2.0 and the GenICam standard for seamless connection to third-party software

All 23 models in the CB Series GigE Board Cameras

Link
MV-CB004-10GM-S0.4 MP, 1/2.9", GigE, Mono720 × 5401/2.9"CMOS, global shutter$279.00View
MV-CB004-10GC-S0.4 MP, 1/2.9", GigE, Color720 × 5401/2.9"CMOS, global shutter$279.00View
MV-CB004-10GM-C0.4 MP, GigE, Mono720 × 5401/2.9”CMOS, global shutter$279.00View
MV-CB004-10GC-C0.4 MP, GigE, Color720 × 5401/2.9”CMOS, global shutter$279.00View
MV-CB004-10GM-S-W0.4 MP, GigE, Mono720 × 5401/2.9”CMOS, global shutter$279.00View
MV-CB016-10GM-S1.6 MP, 1/2.9", GigE, Mono1440 × 10801/2.9"CMOS, global shutter$559.00View
MV-CB016-10GC-C1.6 MP, 1/2.9", GigE, Color1440 × 10801/2.9"CMOS, global shutter$559.00View
MV-CB016-10GM-C1.6 MP, GigE, Mono1440 × 10801/2.9”CMOS, global shutter$559.00View
MV-CB016-10GC-S1.6 MP, GigE, Color1440 × 10801/2.9”CMOS, global shutter$559.00View
MV-CB016-10GC-S-W1.6 MP, GigE, Color1440 × 10801/2.9”CMOS, global shutter$559.00View
MV-CB016-10GM-S-W1.6 MP, GigE, Mono1440 × 10801/2.9”CMOS, global shutter$559.00View
MV-CB016-10GM-M-W1.6 MP, GigE, Mono1440 × 10801/2.9”CMOS, global shutter$559.00View
MV-CB016-10GM-S-W(POE)1.6 MP, GigE, Mono1440 × 10801/2.9”CMOS, global shutter$559.00View
MV-CB060-10GM-S6.3 MP, 1/1.8", GigE, Mono3072 × 20481/1.8"CMOS, rolling shutter$1,119.00View
MV-CB060-10GC-S6.3 MP, 1/1.8", GigE, Color3072 × 20481/1.8"CMOS, rolling shutter$1,119.00View
MV-CB120-10GM-C12.2 MP, 1/1.7", GigE, Mono4024 × 30361/1.7"CMOS, rolling shutter$1,119.00View
MV-CB120-10GM-S12.2 MP, 1/1.7", GigE, Mono4024 × 30361/1.7"CMOS, rolling shutter$1,119.00View
MV-CB060-10GM-C6.3 MP, GigE, Mono3072 × 20481/1.8”CMOS, rolling shutter$1,119.00View
MV-CB060-10GM-M6.3 MP, GigE, Mono3072 × 20481/1.8”CMOS, rolling shutter$1,119.00View
MV-CB060-10GC-C6.3 MP, GigE, Color3072 × 20481/1.8”CMOS, rolling shutter$1,119.00View
MV-CB060-10GM-S-W6.3 MP, GigE, Mono3072 × 20481/1.8”CMOS, rolling shutter$1,119.00View
MV-CB060-10GC-S-W6.3 MP, GigE, Color3072 × 20481/1.8”CMOS, rolling shutter$1,119.00View
MV-CB060-10GM-B6.3 MP, GigE, Mono3072 × 20481/1.8”CMOS, rolling shutter$1,119.00View
