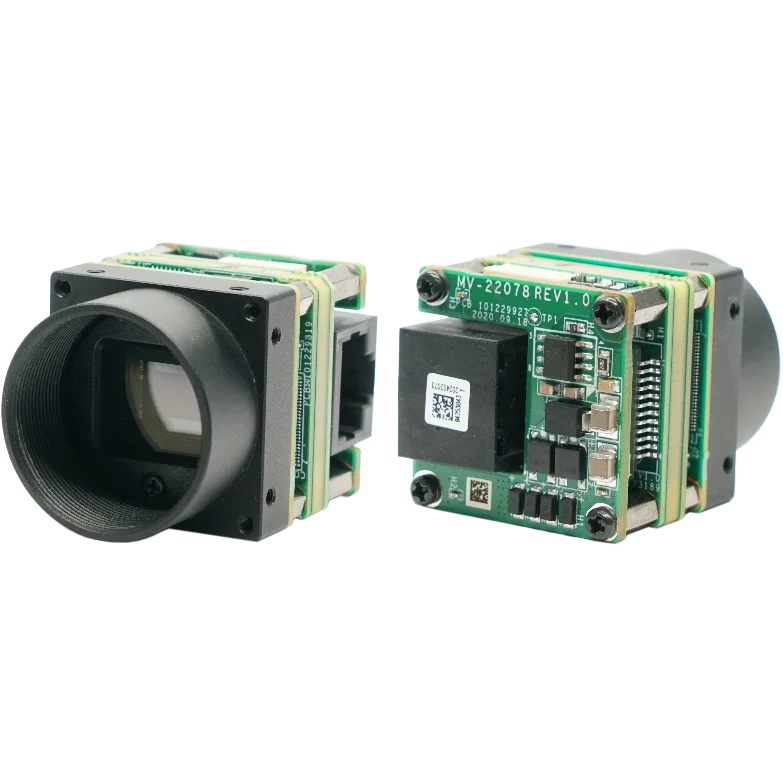

Hikrobot MV-CB004-10GM-S 0.4MP Board Level Camera, GigE, IMX297, Mono, M12-mout
Model MV-CB004-10GM-SHikrobot
- Resolution720 × 540
- SensorCMOS, global shutter
- Speed125.2 fps @720 × 540
- Lens mountM12
- Mono / colourMono
- Pixel size6.9 μm × 6.9 μm
$279.00
Ships in 2-3 weeks
0.16 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-CB004-10GM-S 0.4MP Board Level Camera, GigE, IMX297, Mono, M12-mout. Supports auto or manual adjustment of gain, exposure time, white balance, manual adjustment of Gamma correction, LUT, Binning, etc. Adopts noise reduction function to provide high-quality images.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-CB004-10GM-S |
|---|---|
| Brand | Hikrobot |
| Compatibility | GigE Vision V2.0, GenICam |
Sensor and imaging
| Sensor type | CMOS, global shutter |
|---|---|
| Sensor model | Sony® IMX297 |
| Pixel size | 6.9 μm × 6.9 μm |
| Sensor size | 1/2.9" |
| Resolution | 720 × 540 |
| Max. frame rate | 125.2 fps @720 × 540 |
| Dynamic range | 74 dB |
| SNR | 41 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | UltraShort exposure mode: 1 μs to 14 μs; Standard exposure mode: 15 μs to 10 sec |
| Exposure mode | Off/ Once/ Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10p/12/12p |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
Interfaces and I/O
| Data interface | Gigabit Ethernet, compatible with Fast Ethernet |
|---|---|
| Digital I/O | 6-pin connector provides power and I/O, including non-isolated input × 1 (Line 0), non-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2). |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
Environment and compliance
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
|---|---|
| Humidity | 20% to 80% RH, non-condensing |
| Certification | CE, FCC, RoHS, KC |
Computing
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
|---|
Electrical
| Power supply | 9 VDC to 24 VDC, supports PoE |
|---|---|
| Power consumption | Typ. 2.5 W@12 VDC |
Mechanical
| Lens mount | M12-mount |
|---|---|
| Dimension | 29 mm × 29 mm × 30.2 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 45 g (0.1 lb.) |
| Shipping weight (estimated) | 0.16 kg |
