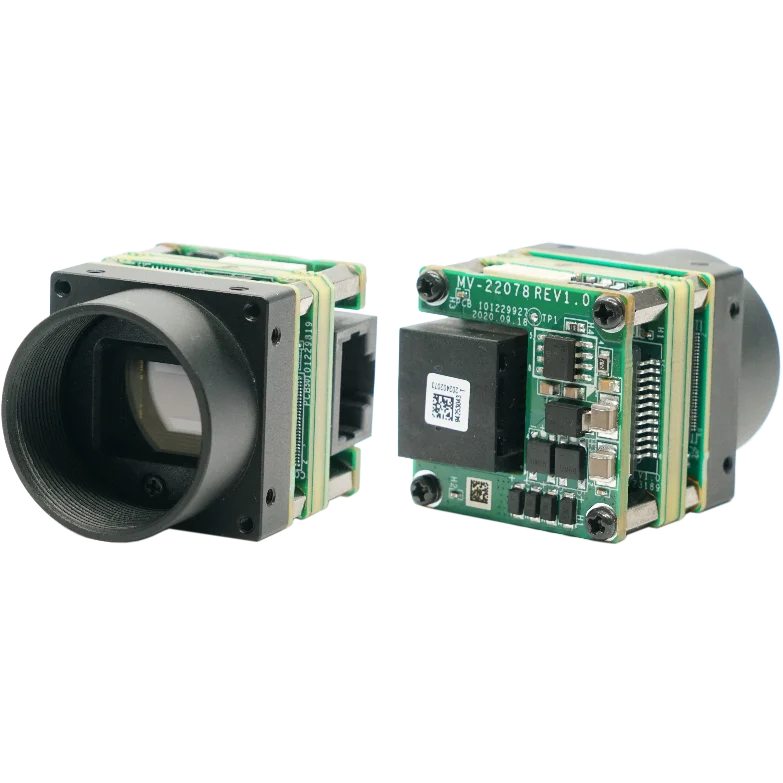

Hikrobot MV-CB016-10GC-C 1.6MP Board Level Camera, GigE, IMX296, Color, C-mount

Model MV-CB016-10GC-CHikrobot

Resolution1440 × 1080
SensorCMOS, global shutter
Speed65.2 fps @1440 × 1080
Lens mountC-mount
Mono / colourColor
Pixel size3.45 μm × 3.45 μm

$559.00

Ships in 2-3 weeks

0.16 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Available in the US - comparable cameras:

1.6 MP board-level camera, global shutter, 65 fps, C-Mount (LS-BCM-0013)$348.00

Hikrobot MV-CB016-10GC-C 1.6MP Board Level Camera, GigE, IMX296, Color, C-mount. Supports auto or manual adjustment of gain, exposure time, white balance, manual adjustment of Gamma correction, LUT, Binning, etc. Adopts noise reduction function to provide high-quality images.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CB016-10GC-C
Brand	Hikrobot
Compatibility	GigE Vision V2.0, GenICam

Sensor and imaging

Sensor type	CMOS, global shutter
Sensor model	Sony® IMX296
Pixel size	3.45 μm × 3.45 μm
Sensor size	1/2.9"
Resolution	1440 × 1080
Max. frame rate	65.2 fps @1440 × 1080
Dynamic range	74 dB
SNR	41 dB
Gain	0 dB to 24 dB
Exposure time	UltraShort exposure mode: 1 μs to 14 μs; Standard exposure mode: 15 μs to 10 sec
Exposure mode	Off/ Once/ Continuous exposure mode
Mono/color	Color
Pixel format	Mono 8/10/12, Bayer RG 8/10/10p/12/12p; YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	Gigabit Ethernet, compatible with Fast Ethernet
Digital I/O	6-pin connector provides power and I/O, including non-isolated input × 1 (Line 0), non-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2).
Client software	MVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity	20% to 80% RH, non-condensing
Certification	CE, FCC, RoHS, KC

Computing

Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS

Electrical

Power supply	9 VDC to 24 VDC, supports PoE
Power consumption	Typ. 2.7 W@12 VDC

Mechanical

Lens mount	C-mount

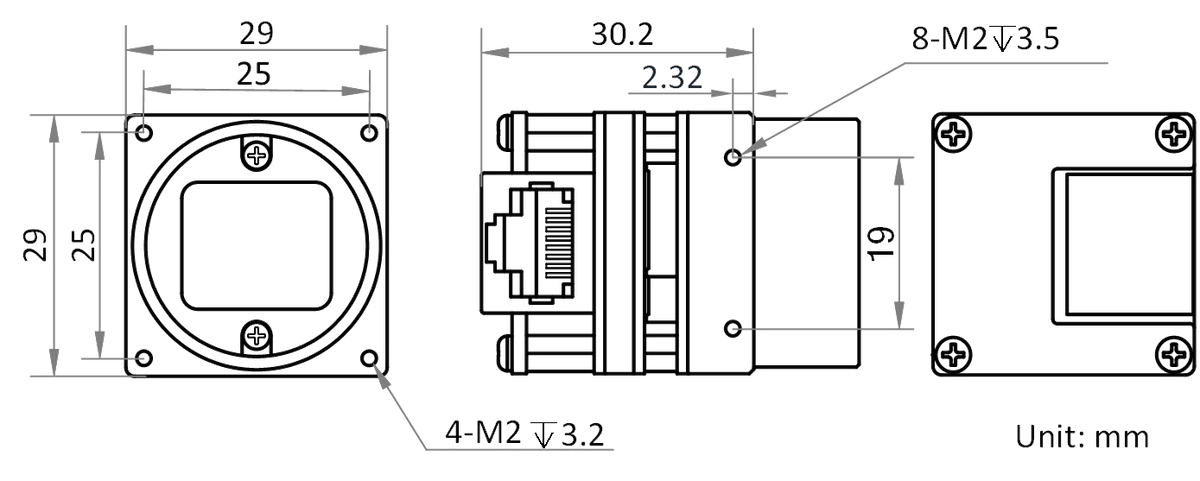

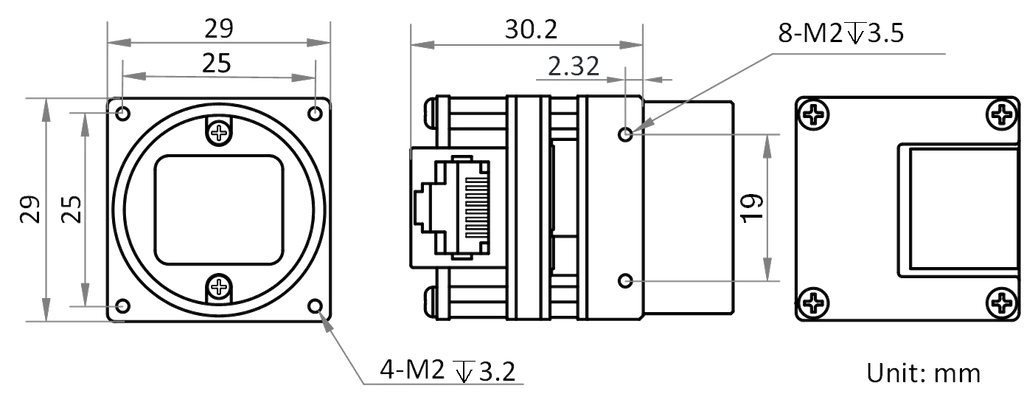

Dimension	29 mm × 29 mm × 30.2 mm (1.1" × 1.1" × 1.2")
Weight	Approx. 45 g (0.1 lb.)
Shipping weight (estimated)	0.16 kg

Downloads

Features

Supports auto or manual adjustment of gain, exposure time, white balance, manual adjustment of Gamma correction, LUT, Binning, etc.
Adopts noise reduction function to provide high-quality images.
Adopts GigE interface and max. transmission distance of 100 meters without relay.
Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
