Hikrobot MV-CB004-10GC-S 0.4MP Board Level Camera, GigE, IMX297, Color, M12-mout

Model MV-CB004-10GC-SHikrobot

  • Resolution720 × 540
  • SensorCMOS, global shutter
  • Speed125.2 fps @ 720 × 540
  • Lens mountM12
  • Mono / colourColor
  • Pixel size6.9 μm × 6.9 μm
$279.00

Ships in 2-3 weeks

0.16 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Available in the US - comparable models:

Ask an engineerBrowse Board-level cameras

lumaspecvision.com/products/lumaspec-mv-cb004-10gc-s

Of the 4 resolutions in this board-level camera series, MV-CB004-10GC-S, the colour, M12-mount version, is the lowest-resolution: a 720 x 540 (0.4 MP) sensor, the fewest pixels and the least data per frame.

MV-CB004-10GC-S: resolution 720 x 540; sensor type CMOS, global shutter; sensor size 1/2.9"; max. frame rate 125.2 fps @ 720 x 540; mono/color Color.

Hikrobot MV-CB004-10GC-S 0.4MP Board Level Camera, GigE, IMX297, Color, M12-mout.

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy

Certifications (as printed)CEFCCRoHSKC

Specifications

General

ModelMV-CB004-10GC-S
BrandHikrobot
CompatibilityGigE Vision V2.0, GenICam

Sensor and imaging

Sensor typeCMOS, global shutter
Sensor modelSony® IMX297
Pixel size6.9 μm × 6.9 μm
Sensor size1/2.9"
Resolution720 × 540
Max. frame rate125.2 fps @ 720 × 540
Dynamic range74 dB
SNR41 dB
Gain0 dB to 24 dB
Exposure timeUltraShort exposure mode: 1 μs to 14 μs; Standard exposure mode: 15 μs to 10 sec
Exposure modeOff/ Once/ Continuous exposure mode
Mono/colorColor
Pixel formatMono 8/10/12, Bayer RG 8/10/10p/12/12p; YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interfaceGigabit Ethernet, compatible with Fast Ethernet
Digital I/O6-pin connector provides power and I/O, including non-isolated input × 1 (Line 0), non-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2).
Client softwareMVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity20% to 80% RH, non-condensing
CertificationCE, FCC, RoHS, KC

Computing

Operating system32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS

Electrical

Power supply9 VDC to 24 VDC, supports PoE
Power consumptionTyp. 2.6 W @ 12 VDC

Mechanical

Lens mountM12-mount
Dimension29 mm × 29 mm × 30.2 mm (1.1" × 1.1" × 1.2")
WeightApprox. 45 g (0.1 lb.)
Shipping weight (estimated)0.16 kg

Engineering data

Field of view and resolution with the MV-CB004-10GC-S

Sensor area4.97 × 3.73 mm1/2.9" optical format
Lens image circle needed≥ Ø 6.2 mmM12
Pixel pitch6.9 µm720 x 540 px
With a 6 mm lens at 500 mm414 × 311 mm0.575 mm per pixel
Dynamic range74 dB
SNR41 dB
Power consumption2.6 Wtyp. at 12 V DC
ShutterGlobal
Exposure range15 µs to 10 sstandard mode
Weight45 gapprox.
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
2.8 mm532 × 400 mm0.74 mm per pixel888 × 666 mm1.233 mm per pixel1775 × 1332 mm2.465 mm per pixel
4 mm373 × 280 mm0.518 mm per pixel621 × 466 mm0.863 mm per pixel1242 × 932 mm1.726 mm per pixel
6 mm248 × 186 mm0.345 mm per pixel414 × 311 mm0.575 mm per pixel828 × 622 mm1.15 mm per pixel
8 mm186 × 140 mm0.259 mm per pixel311 × 233 mm0.431 mm per pixel621 × 466 mm0.863 mm per pixel
12 mm124 × 93.2 mm0.173 mm per pixel207 × 155 mm0.288 mm per pixel414 × 311 mm0.575 mm per pixel
16 mm93.2 × 69.9 mm0.129 mm per pixel155 × 117 mm0.216 mm per pixel311 × 233 mm0.431 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.

Build the full system with this part

Complete the setup

This part with the first fit-tested pick from each group below. Swap any of them for another card further down.

Set total $377.00

Lenses for this M12 camera

This camera's 6.2 mm sensor diagonal uses 98 % of the lens's 6.3 mm image circle

This camera's 6.2 mm sensor diagonal uses 93 % of the lens's 6.7 mm image circle

This camera's 6.2 mm sensor diagonal uses 93 % of the lens's 6.7 mm image circle

This camera's 6.2 mm sensor diagonal uses 93 % of the lens's 6.7 mm image circle

This camera's 6.2 mm sensor diagonal uses 93 % of the lens's 6.7 mm image circle

This camera's 6.2 mm sensor diagonal uses 93 % of the lens's 6.7 mm image circle

Cables and frame grabbers

Before you buy

Questions about the MV-CB004-10GC-S

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which lenses fit the MV-CB004-10GC-S?

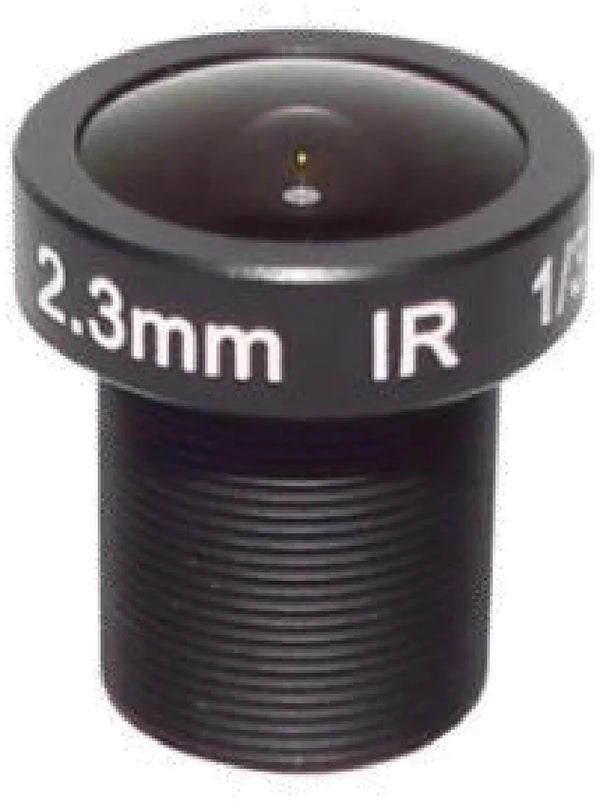

M12-mount lenses whose image circle covers its sensor diagonal (about 6.2 mm): LS-MBL-0099 (2.3 mm), LS-MBL-0194 (6 mm), LS-MBL-0196 (2.8 mm) and LS-MBL-0182 (10 mm).

Which cables does the MV-CB004-10GC-S take?

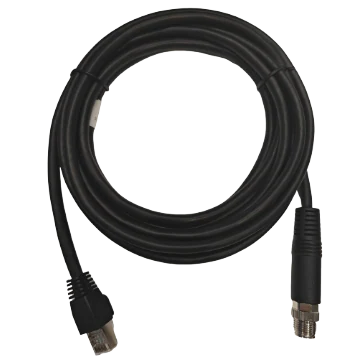

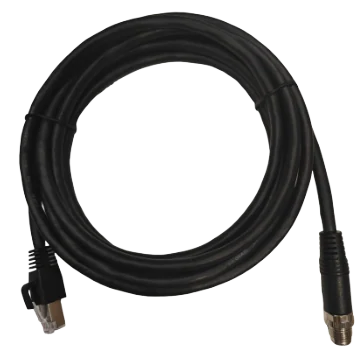

Fit-tested for its GigE interface: LS-CBL-0072 (1 m), LS-CBL-0060 (1 m), LS-CBL-0073 (3 m), LS-CBL-0080 (3 m) and LS-CBL-0061 (3 m).

How does the MV-CB004-10GC-S connect?

Printed: Data interface: Gigabit Ethernet, compatible with Fast Ethernet.

What I/O does the MV-CB004-10GC-S have?

Printed: Digital I/O: 6-pin connector provides power and I/O, including non-isolated input × 1 (Line 0), non-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2).

What power supply does the MV-CB004-10GC-S need?

Printed: Power supply: 9 VDC to 24 VDC, supports PoE; Power consumption: Typ. 2.6 W @ 12 VDC.

Other models in the CB Series GigE Board Camera series

See all 23 models

How this model compares

  • Same 720 × 540 sensor as MV-CB004-10GC-C (C-mount) and MV-CB004-10GM-S (Mono) and 2 more; this one: M12-mount, Color.
  • Full-resolution 8-bit frames at 125.2 fps work out to about 49 MB/s, 39% of the 125 MB/s a 1 Gbit/s link carries.
  • Compared with MV-CB016-10GC-C: power consumption Typ. 2.6 W @ 12 VDC here, Typ. 2.7 W @ 12 VDC there; resolution 720 x 540 here, 1440 x 1080 there.
ModelResolutionSensorSpeedMono / colourPriceAvailabilityLink
MV-CB004-10GM-S720 x 540CMOS, global shutter125.2 fps @ 720 x 540Mono$279.00 Ships in 2-3 weeks View
MV-CB004-10GC-SThis model720 x 540CMOS, global shutter125.2 fps @ 720 x 540Color$279.00 Ships in 2-3 weeks
MV-CB004-10GM-C720 x 540CMOS, global shutter125.2 fps @ 720 x 540 Mono 8Mono$279.00 Ships in 2-3 weeks View
MV-CB004-10GC-C720 x 540CMOS, global shutter125.2 fps @ 720 x 540 Bayer RG 8Color$279.00 Ships in 2-3 weeks View
MV-CB016-10GM-S1440 x 1080CMOS, global shutter65.2 fps @ 1440 x 1080Mono$559.00 Ships in 2-3 weeks View
MV-CB016-10GC-C1440 x 1080CMOS, global shutter65.2 fps @ 1440 x 1080Color$559.00 Ships in 2-3 weeks View
MV-CB060-10GM-S3072 x 2048CMOS, rolling shutterMono$1,119.00 Ships in 2-3 weeks View
MV-CB060-10GC-S3072 x 2048CMOS, rolling shutterColor$1,119.00 Ships in 2-3 weeks View
MV-CB120-10GM-C$1,119.00 Ships in 2-3 weeks View
