8 mm, 1/2.7", 3 MP, M12-mount Pinhole Lens (LS-MBL-0181)
  • 8 mm, 1/2.7", 3 MP, M12-mount Pinhole Lens (LS-MBL-0181)

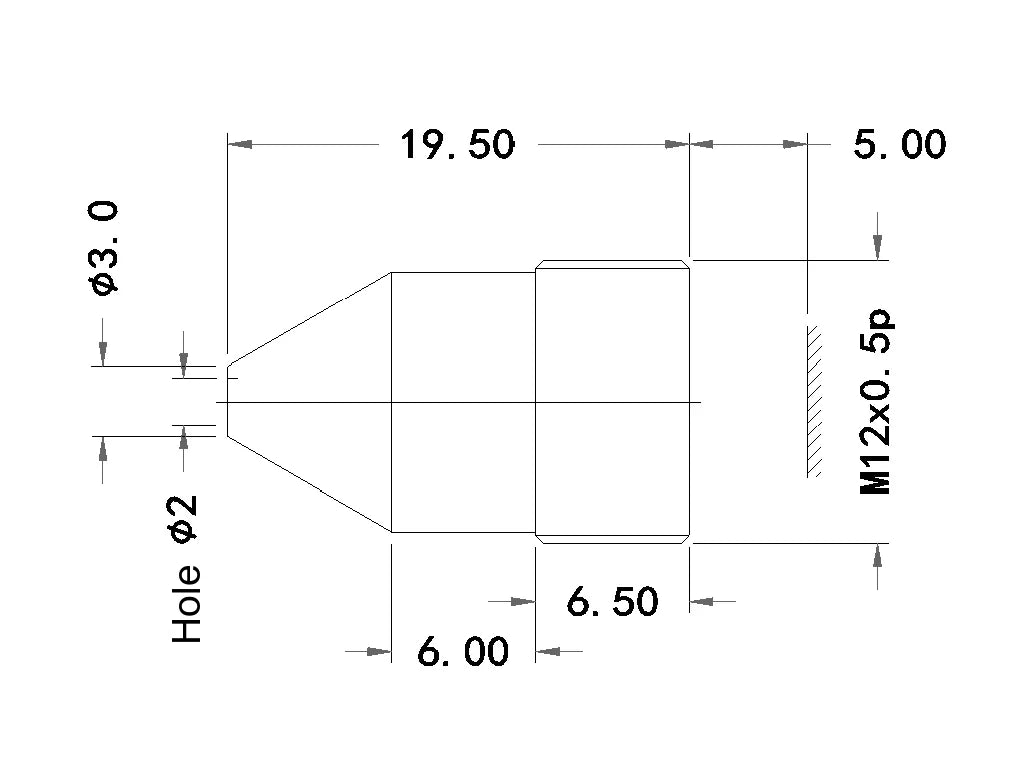

  • LS-MBL-0181 dimensions (mm)

M12 board lenses

8 mm, 1/2.7", 3 MP, M12-mount Pinhole Lens (LS-MBL-0181)

Model LS-MBL-0181

  • Focal length8mm
  • MountM12
  • Sensor1/2.7"
  • ApertureF2.8 Fixed Iris
  • Resolution3.0 Megapixel
$59.00

Ships in 2-3 weeks

0.11 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

8 mm, 1/2.7", 3 MP, M12-mount Pinhole Lens (LS-MBL-0181)LS-MBL-0181

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

8 mm, 1/2.7", 3 MP, M12-mount Pinhole Lens. 8 mm F2.8 M12 pinhole lens for 1/2.7" 3 megapixel cameras (covers 1/3", 1/4"), compact, for longer-distance covert surveillance. At a glance: focal length 8mm; format 1/2.7"; resolution 3.0 Megapixel; aperture F2.8 Fixed Iris; mount M12.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-MBL-0181
Format1/2.7"
Angle of view (1/2.7")42.5 x 23.6
Construction4G

Optics

Focal length8mm
ApertureF2.8 Fixed Iris
M.O.D.0.2m

Sensor and imaging

Resolution3.0 Megapixel

Mechanical

Sizedia. 12 x 19.5
MountM12
Weight4.5g
Shipping weight (estimated)0.11 kg

Other models in the Pinhole lenses (LS-MBL-S17) series

See all 19 models
ModelSize / key dataPriceAvailabilityLink
LS-MBL-0174 4 mm, 1/3", 2 MP, CS-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0175 4 mm, 1/3", 2 MP, CS-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0176 4-20 mm, 1/2.7", 2 MP, CS-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0177 4-20 mm, 1/2.7", 2 MP, CS-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0178 4-20 mm, 1/2.7", 2 MP, CS-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0179 6 mm, 1/2.5", 2 MP, M12-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0180 8 mm, 1/2.5", 2 MP, M12-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0182 10 mm, 1/2.7", 2 MP, M12-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0183 10-60 mm, 1/1.8", 6 MP, C-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0184 15 mm, 1/2", 2 MP, M12-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0185 22 mm, 1/2", 2 MP, M12-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0186 2.8 mm, 1/2.5", 2 MP, CS-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0187 2.8 mm, 1/2.5", 2 MP, CS-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0192 30 mm, 1/2", 2 MP, M12-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0188 3.7 mm, 1/2.5", 3 MP, M12-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0189 45 mm, 1/2", 2 MP, M12-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0190 70 mm, 1/1.8", 2 MP, M12-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0191 70 mm, 1/1.8", 2 MP, M12-mount $59.00 Ships in 2-3 weeks View
