30 mm, 1/2", 2 MP, M12-mount Pinhole Lens (LS-MBL-0192)
Model LS-MBL-0192
- Focal length30 mm
- MountM12
- Sensor1/2"
- ApertureF1.6 Fixed Iris
- Resolution2.0 MP
$59.00
Ships in 2-3 weeks
0.12 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
30 mm, 1/2", 2 MP, M12-mount Pinhole Lens. 30 mm, 1/2" 2 MP M12 cone pinhole lens, F1.6 fixed iris, for longer-distance surveillance. Covers 1/2" to 1/4" cameras; for police stations, courts and prisons. At a glance: focal length 30 mm; format 1/2"; resolution 2.0 MP; aperture F1.6 Fixed Iris; mount M12.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MBL-0192 |
|---|---|
| Format | 1/2" |
| Angle of view (1/2") | 9.6 deg |
Optics
| Focal length | 30 mm |
|---|---|
| Aperture | F1.6 Fixed Iris |
| M.O.D. | 0.2 m |
Sensor and imaging
| Resolution | 2.0 MP |
|---|
Mechanical

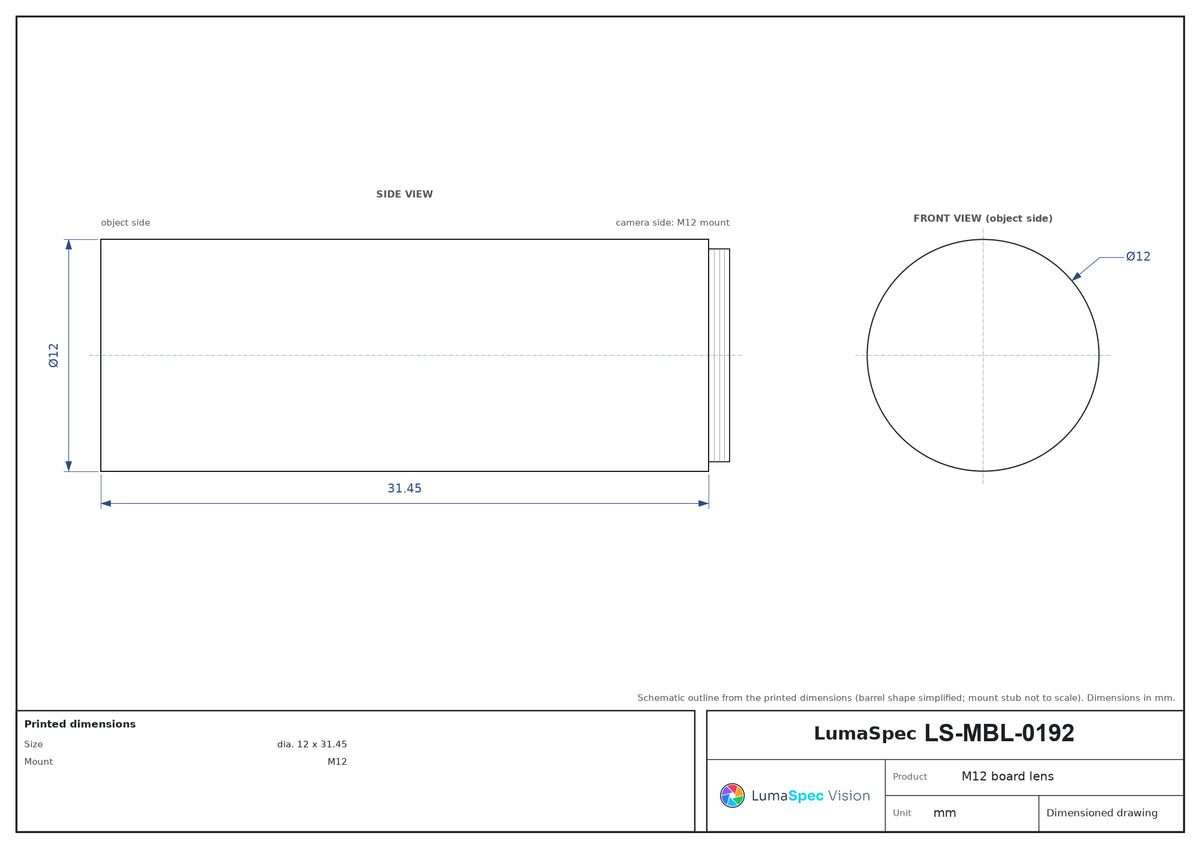

| Size | dia. 12 x 31.45 |
|---|---|
| Mount | M12 |
| Weight | 15 g |
| Shipping weight (estimated) | 0.12 kg |
