4-20 mm, 1/2.7", 2 MP, CS-mount Pinhole Lens, 2.0 MP (LS-MBL-0178)
Model LS-MBL-0178
- Focal length4-20 mm
- MountCS-mount
- Sensor1/2.7"
- ApertureF4.0 manual iris
- Resolution2.0 MP
$59.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.25 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
4-20 mm, 1/2.7", 2 MP, CS-mount Pinhole Lens. 4-20 mm 1/2.7" 2 MP varifocal pinhole lens (CS mount, 11 glass elements) for police stations, courts, prisons and high-temperature metallurgy/smelting cameras. At a glance: focal length 4-20 mm; format 1/2.7"; resolution 2.0 MP; aperture F4.0 manual iris; mount CS.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MBL-0178 |
|---|---|
| Format | 1/2.7" |
| Angle of view (1/2.7", D) | wide 88.5 x 66.4, tele 18 x 13.5 deg |
| Construction | 11G |
Optics
| Focal length | 4-20 mm |
|---|---|
| Aperture | F4.0 manual iris |
| M.O.D. | 0.3 m |
| Back focal length | 12.53 mm |
Sensor and imaging
| Resolution | 2.0 MP |
|---|
Mechanical

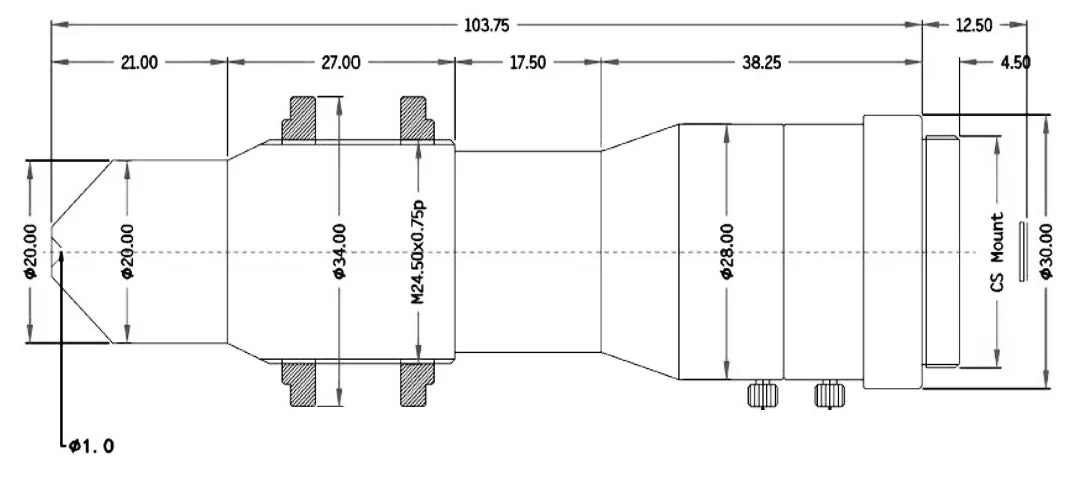

| Size | dia. 30 x 103.75 |
|---|---|
| Mount | CS |
| Weight | 110 g |
| Shipping weight (estimated) | 0.25 kg |
Other models in the Pinhole lenses (LS-MBL-S17) series
See all 19 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-MBL-0174 | 4 mm, 1/3", 2 MP, CS-mount | $59.00 | 3 in stock | View |
| LS-MBL-0175 | 4 mm, 1/3", 2 MP, CS-mount | $59.00 | 3 in stock | View |
| LS-MBL-0176 | 4-20 mm, 1/2.7", 2 MP, CS-mount | $59.00 | 4 in stock | View |
| LS-MBL-0177 | 4-20 mm, 1/2.7", 2 MP, CS-mount | $59.00 | 4 in stock | View |
| LS-MBL-0179 | 6 mm, 1/2.5", 2 MP, M12-mount | $59.00 | 3 in stock | View |
| LS-MBL-0180 | 8 mm, 1/2.5", 2 MP, M12-mount | $59.00 | 4 in stock | View |
| LS-MBL-0181 | 8 mm, 1/2.7", 3 MP, M12-mount | $59.00 | 3 in stock | View |
| LS-MBL-0182 | 10 mm, 1/2.7", 2 MP, M12-mount | $59.00 | 3 in stock | View |
| LS-MBL-0183 | 10-60 mm, 1/1.8", 6 MP, C-mount | $59.00 | 3 in stock | View |
| LS-MBL-0184 | 15 mm, 1/2", 2 MP, M12-mount | $59.00 | 2 in stock | View |
| LS-MBL-0185 | 22 mm, 1/2", 2 MP, M12-mount | $59.00 | 3 in stock | View |
| LS-MBL-0186 | 2.8 mm, 1/2.5", 2 MP, CS-mount | $59.00 | 2 in stock | View |
| LS-MBL-0187 | 2.8 mm, 1/2.5", 2 MP, CS-mount | $59.00 | 2 in stock | View |
| LS-MBL-0192 | 30 mm, 1/2", 2 MP, M12-mount | $59.00 | 4 in stock | View |
| LS-MBL-0188 | 3.7 mm, 1/2.5", 3 MP, M12-mount | $59.00 | 2 in stock | View |
| LS-MBL-0189 | 45 mm, 1/2", 2 MP, M12-mount | $59.00 | 2 in stock | View |
| LS-MBL-0190 | 70 mm, 1/1.8", 2 MP, M12-mount | $59.00 | 4 in stock | View |
| LS-MBL-0191 | 70 mm, 1/1.8", 2 MP, M12-mount | $59.00 | 3 in stock | View |
