M12 board lenses

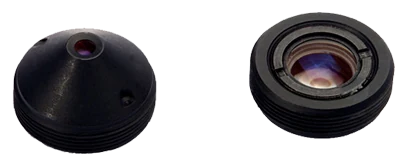

3.7 mm, 1/2.5", 3 MP, M12-mount Pinhole Lens (LS-MBL-0188)
Model LS-MBL-0188
- Focal length3.7 mm
- MountM12
- Sensor1/2.5"
- ApertureF2.0 Fixed Iris
- Resolution3.0 Megapixel
$59.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.11 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
3.7 mm, 1/2.5", 3 MP, M12-mount Pinhole Lens. 3.0 megapixel 3.7 mm pinhole lens with a 1/2.5" format covering 1/2.5", 1/2.7", 1/3" and 1/4" cameras, covering 1080P and 720P with a wide field of view. At a glance: focal length 3.7 mm; format 1/2.5"; resolution 3.0 Megapixel; aperture F2.0 Fixed Iris; mount M12 x 0.5.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MBL-0188 |
|---|---|
| Format | 1/2.5" |
| Angle of view (1/2.5", DxHxV) | 84 x 65 deg |
| B.F.L. | 4.3 mm |
Optics
| Focal length | 3.7 mm |
|---|---|
| Aperture | F2.0 Fixed Iris |
| M.O.D. | 0.2 m |
Sensor and imaging
| Resolution | 3.0 Megapixel |
|---|

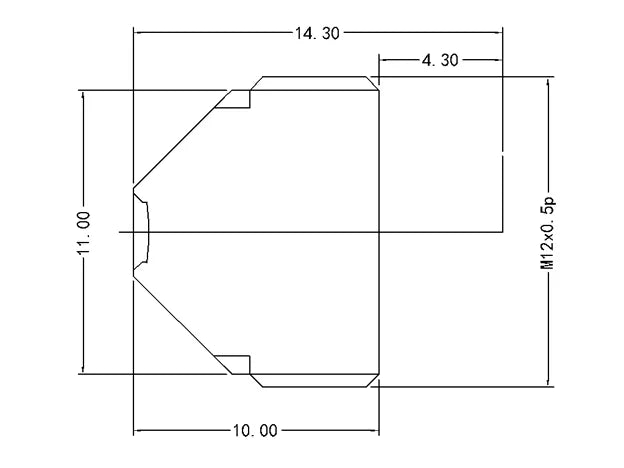

Mechanical
| Size | dia. 12 x 10 |
|---|---|
| Mount | M12 x 0.5 |
| Weight | 4 g |
| Shipping weight (estimated) | 0.11 kg |
Other models in the Pinhole lenses (LS-MBL-S17) series
See all 19 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-MBL-0174 | 4 mm, 1/3", 2 MP, CS-mount | $59.00 | 3 in stock | View |
| LS-MBL-0175 | 4 mm, 1/3", 2 MP, CS-mount | $59.00 | 3 in stock | View |
| LS-MBL-0176 | 4-20 mm, 1/2.7", 2 MP, CS-mount | $59.00 | 4 in stock | View |
| LS-MBL-0177 | 4-20 mm, 1/2.7", 2 MP, CS-mount | $59.00 | 4 in stock | View |
| LS-MBL-0178 | 4-20 mm, 1/2.7", 2 MP, CS-mount | $59.00 | 4 in stock | View |
| LS-MBL-0179 | 6 mm, 1/2.5", 2 MP, M12-mount | $59.00 | 3 in stock | View |
| LS-MBL-0180 | 8 mm, 1/2.5", 2 MP, M12-mount | $59.00 | 4 in stock | View |
| LS-MBL-0181 | 8 mm, 1/2.7", 3 MP, M12-mount | $59.00 | 3 in stock | View |
| LS-MBL-0182 | 10 mm, 1/2.7", 2 MP, M12-mount | $59.00 | 3 in stock | View |
| LS-MBL-0183 | 10-60 mm, 1/1.8", 6 MP, C-mount | $59.00 | 3 in stock | View |
| LS-MBL-0184 | 15 mm, 1/2", 2 MP, M12-mount | $59.00 | 2 in stock | View |
| LS-MBL-0185 | 22 mm, 1/2", 2 MP, M12-mount | $59.00 | 3 in stock | View |
| LS-MBL-0186 | 2.8 mm, 1/2.5", 2 MP, CS-mount | $59.00 | 2 in stock | View |
| LS-MBL-0187 | 2.8 mm, 1/2.5", 2 MP, CS-mount | $59.00 | 2 in stock | View |
| LS-MBL-0192 | 30 mm, 1/2", 2 MP, M12-mount | $59.00 | 4 in stock | View |
| LS-MBL-0189 | 45 mm, 1/2", 2 MP, M12-mount | $59.00 | 2 in stock | View |
| LS-MBL-0190 | 70 mm, 1/1.8", 2 MP, M12-mount | $59.00 | 4 in stock | View |
| LS-MBL-0191 | 70 mm, 1/1.8", 2 MP, M12-mount | $59.00 | 3 in stock | View |
