70 mm, 1/1.8", 2 MP, M12-mount Pinhole Lens, 2.0 MP (LS-MBL-0190)
  • 70 mm, 1/1.8", 2 MP, M12-mount Pinhole Lens, 2.0 MP (LS-MBL-0190)

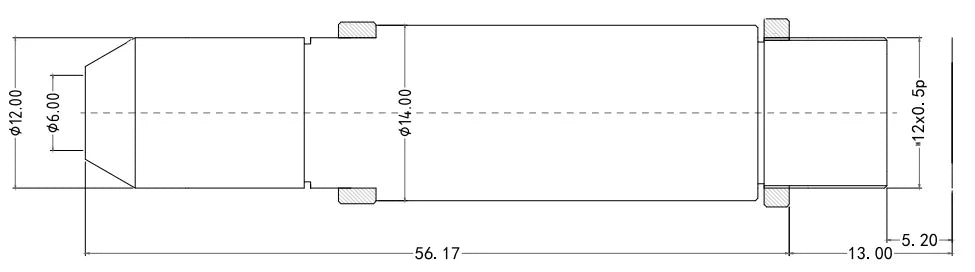

  • LS-MBL-0190 dimensions (mm)

M12 board lenses

70 mm, 1/1.8", 2 MP, M12-mount Pinhole Lens, 2.0 MP (LS-MBL-0190)

Model LS-MBL-0190

  • Focal length70 mm
  • MountM12
  • Sensor1/1.8"
  • ApertureF12 Fixed Iris
  • Resolution2.0 MP
$59.00

Ships in 2-3 weeks

0.13 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

70 mm, 1/1.8", 2 MP, M12-mount Pinhole Lens, 2.0 MP (LS-MBL-0190)LS-MBL-0190

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

70 mm, 1/1.8", 2 MP, M12-mount Pinhole Lens. 70 mm, 1/1.8" 2 MP M12 long pinhole lens with adjustable back focus, for long-distance surveillance. Covers 1/1.8" to 1/4" cameras. At a glance: focal length 70 mm; format 1/1.8"; resolution 2.0 MP; aperture F12 Fixed Iris; mount M12.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-MBL-0190
Format1/1.8"
FunctionBack focal adjustable
Angle of view (1/1.8")3.98 deg

Optics

Focal length70 mm
ApertureF12 Fixed Iris
M.O.D.0.5 m

Sensor and imaging

Resolution2.0 MP

Mechanical

Sizedia. 12 x 56.17
MountM12
Weight21 g
Shipping weight (estimated)0.13 kg
