M12 board lenses
2.8 mm, 1/2.5", 2 MP, CS-mount Pinhole Lens, F1.8 Manual Iris (LS-MBL-0187)
Model LS-MBL-0187
- Focal length2.8 mm
- MountCS-mount
- Sensor1/2.5"
- ApertureF1.8 Manual Iris
- Resolution2.0 MP
$59.00
Ships in 2-3 weeks
0.21 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
2.8 mm, 1/2.5", 2 MP, CS-mount Pinhole Lens. 2.8 mm, 1/2.5" 2 MP CS-mount cone pinhole lens with manual iris and wide field of view. Covers 1/3" and 1/4" cameras; for police stations, courts, prisons and metallurgy sites. At a glance: focal length 2.8 mm; format 1/2.5"; resolution 2.0 MP; aperture F1.8 Manual Iris; mount CS.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MBL-0187 |
|---|---|
| Format | 1/2.5" |
| Angle of view (1/2.5", DxHxV) | 140 x 100 x 60 deg |
Optics
| Focal length | 2.8 mm |
|---|---|
| Aperture | F1.8 Manual Iris |
| M.O.D. | 0.15 m |
Sensor and imaging
| Resolution | 2.0 MP |
|---|
Mechanical

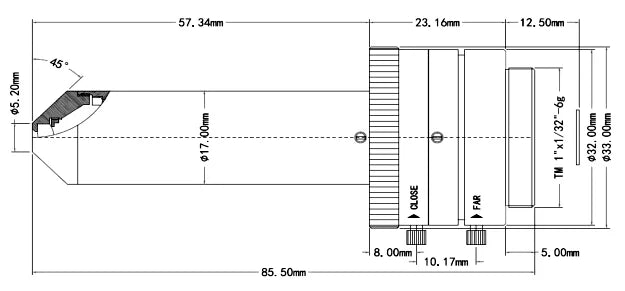

| Size | dia. 17 x 33 x 85.5 mm |
|---|---|
| Mount | CS |
| Weight | 80 g |
| Shipping weight (estimated) | 0.21 kg |
