10-60 mm, 1/1.8", 6 MP, C-mount Pinhole Lens (LS-MBL-0183)
  • 10-60 mm, 1/1.8", 6 MP, C-mount Pinhole Lens (LS-MBL-0183)

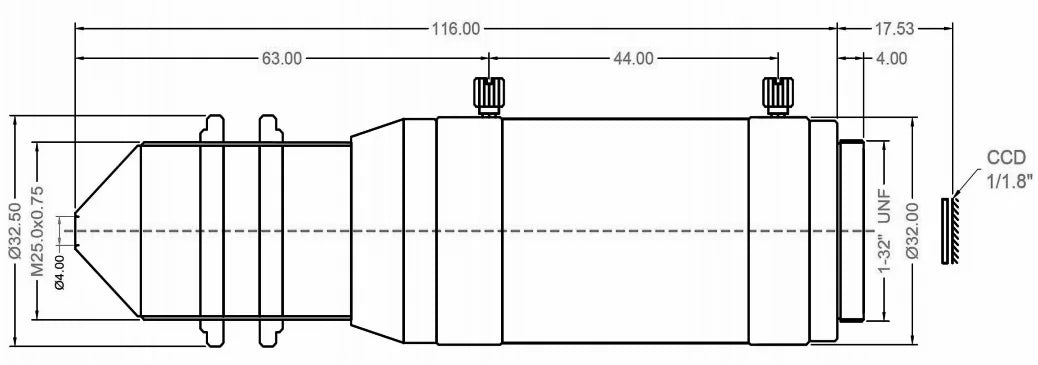

  • LS-MBL-0183 dimensions (mm)

M12 board lenses

10-60 mm, 1/1.8", 6 MP, C-mount Pinhole Lens (LS-MBL-0183)

Model LS-MBL-0183

  • Focal length10-60 mm
  • MountC-mount
  • Sensor1/1.8"
  • ApertureF3.5
  • Resolution6 Megapixel
$59.00

Ships in 2-3 weeks

0.31 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

10-60 mm, 1/1.8", 6 MP, C-mount Pinhole Lens (LS-MBL-0183)LS-MBL-0183

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

10-60 mm, 1/1.8", 6 MP, C-mount Pinhole Lens. A 10-60 mm varifocal, 1/1.8" format, 6 megapixel pinhole lens for high-temperature smelting/refinery cameras and secure-facility surveillance. At a glance: focal length 10-60 mm; format 1/1.8"; resolution 6 Megapixel; aperture F3.5; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-MBL-0183
Format1/1.8"
B.F.L.17.53 mm
Construction11G
Angle of view (1/1.8", HxV)W: 39.5 x 30 deg; T: 5 x 3.7 deg

Optics

ApertureF3.5
M.O.D.50 mm
Focal length10-60 mm

Sensor and imaging

Resolution6 Megapixel

Mechanical

Sizedia. 32 x 116 mm
MountC
Weight150 g
Front threadM25 x 0.75
Shipping weight (estimated)0.31 kg

Other models in the Pinhole lenses (LS-MBL-S17) series

See all 19 models
ModelSize / key dataPriceAvailabilityLink
LS-MBL-0174 4 mm, 1/3", 2 MP, CS-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0175 4 mm, 1/3", 2 MP, CS-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0176 4-20 mm, 1/2.7", 2 MP, CS-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0177 4-20 mm, 1/2.7", 2 MP, CS-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0178 4-20 mm, 1/2.7", 2 MP, CS-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0179 6 mm, 1/2.5", 2 MP, M12-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0180 8 mm, 1/2.5", 2 MP, M12-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0181 8 mm, 1/2.7", 3 MP, M12-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0182 10 mm, 1/2.7", 2 MP, M12-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0184 15 mm, 1/2", 2 MP, M12-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0185 22 mm, 1/2", 2 MP, M12-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0186 2.8 mm, 1/2.5", 2 MP, CS-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0187 2.8 mm, 1/2.5", 2 MP, CS-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0192 30 mm, 1/2", 2 MP, M12-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0188 3.7 mm, 1/2.5", 3 MP, M12-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0189 45 mm, 1/2", 2 MP, M12-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0190 70 mm, 1/1.8", 2 MP, M12-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0191 70 mm, 1/1.8", 2 MP, M12-mount $59.00 Ships in 2-3 weeks View
