70 mm, 1/1.8", 2 MP, M12-mount Pinhole Lens, 2.0 Megapixel (LS-MBL-0191)
  • 70 mm, 1/1.8", 2 MP, M12-mount Pinhole Lens, 2.0 Megapixel (LS-MBL-0191)

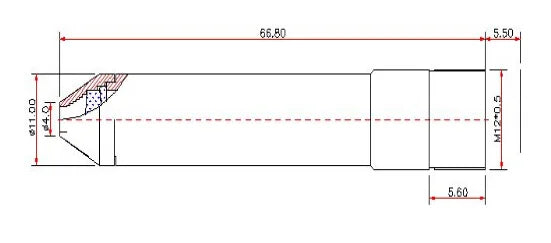

  • LS-MBL-0191 dimensions (mm)

M12 board lenses

70 mm, 1/1.8", 2 MP, M12-mount Pinhole Lens, 2.0 Megapixel (LS-MBL-0191)

Model LS-MBL-0191

  • Focal length70 mm
  • MountM12
  • Sensor1/1.8"
  • ApertureF1.6 Fixed Iris
  • Resolution2.0 Megapixel
$59.00

Ships in 2-3 weeks

0.12 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

70 mm, 1/1.8", 2 MP, M12-mount Pinhole Lens, 2.0 Megapixel (LS-MBL-0191)LS-MBL-0191

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

70 mm, 1/1.8", 2 MP, M12-mount Pinhole Lens. High resolution: 2.0 megapixel covering 1080P, 720P. Focal length: 70mm can support far distance surveillance. Large format: 1/1.8" can cover 1/1.8", 1/2", "1/2.5", 1/2.7", 1/3", 1/4" camera. At a glance: back focal length 5.5 mm; format 1/1.8"; resolution 2.0 Megapixel; aperture F1.6 Fixed Iris; mount M12.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-MBL-0191
Format1/1.8"
Angle of view (1/1.8")3.98 deg

Optics

Back focal length5.5 mm
Focal length70 mm
ApertureF1.6 Fixed Iris
M.O.D.0.2 m

Sensor and imaging

Resolution2.0 Megapixel

Mechanical

Sizedia. 12 x 66.8
MountM12
Weight16 g
Shipping weight (estimated)0.12 kg

Other models in the Pinhole lenses (LS-MBL-S17) series

See all 19 models
ModelSize / key dataPriceAvailabilityLink
LS-MBL-0174 4 mm, 1/3", 2 MP, CS-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0175 4 mm, 1/3", 2 MP, CS-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0176 4-20 mm, 1/2.7", 2 MP, CS-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0177 4-20 mm, 1/2.7", 2 MP, CS-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0178 4-20 mm, 1/2.7", 2 MP, CS-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0179 6 mm, 1/2.5", 2 MP, M12-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0180 8 mm, 1/2.5", 2 MP, M12-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0181 8 mm, 1/2.7", 3 MP, M12-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0182 10 mm, 1/2.7", 2 MP, M12-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0183 10-60 mm, 1/1.8", 6 MP, C-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0184 15 mm, 1/2", 2 MP, M12-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0185 22 mm, 1/2", 2 MP, M12-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0186 2.8 mm, 1/2.5", 2 MP, CS-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0187 2.8 mm, 1/2.5", 2 MP, CS-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0192 30 mm, 1/2", 2 MP, M12-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0188 3.7 mm, 1/2.5", 3 MP, M12-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0189 45 mm, 1/2", 2 MP, M12-mount $59.00 Ships in 2-3 weeks View
LS-MBL-0190 70 mm, 1/1.8", 2 MP, M12-mount $59.00 Ships in 2-3 weeks View
