4-20 mm, 1/2.7", 2 MP, CS-mount Pinhole Lens, 4-20mm, 2.0 Megapixel (LS-MBL-0176)
  • 4-20 mm, 1/2.7", 2 MP, CS-mount Pinhole Lens, 4-20mm, 2.0 Megapixel (LS-MBL-0176)

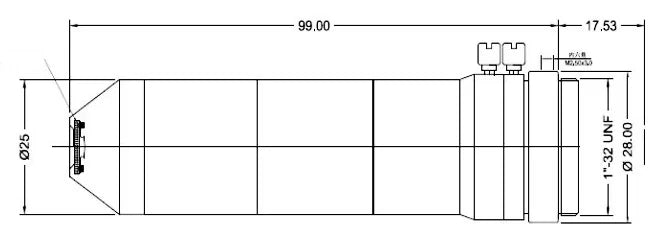

  • LS-MBL-0176 dimensions (mm)

M12 board lenses

4-20 mm, 1/2.7", 2 MP, CS-mount Pinhole Lens, 4-20mm, 2.0 Megapixel (LS-MBL-0176)

Model LS-MBL-0176

  • Focal length4-20mm
  • MountCS-mount
  • Sensor1/2.7"
  • ApertureF4.0 Manual iris
  • Resolution2.0 Megapixel
$59.00

Ships in 2-3 weeks

0.25 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

4-20 mm, 1/2.7", 2 MP, CS-mount Pinhole Lens, 4-20mm, 2.0 Megapixel (LS-MBL-0176)LS-MBL-0176

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

4-20 mm, 1/2.7", 2 MP, CS-mount Pinhole Lens. A 4-20 mm F4.0 manual-iris varifocal pinhole lens for 1/2.7" 2-megapixel cameras, 11-element construction, for police stations, courts, prisons and high-temperature metallurgy. At a glance: focal length 4-20mm; format 1/2.7"; resolution 2.0 Megapixel; aperture F4.0 Manual iris; mount CS.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-MBL-0176
Format1/2.7"
Construction11G Element
Angle of view (1/2.7")W: 88.5 x 66.4; T: 18 x 13.5 deg

Optics

Focal length4-20mm
ApertureF4.0 Manual iris
M.O.D.0.4m
Back focal length12.53mm

Sensor and imaging

Resolution2.0 Megapixel

Mechanical

Sizedia. 25 x 99mm
MountCS
Weight110g
Shipping weight (estimated)0.25 kg
