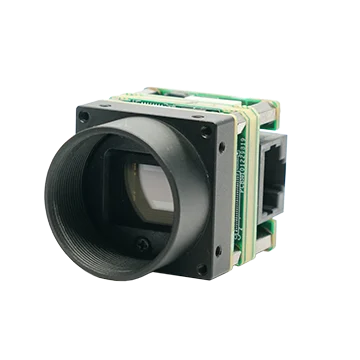

Hikrobot MV-CB060-10GM-C 6 MP GigE board-level camera, IMX178, Mono, C-mount front cover

Board-level cameras

Hikrobot MV-CB004-10GC-C 0.4 MP GigE board-level camera, IMX297, Color, C-mount front cover

Model MV-CB004-10GC-CHikrobot

Resolution720 × 540
SensorCMOS, global shutter
Speed125.2 fps @720 × 540 Bayer RG 8
Lens mountC-mount
Mono / colourColor
Pixel size6.9 μm ×6.9 μm

$279.00

Ships in 2-3 weeks

0.16 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CB004-10GC-C 0.4 MP GigE board-level camera, IMX297, Color, C-mount front cover. Automatic or manual gain, exposure time and white balance; manual gamma correction, LUT, binning and more Built-in noise reduction for excellent image quality

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CB004-10GC-C
Brand	Hikrobot
Compatibility	GigE Vision V2.0, GenICam

Sensor and imaging

Sensor type	CMOS, global shutter
Sensor model	Sony IMX297
Pixel size	6.9 μm ×6.9 μm
Sensor size	1/2.9”
Resolution	720 × 540
Max. frame rate	125.2 fps @720 × 540 Bayer RG 8
Dynamic range	74 dB
SNR	41 dB
Gain	0 dB ~ 24 dB
Exposure time	UltraShort exposure mode: 1 μs to 14 μs; Standard exposure mode: 15 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Color
Pixel format	Mono8/10/12; Bayer RG8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed, RGB8, BGR8
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O	6-pin connector provides power and I/O, including non-isolated input × 1 (Line 0), non-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2).
Client software	MVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	FCC, RoHS

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux

Electrical

Power supply	9 VDC to 24 VDC, supports PoE
Power consumption	2.6 W@12 VDC

Mechanical

Lens mount	C-Mount

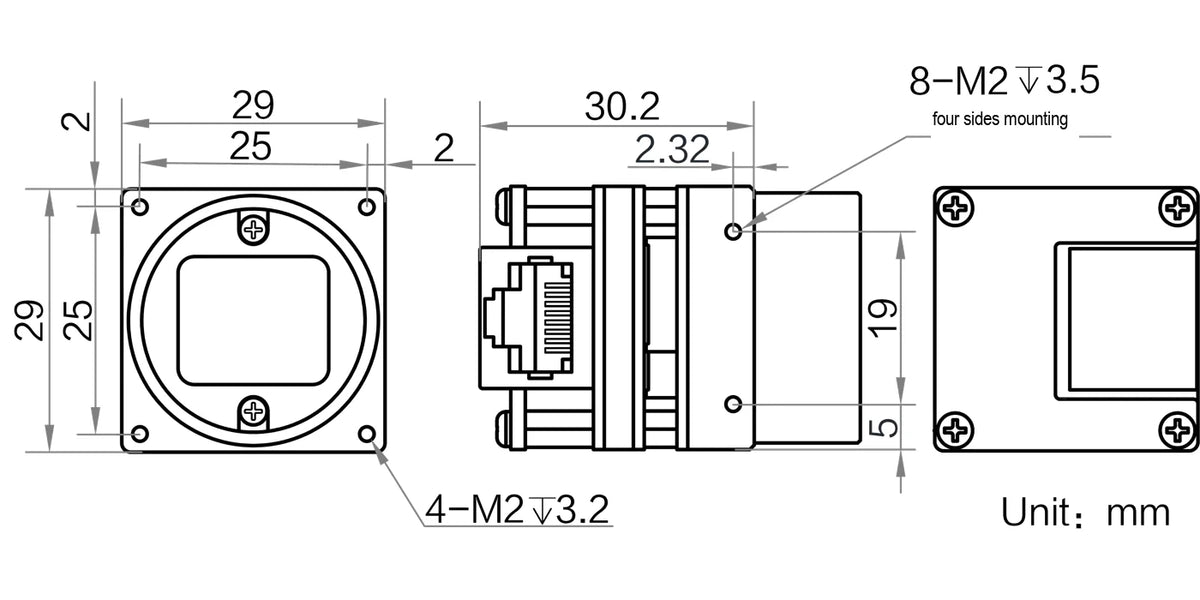

Dimension	29 mm × 29 mm × 30.2 mm
Weight	Approx. 45 g (0.1 lb.)
Shipping weight (estimated)	0.16 kg

Downloads

Features

Automatic or manual gain, exposure time and white balance; manual gamma correction, LUT, binning and more
Built-in noise reduction for excellent image quality
Gigabit Ethernet interface: up to 100 m transmission without a repeater
Compatible with GigE Vision V2.0 and the GenICam standard for seamless connection to third-party software
