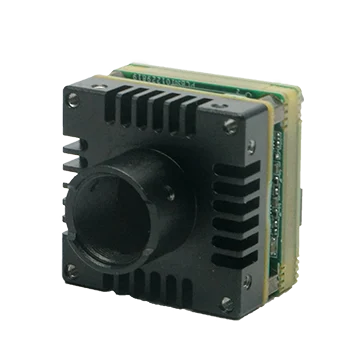

Hikrobot MV-CB016-10GC-S-W 1.6 MP GigE board-level camera, IMX296, Color, M12 front cover, WTB GigE port
  • Hikrobot MV-CB016-10GC-S-W 1.6 MP GigE board-level camera, IMX296, Color, M12 front cover, WTB GigE port

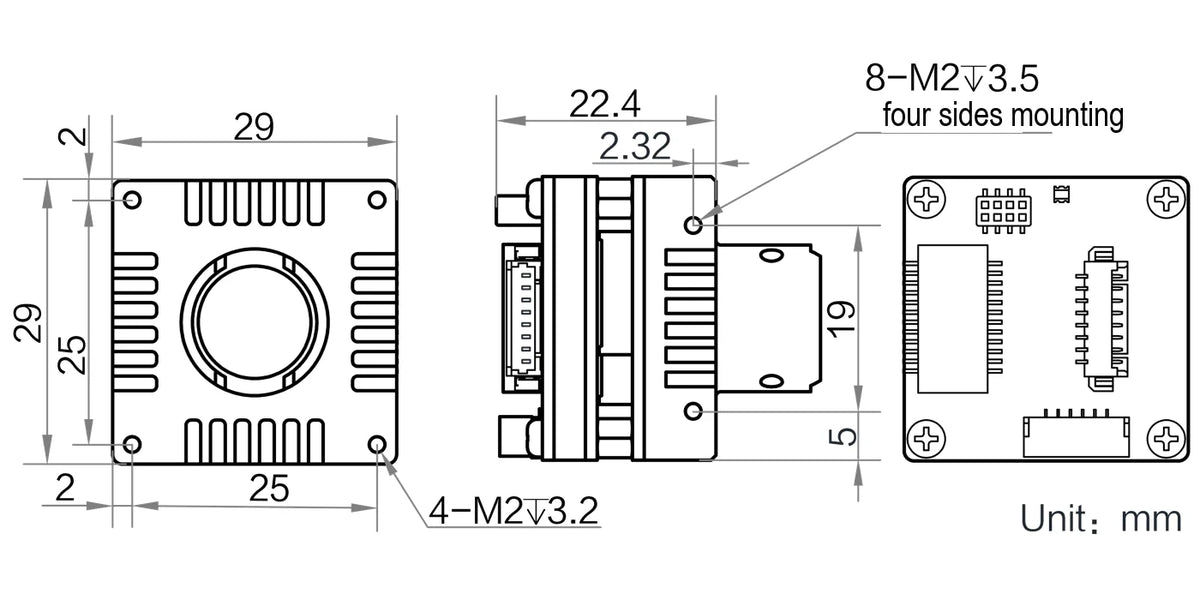

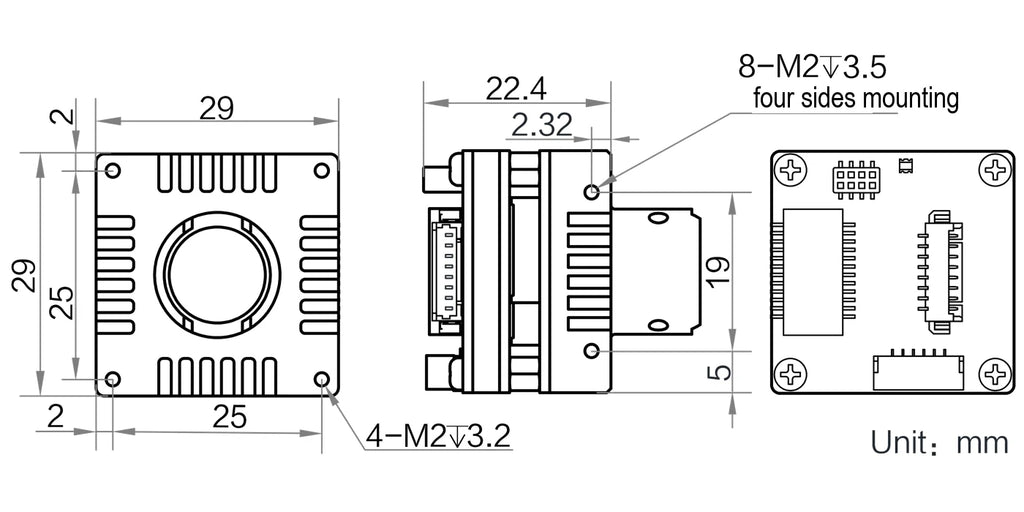

  • MV-CB016-10GC-S-W dimensions (mm)

Board-level cameras

Hikrobot MV-CB016-10GC-S-W 1.6 MP GigE board-level camera, IMX296, Color, M12 front cover, WTB GigE port

Model MV-CB016-10GC-S-WHikrobot

  • Resolution1440 × 1080
  • SensorCMOS, global shutter
  • Speed65.2 fps @ 1440 × 1080 Bayer RG 8
  • Lens mountM12
  • Mono / colourColor
  • Pixel size3.45 μm × 3.45 μm
$559.00

Ships in 2-3 weeks

0.15 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Available in the US - comparable cameras:

Ask an engineerBrowse Board-level cameras

MV-CB016-10GC-S-W: resolution 1440 x 1080; sensor type CMOS, global shutter; sensor size 1/2.9”; max. frame rate 65.2 fps @1440 x 1080 Bayer RG 8; dimension 29 mm x 29 mm x 22.4 mm.

Hikrobot MV-CB016-10GC-S-W 1.6 MP GigE board-level camera, IMX296, Color, M12 front cover, WTB GigE port. Automatic or manual gain, exposure time and white balance; manual gamma correction, LUT, binning and more Built-in noise reduction for excellent image quality

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)FCCRoHS

Specifications

General

ModelMV-CB016-10GC-S-W
BrandHikrobot
CompatibilityGigE Vision V2.0, GenICam

Sensor and imaging

Sensor typeCMOS, global shutter
Sensor modelSony IMX296
Pixel size3.45 μm × 3.45 μm
Sensor size1/2.9”
Resolution1440 × 1080
Max. frame rate65.2 fps @ 1440 × 1080 Bayer RG 8
Dynamic range74 dB
SNR41 dB
Gain0 dB ~ 24 dB
Exposure timeUltraShort exposure mode: 1 μs to 14 μs; Standard exposure mode: 15 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorColor
Pixel formatMono 8/10/12; Bayer RG 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR8
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O6-pin connector provides power and I/O, including non-isolated input × 1 (Line 0), non-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2).
Client softwareMVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 80% RH (no condensation)
CertificationFCC, RoHS

Computing

Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux

Electrical

Power supply9 ~ 24 VDC
Power consumption2.7 W @ 12 VDC

Mechanical

Lens mountM12-Mount
Dimension29 mm × 29 mm × 22.4 mm
WeightApprox. 35 g
Shipping weight (estimated)0.15 kg

Engineering data

Field of view and resolution with the MV-CB016-10GC-S-W

Worked out from this camera's own sensor: the field of view and the size one pixel covers on the part, for common lenses and working distances.

Sensor area4.97 × 3.73 mm1/2.9" optical format
Lens image circle needed≥ Ø 6.2 mmM12
Pixel pitch3.45 µm1440 x 1080 px
With a 6 mm lens at 500 mm414 × 311 mm0.288 mm per pixel
Dynamic range74 dB
SNR41 dB
Power consumption2.7 Wat 12 V DC
ShutterGlobal
Exposure range15 µs to 10 sstandard mode
Weight35 gapprox.
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
2.8 mm532 × 400 mm0.37 mm per pixel888 × 666 mm0.616 mm per pixel1775 × 1332 mm1.233 mm per pixel
4 mm373 × 280 mm0.259 mm per pixel621 × 466 mm0.431 mm per pixel1242 × 932 mm0.863 mm per pixel
6 mm248 × 186 mm0.173 mm per pixel414 × 311 mm0.288 mm per pixel828 × 622 mm0.575 mm per pixel
8 mm186 × 140 mm0.129 mm per pixel311 × 233 mm0.216 mm per pixel621 × 466 mm0.431 mm per pixel
12 mm124 × 93.2 mm0.086 mm per pixel207 × 155 mm0.144 mm per pixel414 × 311 mm0.288 mm per pixel
16 mm93.2 × 69.9 mm0.065 mm per pixel155 × 117 mm0.108 mm per pixel311 × 233 mm0.216 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.
