M12 board lenses
3.6 mm, 1/2.7", 12 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0165)
Model LS-MBL-0165
- Focal length3.6 mm
- MountM12
- Sensor1/2.7"
- ApertureF2.0 Fixed iris
- Resolution12 Megapixel
$109.00
Ships in 2-3 weeks
0.12 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
3.6 mm, 1/2.7", 12 MP, M12-mount Low-Distortion M12 Lens. High resolution: 8 megapixel covering all 5MP & 1080P. Large format: 1/2.7". Low distortion: <1.5% low distortion. At a glance: focal length 3.6 mm; format 1/2.7"; resolution 12 Megapixel; aperture F2.0 Fixed iris; mount M12 x P0.5.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MBL-0165 |
|---|---|
| Format | 1/2.7" |
| Angle of view (1/2.7", DxHxV) | 91 x 83 x 52 deg |
| Notes | 3G2P / IR filter 650 |
Optics
| Focal length | 3.6 mm |
|---|---|
| Back focal length | 3.18 mm |
| Aperture | F2.0 Fixed iris |
| Distortion | <1.5% |
| M.O.D. | 0.1 m |
Sensor and imaging
| Resolution | 12 Megapixel |
|---|

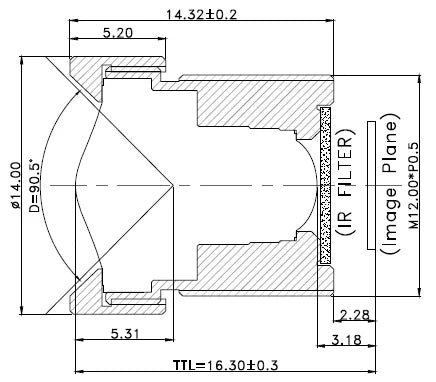

Mechanical
| Size | dia. 14 x 14.3 mm |
|---|---|
| Optical total length | 16.3 mm |
| Mount | M12 x P0.5 |
| Weight | 15 g |
| Shipping weight (estimated) | 0.12 kg |
