6.6 mm, 1/2.7", 1.3 MP, M10-mount Low-Distortion M12 Lens (LS-MBL-0171)
  • 6.6 mm, 1/2.7", 1.3 MP, M10-mount Low-Distortion M12 Lens (LS-MBL-0171)

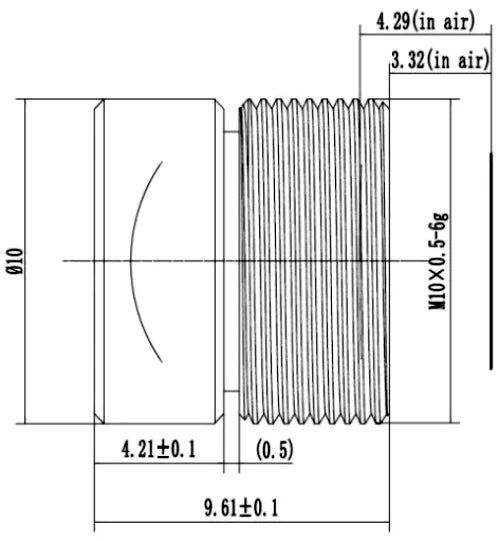

  • LS-MBL-0171 dimensions (mm)

M12 board lenses

6.6 mm, 1/2.7", 1.3 MP, M10-mount Low-Distortion M12 Lens (LS-MBL-0171)

Model LS-MBL-0171

  • Focal length6.6mm
  • MountM10
  • Sensor1/2.7"
  • ApertureF6.8 Fixed iris
  • Resolution1.3 Megapixel
$89.00

Ships in 2-3 weeks

0.11 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

6.6 mm, 1/2.7", 1.3 MP, M10-mount Low-Distortion M12 Lens (LS-MBL-0171)LS-MBL-0171

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

6.6 mm, 1/2.7", 1.3 MP, M10-mount Low-Distortion M12 Lens. A 6.6 mm F6.8 fixed-iris M10 S-mount lens for 1/2.7" 1.3-megapixel sensors with -0.2% distortion, for video conferencing, recognition, scanners and machine vision. At a glance: focal length 6.6mm; format 1/2.7"; resolution 1.3 Megapixel; aperture F6.8 Fixed iris; mount M10.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-MBL-0171
Format1/2.7"
Angle of view (1/2.7")51.2 x 42.2 x 32.6 deg

Optics

Focal length6.6mm
ApertureF6.8 Fixed iris
M.O.D.0.14m
Distortion-0.2%
Back focal length4.29mm
Total track length (TTL)12.83mm

Sensor and imaging

Resolution1.3 Megapixel

Mechanical

Sizedia. 10 x 9.61mm
MountM10
Weight6g
Shipping weight (estimated)0.11 kg
