8 mm, 1/1.8", 3 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0155)
Model LS-MBL-0155
- Focal length8.0 mm
- MountM12
- Sensor1/1.8"
- ApertureF1.8 Fixed iris
- Resolution3.0 Megapixel
$89.00
Ships in 2-3 weeks
0.12 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
8 mm, 1/1.8", 3 MP, M12-mount Low-Distortion M12 Lens. High resolution: 3.0 megapixel covering 1080P. Large format: 1/1.8" size covering 1/1.8", 1/2", 1/2.5" camera. Low distortion: <-2% super low distortion. At a glance: focal length 8.0 mm; format 1/1.8" (Max image circle dia. 9 mm); resolution 3.0 Megapixel; aperture F1.8 Fixed iris; mount M12 x 0.5.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MBL-0155 |
|---|---|
| Format | 1/1.8" (Max image circle dia. 9 mm) |
| IR correction | IR |
| Angle of view (1/1.8") | 61 x 50 x 39 deg |
| CRA | 8.5° |
| Notes | 9G |
Optics
| Focal length | 8.0 mm |
|---|---|
| Aperture | F1.8 Fixed iris |
| M.O.D. | 0.5 m |
| Distortion | <-2% |
| Back focal length | 6.98 mm |
| Relative illumination | >45% |
Sensor and imaging
| Resolution | 3.0 Megapixel |
|---|

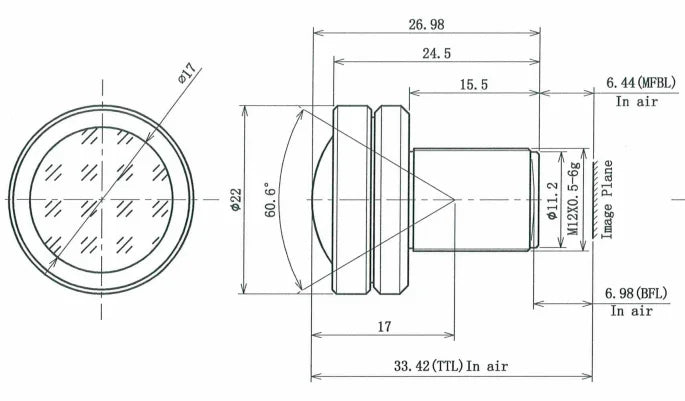

Mechanical
| Size | dia. 22 x 26.98 mm |
|---|---|
| Optical total length | 33.42 mm |
| Mount | M12 x 0.5 |
| Weight | 15 g |
| Shipping weight (estimated) | 0.12 kg |
