4.5 mm, 1/1.8", 2 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0157)
  • 4.5 mm, 1/1.8", 2 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0157)

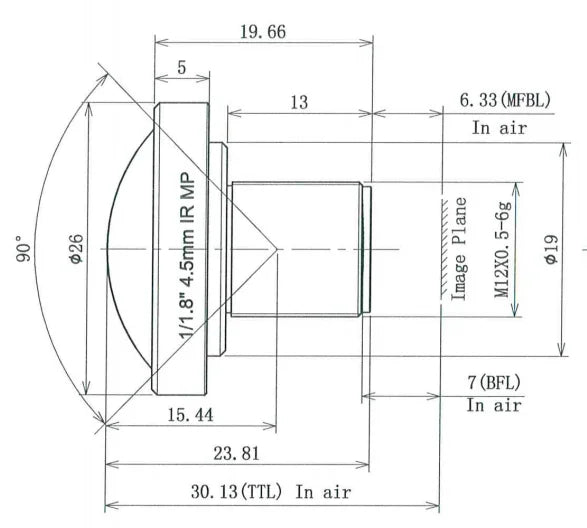

  • LS-MBL-0157 dimensions (mm)

M12 board lenses

4.5 mm, 1/1.8", 2 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0157)

Model LS-MBL-0157

  • Focal length4.5 mm
  • MountM12
  • Sensor1/1.8"
  • ApertureF1.8 Fixed iris
  • Resolution2.0 Megapixel
$89.00

Ships in 2-3 weeks

0.12 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

4.5 mm, 1/1.8", 2 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0157)LS-MBL-0157

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

4.5 mm, 1/1.8", 2 MP, M12-mount Low-Distortion M12 Lens. High resolution: 2 megapixel covering 1080P. Large format: 1/1.8" size covering 1/2", 1/2.5", 1/2.7" camera. Low distortion: <-2.8% super low distortion. At a glance: focal length 4.5 mm; format 1/1.8" (Max image circle dia. 9 mm); resolution 2.0 Megapixel; aperture F1.8 Fixed iris; mount M12 x 0.5.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-MBL-0157
Format1/1.8" (Max image circle dia. 9 mm)
IR correctionIR
Angle of view (1/1.8")90 x 79 x 63 deg
CRA9.0°
Notes8G

Optics

Focal length4.5 mm
ApertureF1.8 Fixed iris
M.O.D.0.3 m
Distortion<-2.8%
Back focal length7.0 mm
Relative illumination>50%

Sensor and imaging

Resolution2.0 Megapixel

Mechanical

Sizedia. 26 x 23.81 mm
Optical total length30.13 mm
MountM12 x 0.5
Weight15 g
Shipping weight (estimated)0.12 kg
