6 mm, 1/1.8", 5 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0135)
  • 6 mm, 1/1.8", 5 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0135)

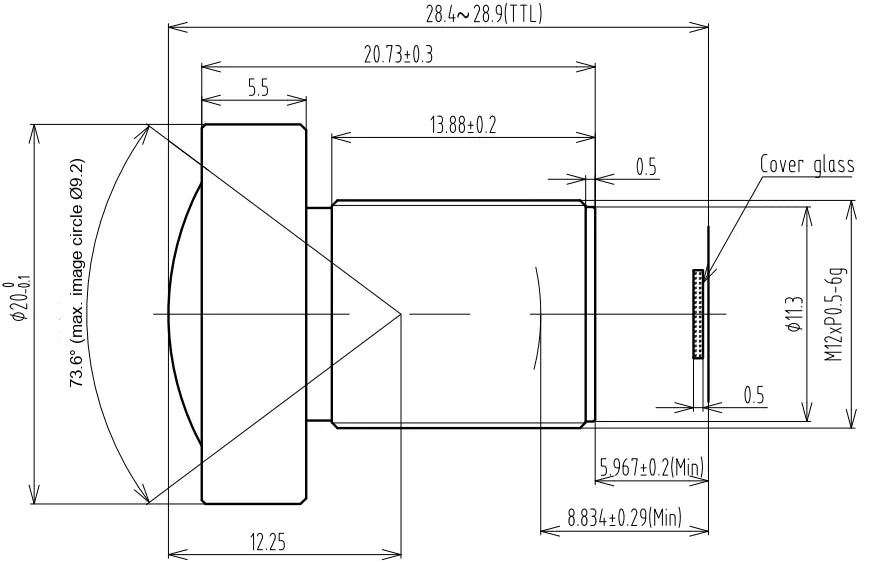

  • LS-MBL-0135 dimensions (mm)

M12 board lenses

6 mm, 1/1.8", 5 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0135)

Model LS-MBL-0135

  • Focal length6.0 mm
  • MountM12
  • Sensor1/1.8"
  • ApertureF2.8 Fixed Iris
  • Resolution5.0 MP
$89.00

Ships in 2-3 weeks

0.11 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

6 mm, 1/1.8", 5 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0135)LS-MBL-0135

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

6 mm, 1/1.8", 5 MP, M12-mount Low-Distortion M12 Lens. 6 mm, 1/1.8" 5 MP M12 (S-mount) lens with <0.5% distortion, F2.8; small size. Covers 1/1.8", 1/2" and 1/2.5" cameras for video conferencing, UAV, scanners, sports DV and machine vision. At a glance: focal length 6.0 mm; format 1/1.8"; resolution 5.0 MP; aperture F2.8 Fixed Iris; mount M12.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-MBL-0135
Format1/1.8"
Angle of view (1/1.8", DxHxV)72 x 60.6 x 46.6 deg
Angle of view (1/1.8")73 x 61 x 47 deg
Angle of view (1/3")52 x 42.4 x 32.4 deg

Optics

Focal length6.0 mm
ApertureF2.8 Fixed Iris
M.O.D.0.1 m
TTL28.4 mm
Distortion<0.5%
Relative illumination60%
Total track length (TTL)28.4 mm
Distortion TV<0.5% ( <0.4% @ 1/3" )
Back focal length8.834 mm

Sensor and imaging

Resolution5.0 MP

Mechanical

Sizedia. 20 x 22.04 mm
MountM12
Weight8 g
Object size (W.D=300 mm)450.7 x 360.5 x 270.4 mm
Shipping weight (estimated)0.11 kg
