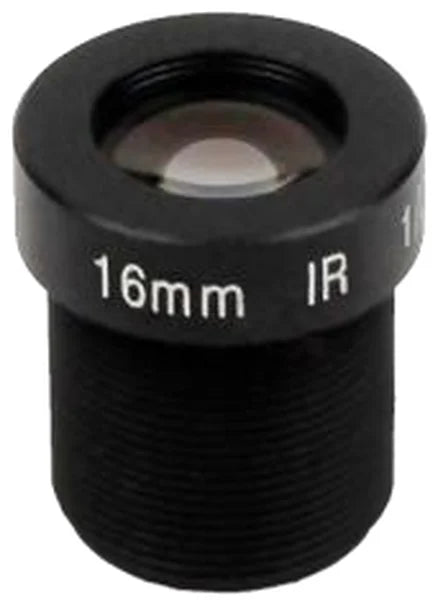

16 mm, 1/2", 5 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0126)
Model LS-MBL-0126
- Focal length16 mm
- MountM12
- Sensor1/2"
- ApertureF2.0 fixed iris
- Resolution5.0 MP
$89.00
Ships in 2-3 weeks
0.11 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
16 mm, 1/2", 5 MP, M12-mount Low-Distortion M12 Lens. 16 mm 1/2" 5 MP M12 (S-mount) lens with -2.5% distortion for CCTV, machine vision, face recognition and video-conference cameras. At a glance: focal length 16 mm; format 1/2"; resolution 5.0 MP; aperture F2.0 fixed iris; mount M12.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MBL-0126 |
|---|---|
| Format | 1/2" |
| IR correction | IR |
| Angle of view (1/2", DxHxV) | 29 x 23 x 17.5 deg |
| Angle of view (1/3", DxHxV) | 22 x 17.6 x 13.2 deg |
Optics
| Focal length | 16 mm |
|---|---|
| Aperture | F2.0 fixed iris |
| M.O.D. | 0.3 m |
| Distortion | -2.5% |
| TTL | 22.5 mm |
| Back focal length | 6.7 mm |
Sensor and imaging
| Resolution | 5.0 MP |
|---|

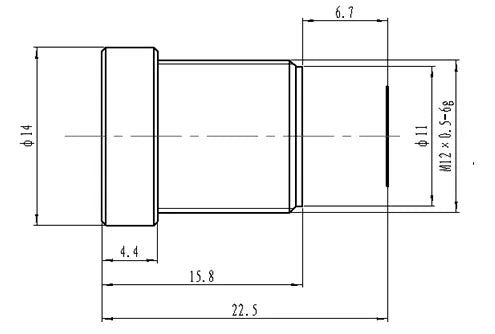

Mechanical
| Size | dia. 14 x 15.8 mm |
|---|---|
| Mount | M12 |
| Weight | 8 g |
| Shipping weight (estimated) | 0.11 kg |
