M12 board lenses
35 mm, 2/3", 5 MP, M12-mount Low-Distortion M12 Lens (LS-MBL-0124)
Model LS-MBL-0124
- Focal length35 mm
- MountM12
- Sensor2/3"
- ApertureF1.8 Fixed iris
- Resolution5.0 Megapixel
$89.00
Ships in 2-3 weeks
0.12 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
35 mm, 2/3", 5 MP, M12-mount Low-Distortion M12 Lens. High resolution: 5 megapixel covering all 5MP & 1080P. Large format: 2/3" size covering 2/3", 1/1.8", 1/2" camera. Low distortion: <0.05% super low distortion. At a glance: focal length 35 mm; format 2/3"; resolution 5.0 Megapixel; aperture F1.8 Fixed iris; mount M12 x P0.5.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MBL-0124 |
|---|---|
| Format | 2/3" |
| Angle of view (2/3", HxV) | 14.3 x 10.8 deg |
| Angle of view (1/1.8", HxV) | 11.7 x 8.8 deg |
| Angle of view (1/1.8", HxV, second row as printed) | 10.4 x 7.8 deg |
| Notes | 6G |
Optics
| Focal length | 35 mm |
|---|---|
| Back focal length | 5.5 mm |
| Aperture | F1.8 Fixed iris |
| M.O.D. | 0.35 m |
| Distortion | 0.05% |
Sensor and imaging
| Resolution | 5.0 Megapixel |
|---|
Mechanical

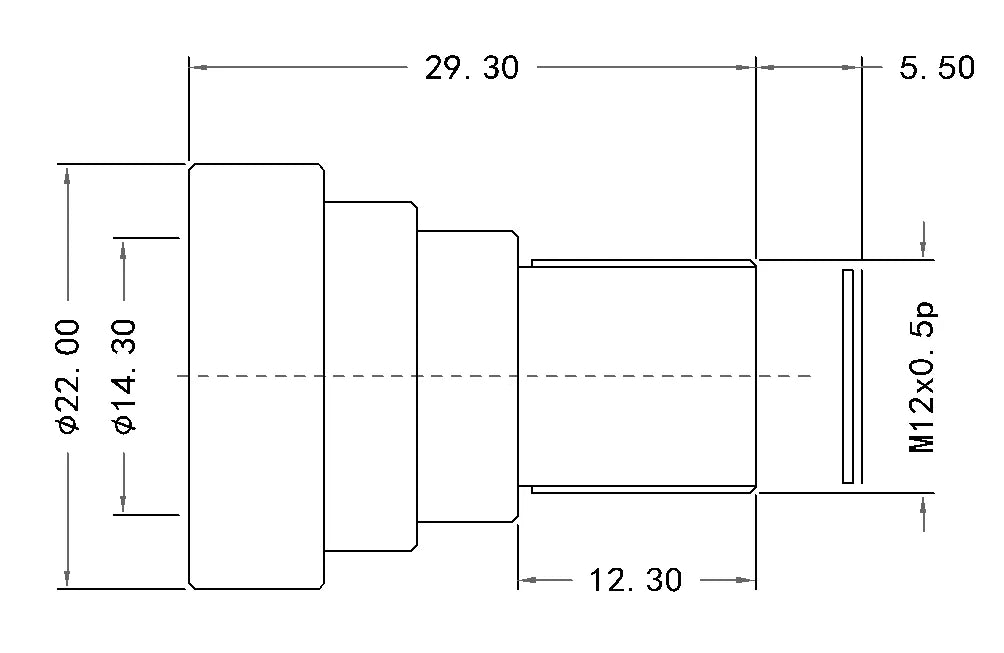

| Size | dia. 20.2 x 29.3 mm |
|---|---|
| Optical total length | 30 mm |
| Mount | M12 x P0.5 |
| Weight | 16 g |
| Shipping weight (estimated) | 0.12 kg |
Photo shows a representative model of this series; see the specifications for this model.
