8 mm, 1/1.8", 5 MP, M12-mount Low-Distortion M12 Lens, F1.8 fixed iris (LS-MBL-0136)
  • 8 mm, 1/1.8", 5 MP, M12-mount Low-Distortion M12 Lens, F1.8 fixed iris (LS-MBL-0136)

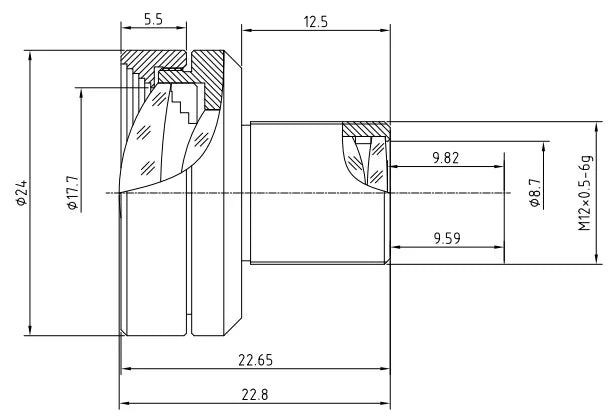

  • LS-MBL-0136 dimensions (mm)

M12 board lenses

8 mm, 1/1.8", 5 MP, M12-mount Low-Distortion M12 Lens, F1.8 fixed iris (LS-MBL-0136)

Model LS-MBL-0136

  • Focal length8.0 mm
  • MountM12
  • Sensor1/1.8"
  • ApertureF1.8 fixed iris
  • Resolution5.0 MP
$89.00

Ships in 2-3 weeks

0.12 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

8 mm, 1/1.8", 5 MP, M12-mount Low-Distortion M12 Lens, F1.8 fixed iris (LS-MBL-0136)LS-MBL-0136

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

8 mm, 1/1.8", 5 MP, M12-mount Low-Distortion M12 Lens. 8.0 mm 1/1.8" 5 MP lens with -1% distortion for machine vision, face recognition, scanning and video cameras; covers 1/1.8", 1/2" and 1/2.5" sensors. At a glance: focal length 8.0 mm; format 1/1.8"; resolution 5.0 MP; aperture F1.8 fixed iris; mount M12.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-MBL-0136
Format1/1.8"
IR correctionIR
Angle of view (1/1.8", DxHxV)60 x 50 x 38 deg

Optics

Focal length8.0 mm
ApertureF1.8 fixed iris
M.O.D.0.2 m
Distortion-1%
TTL32.62

Sensor and imaging

Resolution5.0 MP

Mechanical

Sizedia. 24 x 22.8 mm
MountM12
Weight15 g
Shipping weight (estimated)0.12 kg
